Configure
- Length(mm)
- 100
- 125
- 150
- 175
- 200
- 250
- 300
- 400
- 500
- Mass(g)
- 189
- 228
- 275
- 322
- 370
- 464
- 748
- 937
- Type
- Est. shipping days
- All
- Within 60 working days

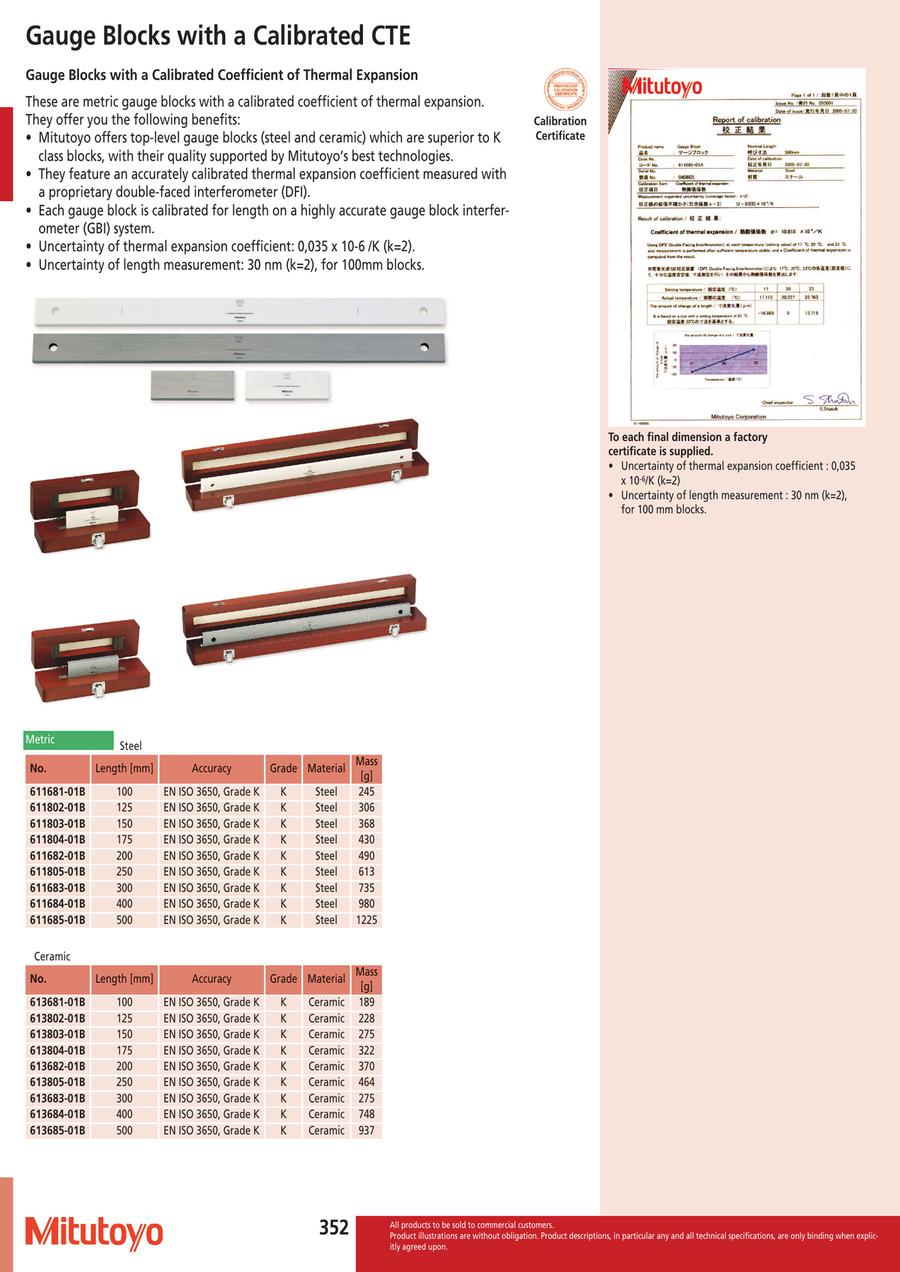

Gauge Block, Calibrated CTE, ISO, Ceramic
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
2,935.00 € ( 3,492.65 € ) | 60 working days |
4,800.00 € ( 5,712.00 € ) | 60 working days |
7,040.00 € ( 8,377.60 € ) | 60 working days |
8,608.00 € ( 10,243.52 € ) | 60 working days |
9,312.00 € ( 11,081.28 € ) | 60 working days |
4,032.00 € ( 4,798.08 € ) | 60 working days |
4,320.00 € ( 5,140.80 € ) | 60 working days |
4,512.00 € ( 5,369.28 € ) | 60 working days |
6,176.00 € ( 7,349.44 € ) | 60 working days |
More Information
Basic information
They offer you the following benefits:
- Mitutoyo offers top-level gauge blocks (steel and ceramic) which are superior to K class blocks, with their quality supported by Mitutoyo‘s best technologies.
- They feature an accurately calibrated thermal expansion coefficient measured with a proprietary double-faced interferometer (DFI).
- Each gauge block is calibrated for length on a highly accurate gauge block interferometer (GBI) system.
- Uncertainty of thermal expansion coefficient: 0.035 x 10-6 /K (k=2).
- Uncertainty of length measurement: 30 nm (k=2), for 100mm blocks.
