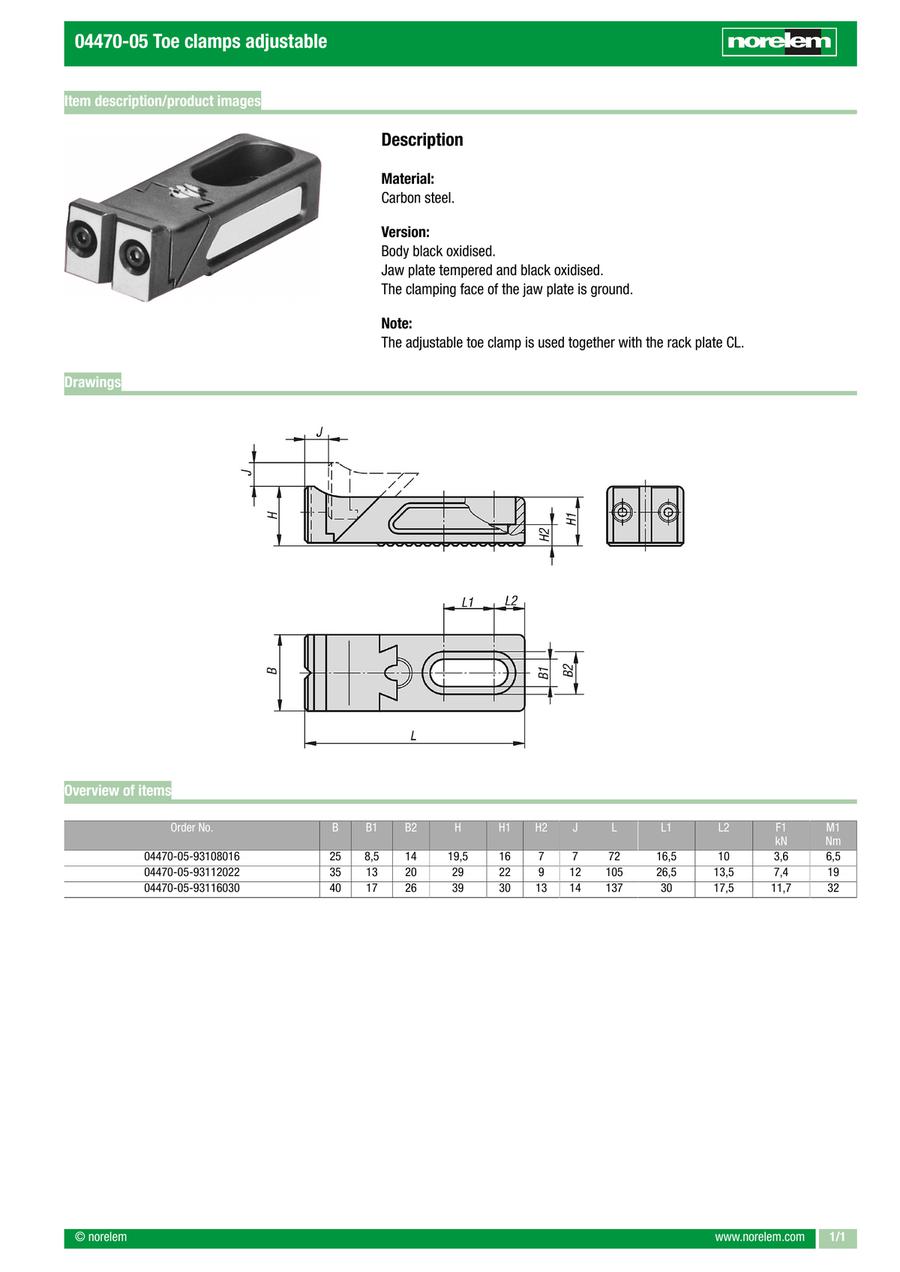

Toe clamp adjustable, form B ground, carbon steel (04470)
· Low height, no protruding edges
· Ground clamping face
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 04470-05-93108016 |
| 04470-05-93112022 |
| 04470-05-93116030 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | B=Width (mm) | B1 (mm) | B2 (mm) | F1 (kN) | F2 (kN) | H (mm) | H1 (mm) | H2 (mm) | J (mm) | L=Length (mm) | L1 (mm) | L2 (mm) | M1 (Nm) | M2 (Nm) | Weight (ERP) (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
167.21 € | 1 | 4 Days | 25 | 8.5 | 14 | 3.6 | 4 | 19.5 | 16 | 7 | 7 | 72 | 16.5 | 10 | 6.5 | 8 | 0.1657 | ||
242.92 € | 1 | 4 Days | 35 | 13 | 20 | 7.4 | 10.4 | 29 | 22 | 9 | 12 | 105 | 26.5 | 13.5 | 19 | 26 | 0.4415 | ||
351.02 € | 1 | 4 Days | 40 | 17 | 26 | 11.7 | 24 | 39 | 30 | 13 | 14 | 137 | 30 | 17.5 | 32 | 60 | 0.9346 |
Loading...
Basic information
| Application | machined | Component material | high carbon steel | Form | B |
|---|---|---|---|---|---|
| Item | Toe Clamp | Kind of fastening | elongated holes | Main material | high carbon steel |
| Surface finish body | black oxidised | Surface finish component | tempered, black oxidised | Version 1 | adjustable |
