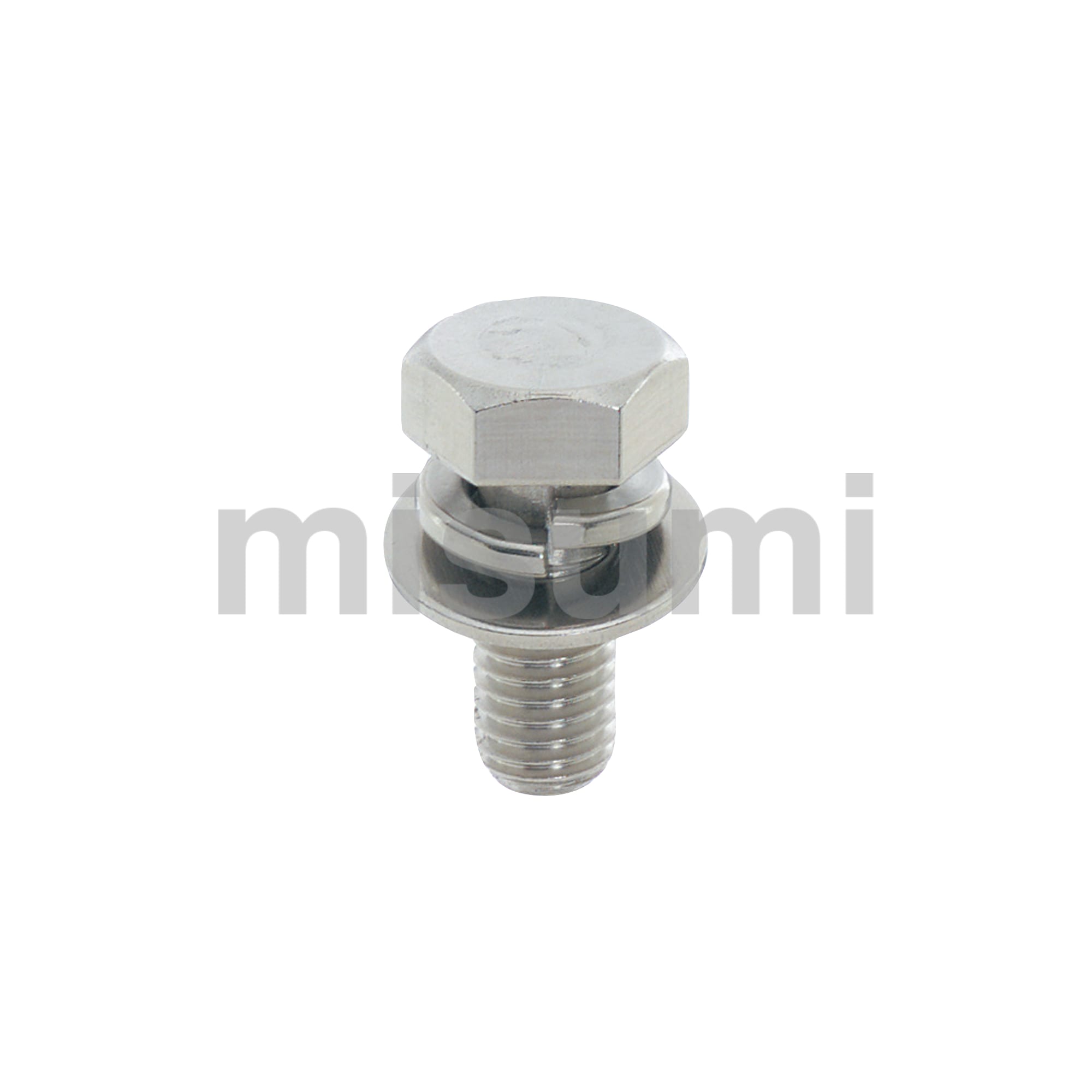

Hexagonal Captive Screw with Spring Washer(Part number list: 2 page)
Mouse over image to enlarge
Caution
- Since it is made of stainless steel, it has excellent corrosion resistance, but it is not suitable for use in a chlorine environment or a salt environment such as near the coast.
Part number:
possible part numbers found.Outline drawing and specifications table
[M]Material: EN 1.4301 Equiv.
[H]Strength Class: A2-50
[H]Strength Class: A2-50
Specification Table
| Part Number |
| XSETS6-20 XSETS8-25 |
| M × P | Bolt Body | Spring Washer | Flat Washer | ||||||
| E | Tolerance | A | Tolerance | e (Approx.) | (a) Max. | d1 (Max.) | D1 | t | |
| 3 × 0.5 | 2.0 | ±0.1 | 5.5 | 0 −0.2 | 6.40 | 3.0 | 5.5 | 8 | 0.5 |
| 4 × 0.7 | 2.8 | 7.0 | 8.10 | 4.4 | 7.0 | 10 | 0.8 | ||
| 5 × 0.8 | 3.5 | ±0.15 | 8.0 | 9.20 | 5.4 | 8.5 | 12 | ||
| 6 × 1.0 | 4.0 | 10.0 | 11.50 | 6.9 | 11.5 | 13 | 1.0 | ||
| 8 × 1.25 | 5.5 | 13.0 | 0 −0.25 | 15.00 | 8.4 | 14.5 | 18 | 1.6 | |
| 10 × 1.5 | 7.0 | ±0.2 | 17.0 | 19.60 | 10.4 | 17.5 | 22 | ||
| 12 × 1.75 | 8.0 | 19.0 | 0 −0.35 | 21.90 | 12.5 | 20.5 | 26 | 2.3 | |
| 16 × 2.0 | 10.0 | 24.0 | 27.70 | 16.5 | 26.5 | 32 | 2.6 | ||
| 20 × 2.5 | 13.0 | ±0.35 | 30.0 | 0 −0.8 | 34.60 | 21.0 | 33.8 | 40 | 3.0 |
[ ! ] Since it is made of stainless steel, it has excellent corrosion resistance, but it is not suitable for use in a chlorine environment or a salt environment such as near the coast.
| Part Number | |
| Type | M−L |
| XSETS | 3-6 |
| 8 | |
| 10 | |
| 12 | |
| 14 | |
| 15 | |
| 16 | |
| 18 | |
| 20 | |
| 25 | |
| 30 | |
| 4− 6 | |
| 8 | |
| 10 | |
| 12 | |
| 14 | |
| 15 | |
| 16 | |
| 18 | |
| 20 | |
| 25 | |
| 30 | |
| 35 | |
| 40 | |
| 50 | |
| 5− 8 | |
| 10 | |
| 12 | |
| 14 | |
| 15 | |
| 16 | |
| 18 | |
| 20 | |
| 25 | |
| 30 | |
| 35 | |
| 40 | |
| 45 | |
| 50 | |
| 55 | |
| 60 | |
| XSETS | 6−10 |
| 12 | |
| 14 | |
| 15 | |
| 16 | |
| 18 | |
| 20 | |
| 22 | |
| 25 | |
| 30 | |
| 35 | |
| 40 | |
| 45 | |
| 50 | |
| 55 | |
| 60 | |
| 65 | |
| 70 | |
| 75 | |
| 80 | |
| 8−12 | |
| 14 | |
| 15 | |
| 16 | |
| 18 | |
| 20 | |
| 22 | |
| 25 | |
| 30 | |
| 35 | |
| 40 | |
| 45 | |
| 50 | |
| 55 | |
| 60 | |
| 65 | |
| 70 | |
| 75 | |
| 80 | |
| 85 | |
| 90 | |
| 100 | |
| XSETS | 10-15 |
| 16 | |
| 18 | |
| 20 | |
| 22 | |
| 25 | |
| 28 | |
| 30 | |
| 35 | |
| 40 | |
| 45 | |
| 50 | |
| 55 | |
| 60 | |
| 65 | |
| 70 | |
| 75 | |
| 80 | |
| 100 | |
| 12-20 | |
| 25 | |
| 30 | |
| 35 | |
| 40 | |
| 45 | |
| 50 | |
| 55 | |
| 60 | |
| 65 | |
| 70 | |
| 75 | |
| 16－25 | |
| 30 | |
| 35 | |
| 40 | |
| 45 | |
| 50 | |
| 20－40 | |
| 45 | |
| 50 | |
| 60 | |
| 70 | |
Part number list
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
0.90 € ( 1.07 € ) | 5 working days |
1.41 € ( 1.68 € ) | 5 working days |
1.40 € ( 1.67 € ) | 5 working days |
1.41 € ( 1.68 € ) | 5 working days |
1.41 € ( 1.68 € ) | 5 working days |
1.41 € ( 1.68 € ) | 5 working days |
1.41 € ( 1.68 € ) | 5 working days |
1.41 € ( 1.68 € ) | 5 working days |
1.41 € ( 1.68 € ) | 5 working days |
1.41 € ( 1.68 € ) | 5 working days |
1.41 € ( 1.68 € ) | 5 working days |
1.42 € ( 1.69 € ) | 5 working days |
1.42 € ( 1.69 € ) | 5 working days |
1.42 € ( 1.69 € ) | 5 working days |
1.42 € ( 1.69 € ) | 5 working days |
1.42 € ( 1.69 € ) | 5 working days |
1.43 € ( 1.70 € ) | 5 working days |
1.43 € ( 1.70 € ) | 5 working days |
1.43 € ( 1.70 € ) | 5 working days |
1.43 € ( 1.70 € ) | 5 working days |
1.43 € ( 1.70 € ) | 5 working days |
1.96 € ( 2.33 € ) | 5 working days |
2.10 € ( 2.50 € ) | 5 working days |
1.85 € ( 2.20 € ) | 5 working days |
1.85 € ( 2.20 € ) | 5 working days |
1.86 € ( 2.21 € ) | 5 working days |
1.86 € ( 2.21 € ) | 5 working days |
1.86 € ( 2.21 € ) | 5 working days |
1.86 € ( 2.21 € ) | 5 working days |
1.86 € ( 2.21 € ) | 5 working days |
1.86 € ( 2.21 € ) | 5 working days |
1.87 € ( 2.23 € ) | 5 working days |
1.94 € ( 2.31 € ) | 5 working days |
1.87 € ( 2.23 € ) | 5 working days |
1.88 € ( 2.24 € ) | 5 working days |
2.15 € ( 2.56 € ) | 5 working days |
2.26 € ( 2.69 € ) | 5 working days |
2.38 € ( 2.83 € ) | 5 working days |
2.87 € ( 3.42 € ) | 5 working days |
2.98 € ( 3.55 € ) | 5 working days |
3.07 € ( 3.65 € ) | 5 working days |
3.49 € ( 4.15 € ) | 5 working days |
4.05 € ( 4.82 € ) | 5 working days |
4.05 € ( 4.82 € ) | 5 working days |
4.06 € ( 4.83 € ) | 5 working days |
4.06 € ( 4.83 € ) | 5 working days |
4.06 € ( 4.83 € ) | 5 working days |
4.06 € ( 4.83 € ) | 5 working days |
4.07 € ( 4.84 € ) | 5 working days |
5.62 € ( 6.69 € ) | 5 working days |
6.12 € ( 7.28 € ) | 5 working days |
6.39 € ( 7.60 € ) | 5 working days |
6.61 € ( 7.87 € ) | 5 working days |
6.91 € ( 8.22 € ) | 5 working days |
8.30 € ( 9.88 € ) | 5 working days |
7.16 € ( 8.52 € ) | 5 working days |
7.01 € ( 8.34 € ) | 5 working days |
7.28 € ( 8.66 € ) | 5 working days |
7.35 € ( 8.75 € ) | 5 working days |
7.81 € ( 9.29 € ) | 5 working days |
More Information
Basic information
· [New Product]In response to many requests, M diameter (M3 to M20) of hex trim type has been added. * For details, see the specification table or PDF catalog.
·A spring washer and a flat washer are assembled into the hex bolts to prevent them from falling off.
·No need to insert washers, which makes it possible to improve work efficiency.
Caution
- Since it is made of stainless steel, it has excellent corrosion resistance, but it is not suitable for use in a chlorine environment or a salt environment such as near the coast.
