Pressed Steel Swivel Castor, LE-PO Series(Part number list: 3 page)

Configure

Caster Type
Mounting Height H(mm)
- 80
- 100
- 102
- 125
- 150
- 190
- 195
- 213
- 235
Load Range(daN)
- 140.01 to 220.00
- 220.01 to 320.00
Wheel Characteristics
- Conductivity
Plate Length L(mm)
- 100
- 140
Plate Width W(mm)
- 85
- 110
Wheel Dia. D(mm)
- 60
- 75
- 80
- 100
- 125
- 150
- 160
- 175
- 200
Wheel Width B(mm)
- 29
- 32
- 37
- 40
- 50
Bearing type
Product type
- swivel castor
- swivel castor with brake
Total height(mm)
- 80
- 100
- 102
- 125
- 150
- 190
- 195
- 213
- 235
Weight(g)
- 481
- 484
- 495
- 498
- 508
- 514
- 516
- 522
- 529
- 538
- 541
- 548
- 549
- 554
- 562
- 565
- 570
- 572
- 587
- 592
- 598
- 605
- 614
- 615
- 617
- 622
- 624
- 625
- 632
- 642
- 650
- 651
- 655
- 664
- 668
- 669
- 682
- 690
- 692
- 704
- 714
- 718
- 724
- 725
- 727
- 739
- 742
- 748
- 750
- 794
- 798
- 820
- 831
- 832
- 862
- 870
- 874
- 880
- 882
- 894
- 897
- 980
- 1006
- 1018
- 1024
- 1039
- 1535
- 1611
- 1620
- 1631
- 1681
- 1740
- 1750
- 1820
- 1831
- 1840
- 1850
- 1870
- 1891
- 1895
- 1914
- 1940
- 1948
- 1951
- 1955
- 1967
- 1995
- 2000
- 2016
- 2025
- 2040
- 2060
- 2064
- 2070
- 2080
- 2140
- 2146
- 2161
- 2170
- 2185
- 2200
- 2224
- 2225
- 2233
- 2234
- 2249
- 2250
- 2280
- 2285
- 2300
- 2350
- 2365
- 2372
- 2378
- 2401
- 2432
- 2490
- 2492
- 2576
- 2587
- 2626
- 2662
- 2714
- 2720
- 2820
- 2916
- 2970
- 3143
Wheel diameter(mm)
- 60
- 75
- 80
- 100
- 125
- 150
- 160
- 175
- 200
Wheel width(mm)
- 29
- 32
- 37
- 40
- 50
Tread color
- grey
- natural white
Wheel body color
- grey
- natural white
Minimum temperature resistance(°C)
- -25
- -20
Load capacity at 4 km/h(kg)
- 150
- 300
Load capacity at 3 km/h(kg)
- 150
Type
- LE-PO
Est. shipping days
- All
- Within 5 working days
- Within 7 working days
- Within 23 working days

Pressed Steel Swivel Castor, LE-PO Series(Part number list: 3 page)

Catalog

Part number:

Still undefined. 138 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Caster Type

Mounting Height H

(mm)

Load Range

(daN)

Wheel Characteristics

Plate Length L

(mm)

Plate Width W

(mm)

Wheel Dia. D

(mm)

Wheel Width B

(mm)

Bearing type

Product type

Total height

(mm)

Weight

(g)

Wheel diameter

(mm)

Wheel width

(mm)

Tread color

Wheel body color

Minimum temperature resistance

(°C)

Load capacity at 4 km/h

(kg)

Load capacity at 3 km/h

(kg)

Minimum order quantity

Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	80	220.01 to 320.00	-	140	110	60	29	plain bore	swivel castor	235	1870	200	50	natural white	natural white	-25	300	-	1 pieces
Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	80	220.01 to 320.00	-	140	110	60	32	plain bore	swivel castor	235	1914	200	50	grey	grey	-25	300	-	1 pieces
Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	80	220.01 to 320.00	-	140	110	60	32	plain bore	swivel castor	235	2626	200	50	grey	grey	-25	300	-	1 pieces
Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	100	220.01 to 320.00	-	140	110	75	32	plain bore	swivel castor	235	2350	200	50	natural white	natural white	-25	300	-	1 pieces
Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	100	220.01 to 320.00	-	140	110	75	32	plain bore	swivel castor with brake	235	2365	200	50	natural white	natural white	-25	300	-	1 pieces
Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	100	220.01 to 320.00	-	140	110	75	32	plain bore	swivel castor with brake	235	2662	200	50	grey	grey	-25	300	-	1 pieces
Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	100	220.01 to 320.00	-	140	110	75	32	plain bore	swivel castor with brake	235	3143	200	50	grey	grey	-25	300	-	1 pieces
Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	100	220.01 to 320.00	-	140	110	75	32	plain bore	swivel castor with brake	235	2820	200	50	natural white	natural white	-25	300	-	1 pieces
Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	100	220.01 to 320.00	-	140	110	75	32	plain bore	swivel castor with brake	235	2170	200	50	natural white	natural white	-25	300	-	1 pieces
Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	100	220.01 to 320.00	-	140	110	75	32	plain bore	swivel castor with brake	235	2432	200	50	grey	grey	-25	300	-	1 pieces
Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	100	220.01 to 320.00	-	140	110	75	32	plain bore	swivel castor with brake	235	2916	200	50	grey	grey	-25	300	-	1 pieces
Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	102	220.01 to 320.00	-	140	110	80	32	plain bore	swivel castor with brake	235	2587	200	50	natural white	natural white	-25	300	-	1 pieces
Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	102	220.01 to 320.00	Conductivity	140	110	80	32	roller bearing	swivel castor	235	1948	200	50	natural white	natural white	-25	300	-	1 pieces
Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	102	220.01 to 320.00	Conductivity	140	110	80	32	roller bearing	swivel castor	235	1895	200	50	natural white	natural white	-25	300	-	1 pieces
Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	102	220.01 to 320.00	-	140	110	80	32	roller bearing	swivel castor with brake	235	2490	200	50	natural white	natural white	-25	300	-	1 pieces
Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	102	220.01 to 320.00	-	140	110	80	32	roller bearing	swivel castor with brake	235	2970	200	50	natural white	natural white	-25	300	-	1 pieces
Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	102	220.01 to 320.00	Conductivity	140	110	80	32	roller bearing	swivel castor with brake	235	2250	200	50	natural white	natural white	-25	300	-	1 pieces
Plate Type Swivel / Screw-In Type / Resin / Through Hole Type / Rotation Type	102	220.01 to 320.00	Conductivity	140	110	80	32	roller bearing	swivel castor with brake	235	2714	200	50	natural white	natural white	-25	300	-	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

76.99 € ( 91.62 € )	5 working days
118.32 € ( 140.80 € )	7 working days
131.45 € ( 156.43 € )	23 working days
90.11 € ( 107.23 € )	7 working days
103.10 € ( 122.69 € )	5 working days
144.44 € ( 171.88 € )	7 working days
157.56 € ( 187.50 € )	23 working days
116.23 € ( 138.31 € )	7 working days
101.35 € ( 120.61 € )	7 working days
142.68 € ( 169.79 € )	23 working days
155.82 € ( 185.43 € )	23 working days
114.48 € ( 136.23 € )	7 working days
81.38 € ( 96.84 € )	5 working days
94.50 € ( 112.45 € )	7 working days
107.48 € ( 127.90 € )	5 working days
120.62 € ( 143.54 € )	7 working days
105.73 € ( 125.82 € )	7 working days
118.87 € ( 141.46 € )	7 working days

More Information

Basic information

Basic information

Pressed Steel Swivel Castor, with Top Plate Fitting, Nylon Wheel

Bracket: LE series

pressed steel, zinc-plated, blue-passivated, Cr6-free
double ball bearing in the swivel head
swivel head seal
minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Wheel: PO series

high-quality nylon 6, impact resistant, hardness 70 Shore D, colour natural white

Other features:

high chemical resistance to many aggressive substances
operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C

Catalog

Products homepage

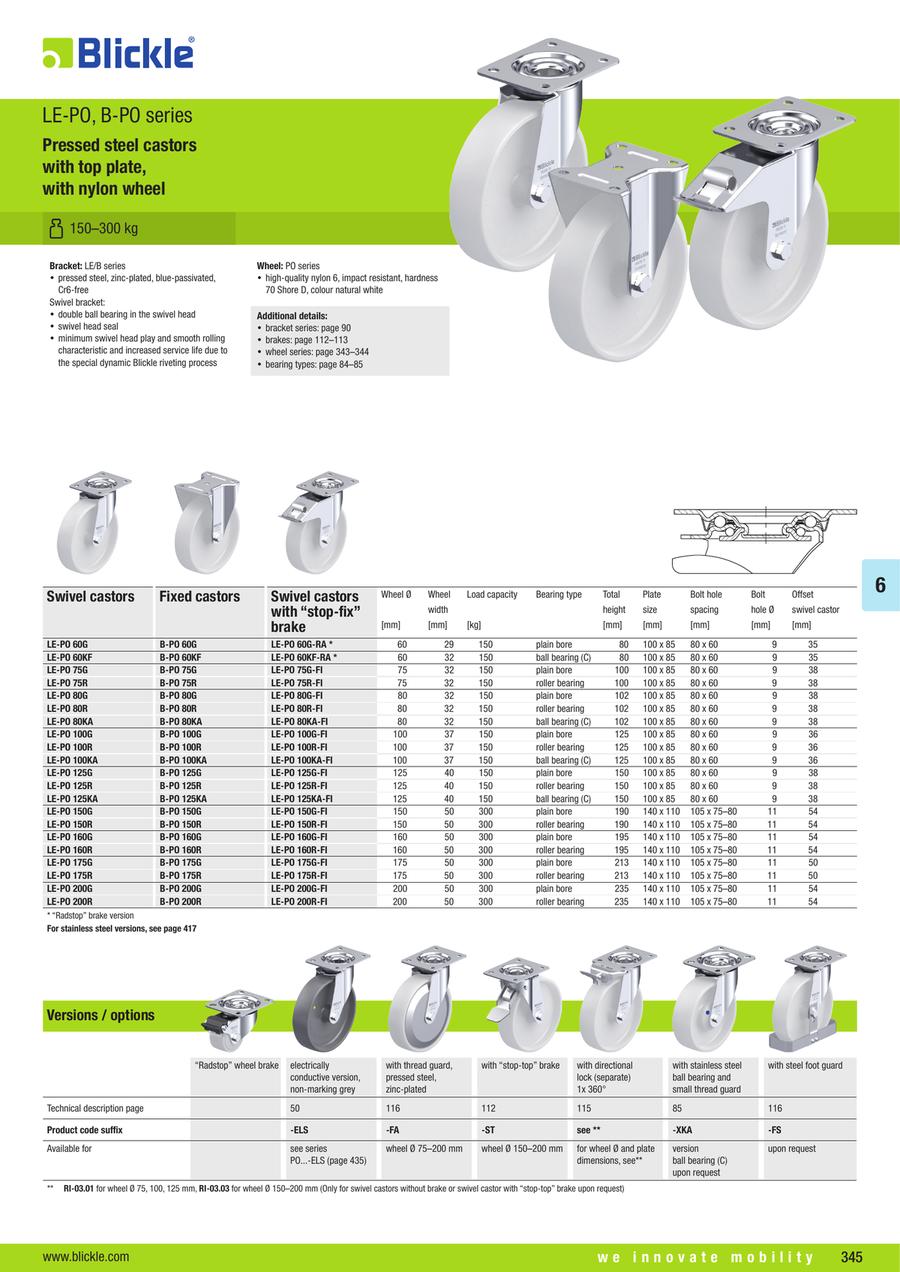

Catalog (2-page spread)
