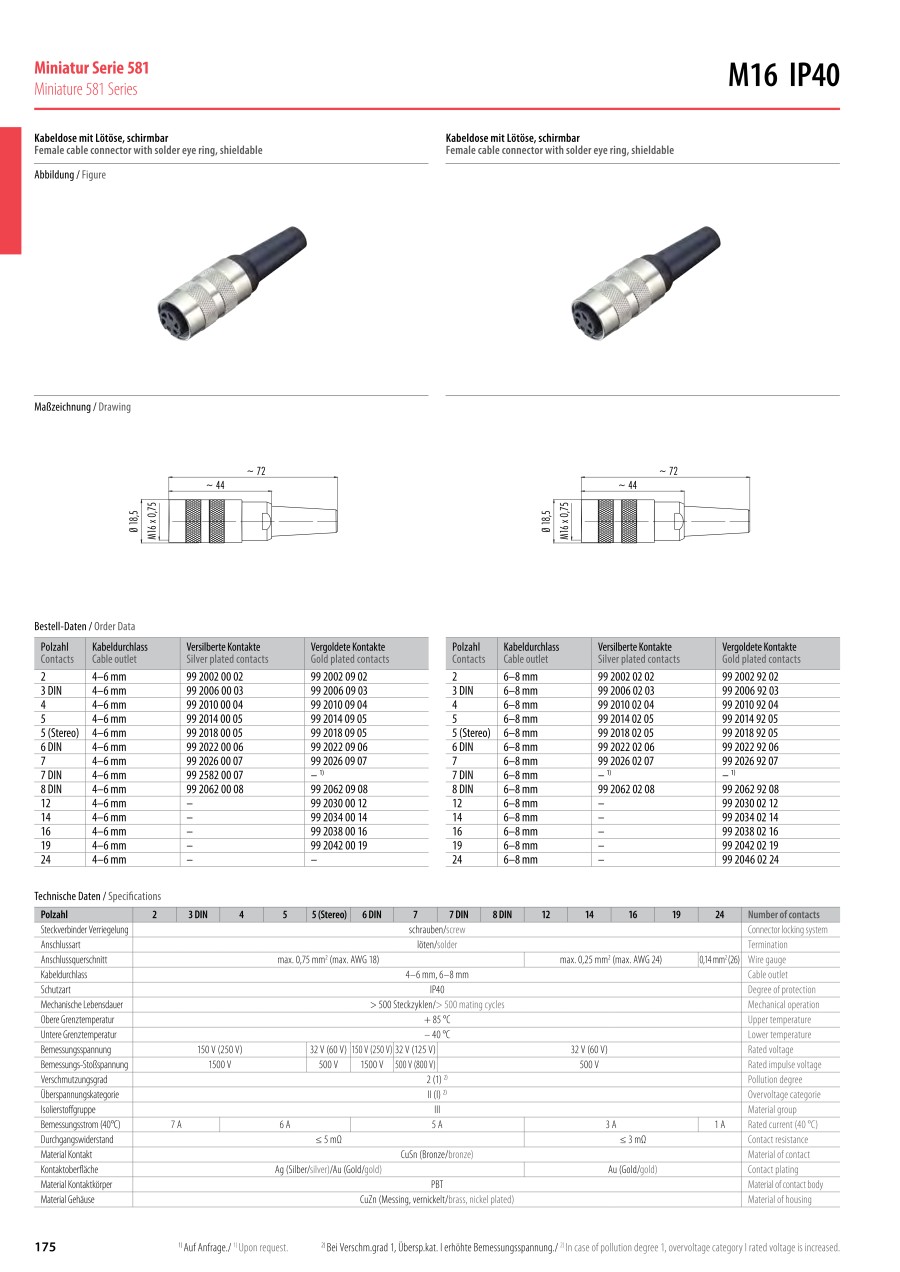

Female cable connector with solder eye, shieldable, cable outlet 4-6 mm
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 99 2006 00 03 |
| 99 2006 02 03 |
| 99 2010 02 04 |
| 99 2014 00 05 |
| 99 2014 02 05 |
| 99 2018 00 05 |
| 99 2022 00 06 |
| 99 2022 02 06 |
| 99 2026 00 07 |
| 99 2026 02 07 |
| 99 2030 00 12 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Nominal current (A) | Nominal voltage (V) | AWG | Cable diameter (mm) | Cable Ø (max.) (mm) | Cable Ø (min.) (mm) | Connector cross section (mm²) | Cross section (mm²) | Cross section (max.) (mm²) | Cross-section range | Max. temperature (°C) | Min. temperature (°C) | Number of pins | Total number of pins | Nominal current (details) (A) | Nominal voltage (details) (V) | Connector type | Contact material | Type (misc.) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
9.99 € | 1 | Available | 3 Days | 7 | 250 | 20 | 4 - 6 | 6 | 4 | Max 0.75 | 0.75 | 0.75 | 0.75 mm² (max) | +90 | -40 | 3 DIN | 3 | 5 | 250 | Socket | Silver plated | Cable socket | ||
11.61 € | 1 | Available | 3 Days | 3 | 60 | 20 | - | 8 | 6 | - | - | 0.75 | 0.75 mm² (max) | +70 | -20 | 3 | 3 | - | - | Connector | Silver plated | - | ||
11.61 € | 1 | Available | 3 Days | 1 | 125 | 20 | - | 8 | 6 | - | - | 0.75 | 0.75 mm² (max) | +85 | -40 | 4 | 4 | - | - | Connector | Silver plated | - | ||
11.61 € | 1 | Available | 3 Days | 6 | 250 | 20 | 4 - 6 | 6 | 4 | Max 0.75 | 0.75 | 0.75 | 0.75 mm² (max) | +90 | -40 | 5 DIN | 5 | 5 | 250 | Socket | Silver plated | Cable socket | ||
11.61 € | 1 | Available | 3 Days | 3 | 125 | 20 | - | 8 | 6 | - | - | 0.75 | 0.75 mm² (max) | +85 | -25 | 5 | 5 | - | - | Connector | Silver plated | - | ||
11.61 € | 1 | Available | 3 Days | 6 | 60 | 20 | 4 - 6 | 6 | 4 | Max 0.75 | 0.75 | 0.75 | 0.75 mm² (max) | +90 | -40 | 5 Stereo-DIN | 5 | 5 | 60 | Socket | Silver plated | Cable socket | ||
11.61 € | 1 | Available | 3 Days | 5 | 250 | 20 | 4 - 6 | 6 | 4 | Max 0.75 | 0.75 | 0.75 | 0.75 mm² (max) | +90 | -40 | 6 DIN | 6 | 5 | 250 | Socket | Silver plated | Cable socket | ||
12.67 € | 1 | Available | 3 Days | 3 | 60 | 20 | - | 8 | 6 | - | - | 0.75 | 0.75 mm² (max) | +70 | -20 | 6 | 6 | - | - | Connector | Silver plated | - | ||
12.67 € | 1 | Available | 4 Days | 5 | 125 | 20 | 4 - 6 | 6 | 4 | Max 0.75 | 0.75 | 0.75 | 0.75 mm² (max) | +90 | -40 | 7 | 7 | 5 | 250 | Socket | Silver plated | Cable socket | ||
13.75 € | 1 | Available | 3 Days | 1 | 125 | 20 | - | 8 | 6 | - | - | 0.75 | 0.75 mm² (max) | +85 | -40 | 7 | 7 | - | - | Connector | Silver plated | - | ||
20.23 € | 1 | Available | 3 Days | 3 | 60 | 24 | 4 - 6 | 6 | 4 | Max 0.25 | 0.25 | 0.25 | 0.25 mm² (max) | +90 | -40 | 12 | 12 | 3 | 60 | Socket | Gold plated | Cable socket |
Loading...
Basic information
| Connection direction | straight | Connection angle(°) | 180 | Series (connectors) | 581 |
|---|---|---|---|---|---|
| Test voltage(V AC) | 875 | Contamination level | 2 | Case material | CuZn |
| Connection (components) | Soldering | Connector type (category) | Bullet connector | Leading contact (PE) | No |
| Seal type | Screws |
Configure
Basic Attributes
-
Nominal current(A)
-
Nominal voltage(V)
-
AWG
- 20
- 24
-
Cable diameter(mm)
- 4 - 6
-
Cable Ø (max.)(mm)
-
Cable Ø (min.)(mm)
-
Connector cross section(mm²)
- Max 0.25
- Max 0.75
-
Cross section(mm²)
-
Cross section (max.)(mm²)
- 0.25
- 0.75
-
Cross-section range
- 0.25 mm² (max)
- 0.75 mm² (max)
-
Max. temperature(°C)
-
Min. temperature(°C)
- -40
- -25
- -20
-
Number of pins
-
Total number of pins
-
Nominal current (details)(A)
-
Nominal voltage (details)(V)
-
Connector type
- Connector
- Socket
-
Contact material
-
Type (misc.)
Filter by standard shipping days
-
- All
- 3 Days or Less
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
