Benefits of becoming a CAD User at MISUMI
Are you a Designer or do you need a CAD data for your work? With us you can access to mechanical components from all areas of mechanical engineering. Configurable parts or standard components in the common CAD formats are ready to be used such as Autodesk, Inventor, SolidWorks, STEP, IGES.
- Immediate access to 2D/3D CAD models
- Free CAD download in few steps
- Over 40 CAD native and neutral formats available (e.g. AutoCAD, Catia, SolidWorks, etc.)
- Build your own BOM online and share it with other people
- Time saving by not creating CAD data on your own
Free CAD models in 3 simple steps
We support all leading CAD softwares
❶
Register to download
your free CAD model
❷

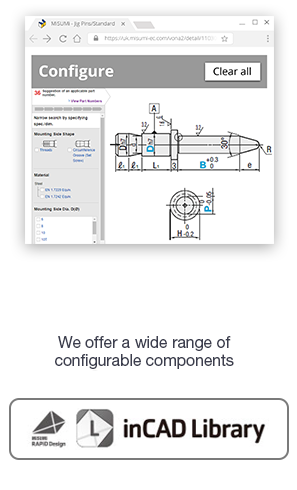

Configure your
component
❸

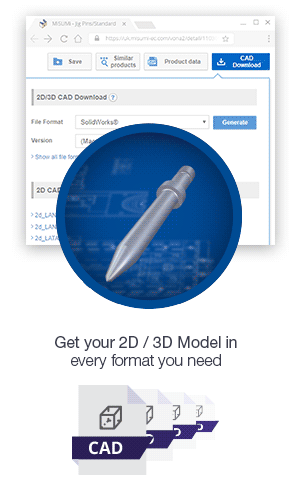

Download your
CAD model
How configuring parts in the MISUMI online shop works
In the MISUMI online shop, product detail pages offer the possibility to configure components exactly according to design specifications in 0.01mm increments. Designers can specify many parameters, such as material, surface treatment or dimension, and many more. Once the component is configured and the globally recognized part number is generated, CAD data can be downloaded and price as well as lead time information are displayed.
Get registered today for accessing a vast number of 2D/3D models and downloading CAD models for free
