Have drawing parts
custom-made

If our standard parts don’t fit your drawings, we offer the service of creating custom-machined parts for you

Benefits of MISUMI custom-machined parts

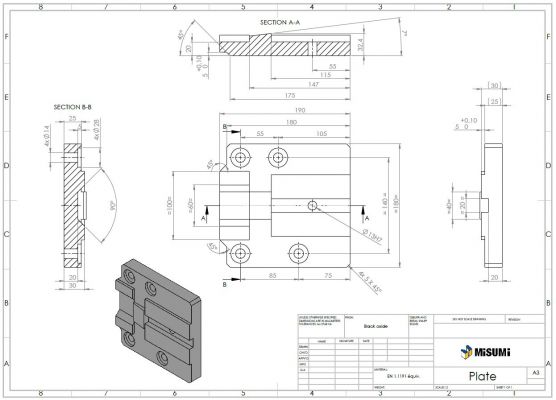

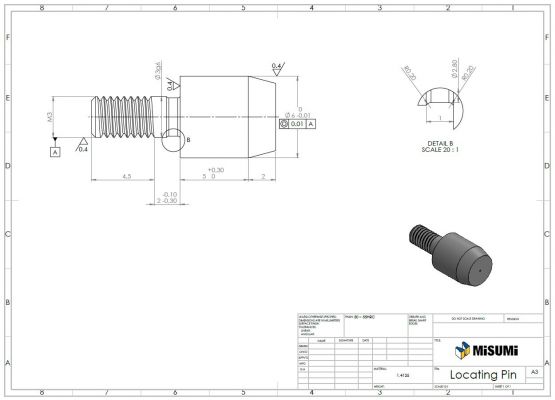

Didn't you find a fitting part within the wide MISUMI product portfolio? In this case, you can also send us a drawing of your desired product (single component, no assemblies) and have a custom-machined part made. Your documents will of course be treated confidentially and only used for the purpose of creating the offer. With this service, you benefit from:

Product machined according to drawing
Both standard & custom-machined parts from the same shop
Global supplier pool from Europe and Asia
High confidential treatment of your documents

Request your non-binding quotation now!

How having a custom-machined part made works

Send us a request with your desired part (single component, no assemblies). We will send you our best offer and, if acceptable, take care of your production. To further reduce the time needed, following information are required.

Requirement for drawings:

PDF format
Completely dimensioned
STEP file (if available)

Please also specify:

Desired material
Surface treatment (if required)
Heat treatment (if required)
Required quantity
Target price (if available)

Please note: As we take great care in having high-quality parts produced for you, this service may take more time than the usual MISUMI standard quotation and production service. Please calculate with a quotation turnaround time of approx. 3 working days and a production lead time of approx. 20 working days.

MISUMI custom-machined parts

Choose from different materials, heat and surface treatments and many more parameters for your custom-machined parts:

Material	Machines	Heat Treatment	Surface Treatment
Steel Stainless steel Aluminium Carbide Bronze Brass Titanium Plastics Cerazur® Volcera®	NC Milling / NC Lathe CNC Milling / CNC Lathe Internal grinding Flat-/Circular grinding Wire electrical discharging machining Flame cutting Laser marking Engraving	Case hardening Plasma nitriding Gas nitriding Induction hardening Hardening Quench and temper	Black oxiding Oiling / phosphating Anodising Galvanising Nickel plating Zinc plating Chrome plating Sandblasting / polishing DLC (Black) DLC (Rainbow)

Machining Size	Round objects: Diameter Ø: 5 mm ~ 250 mm, Length: 5 mm ~ 800 mm Square objects: Min.: 8 mm x 15 mm x 15 mm, Max.: 300 mm x 400 mm x 1000 mm
Geometric Tolerances	up to ± 0,02 mm
Position Tolerances	up to ± 0,09 mm
Quantity/Weight	1 – 1000 pcs / max. 1000 kg PLEASE NOTE: 1– 4 pcs = cost-intensive / > 1000 pcs Big order process
Testing Equipment	Coordinate measuring machine(CMM) Measuring room Temperature controlled room Manual testing
