Profile Rail Guides - Selection Tool for Linear Guides

Selecting the right profile rail guide has a lasting impact on the performance and longevity of machines and equipment. But how do you find the right system among a wide range of options? Check out our blog to see what criteria really matter, from load types and accuracy requirements to environmental and installation conditions. We will show you a structured approach to help you make informed decisions and to optimize the performance of your applications over the long term.

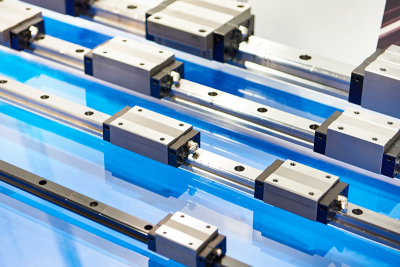

Selection tool for profile rail guides

The correct selection of profile rail guides significantly affects the performance and reliability of machines and equipment. Numerous parameters play a role in this: from precise operating conditions, to the required load capacity and precision, to optimized lubrication and service life. Each application has unique requirements that call for careful planning and selection. Our linear guide selection tool provides a structured approach for identifying the right profile rail guides for your specific needs. The sequence shown here as an example places the main focus on the required precision. Step-by-step, we explain how to analyze installation conditions, select the right series and preload, and consider important aspects, such as friction, load, and lubrication. The basic process of the selection procedure can vary depending on the selected focus.

Determine the selection conditions

The basis of each selection begins by accurately determining the requirements and framework conditions. Below are some key selection criteria that should be considered when configuring profile rail guides. For more information and a broad overview of the different form factors and alternatives of profile rail guides, please visit our blog about the types, function and service life of profile rail guides.

Travel distance

The travel distance required in the work space is the actual distance traveled while a machine or system is in operation. The minimum length of the guide rails is determined by the travel taking into account the guide carriages and any spacing required between the guide carriages. A safety margin should be planned so as not to limit travel at the rail ends. In applications with short travel, using a cam gear or cam lever mechanism may also be useful. Check out our blog on Converting Rotation to Translation for more information on how to better assess motion transformation and travel when choosing the rail length and the right drive concept.

Operating conditions

Operating conditions include, but are not limited to, temperature, lubrication, service life and other environmental conditions. For harsh conditions, special surface coatings and specially designed materials may be required. The choice of lubricant and lubrication intervals is critical to the service life and efficiency of the guide. Applications in cleanrooms or under vacuum conditions require special materials and sealing systems. Similar aspects regarding lubrication and temperature must also be observed for linear ball bearings.

Dirty environments may require protective systems such as wipers, seals or bellows. Corrosion-resistant materials or special coatings are essential in corrosive environments.

Select the required accuracy

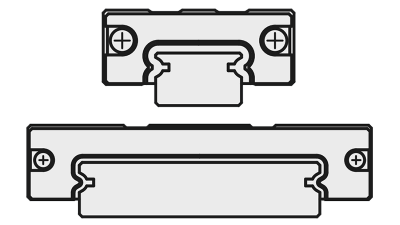

Accurately classifying the precision needed simplifies selecting the right linear guide. Standardized precision classes allow you to evaluate the suitability of profile rail guides for your application. Miniature profile rail guides, for example, are suited for compact applications with small footprint and minimal load. Medium and heavy-duty models, on the other hand, are ideal for industrial applications with high loads and long travel distances. MISUMI profile rail guides are available in high, medium, standard and low (cost-efficient) precision classes for both designs.

For more information, see our blog Profile Rail Guides - Precision Standards of MISUMI Profile Rail Guides.

Select the series

Different series offer different design features and customization options. For example, profile rail guides can be configured with multiple carriages for increased load capacity. There are also different preloads to choose from, which permit customizing to the mechanical requirements of the application. The correct combination of rail series, carriage configuration and preload optimizes the design of a profile rail guide.

Select the quantity of guide carriages and rails

While the rail provides a precise travel path, the guide carriage performs the function of guiding loads along this path and of absorbing forces and moments.

The guide carriage and rail selection should start by closely examining the type and size of the loads. A distinction is made between static and dynamic loads. Static loads affect forces and moments that act on the guide without movement. Dynamic loads are caused by acceleration, deceleration, or fluctuating loads during operation. The permissible load capacity of a single guide carriage must always be greater than the actual load, taking into account safety factors. Depending on the application, different designs such as block carriages or flanged carriages can also help to meet specific stability, load capacity or installation space requirements.

The dimensions of the rail are also a critical selection criterion. The rail length should cover the travel distance plus any safety distances. At the same time, users must determine whether the desired length, width and height are available as standard dimensions or whether a customized solution is required. Stability and precision of the linear guide are also influenced by the mounting method and the required fasteners.

Check precision and preload

After the profile rail guide is selected based on the requirements and loads, a final check of the precision and preload is required. This is the only way to ensure that the rails and carriages provide the required accuracy and performance in the selected configuration.

The rail and carriage constellation must ensure that the required precision is achieved for the specific application. User must determine whether the selected combination of components meets the desired accuracy classes. For example, applications with high precision requirements may require particularly tightly tolerated rails and trolleys.

The preload also plays a central role here. In order to obtain a preload, the rolling elements installed in the guide carriage are selected larger than would strictly be required by the spacing between the guide carriage and the profile rail. The oversized rolling elements are compressed to the clear distance between the guide carriage and the profile rail and are elastically deformed. They are preloaded.

The rail and carriage constellation must ensure that the required precision is achieved for the specific application. User must determine whether the selected combination of components meets the desired accuracy classes. For example, applications with high precision requirements may require particularly tightly tolerated rails and trolleys. The preload also plays a central role here. Insufficient preload can lead to unwanted play and limited precision, while excessive preload increases rolling resistance and negatively affects service life. The selected preload should therefore match the application and also the desired precision.

Another step is to check the dimensional tolerances of the rail and carriage. Standardized tolerance classes specify which accuracy in terms of straightness, parallelism and surface finish must be maintained. The rail should be checked for deviations prior to installation and start-up. Metrology equipment, such as micrometers, height gauges, or laser systems can be used to ensure that the rail meets specified tolerances.

Calculate the service life

Calculating the service life of profile rail guides is an essential part of planning and maintenance. The calculation relies on the basic formula for nominal useful life, which incorporates various influencing factors such as hardness coefficient, load coefficient, temperature coefficient and contact coefficient. These factors take into account influences such as material hardness, operating conditions and load distribution to ensure a realistic estimate of service life. The determined service life serves not only as an indicator of the reliability of the guide, but also as a planning basis for maintenance intervals and timely replacement to avoid failures and production downtimes.

For detailed information on how to calculate the service life of a linear guide, see our blog Profile Rail Guides - How to Calculate the Service Life of a Linear Guide.

Final verification

As a final step, a comprehensive review of all the decisions and assumptions previously made is essential. The goal is to ensure that the selected profile rail guides meet both the technical requirements and the specific conditions of the application. All selection criteria – from installation conditions to load ratings and moments to precision – must be checked for compliance. The application requirements should be reconciled with the specifications of the selected guide to ensure there are no discrepancies.

Potential sources of error, such as inadequate lubrication, assembly errors, or incorrect preloading, should be reviewed and ruled out. Careful control of the installation method and dimensions of the rail and carriage helps to avoid problems during subsequent operation. Finally, the profile rail guides should be subjected to a functional test under real-world operating conditions. This final check ensures that the guide delivers the desired results and operates reliably.

For information on mounting and maintaining profile rail guides, see our blog Profile Rail Guides - Linear Guide Assembly and Maintenance.
