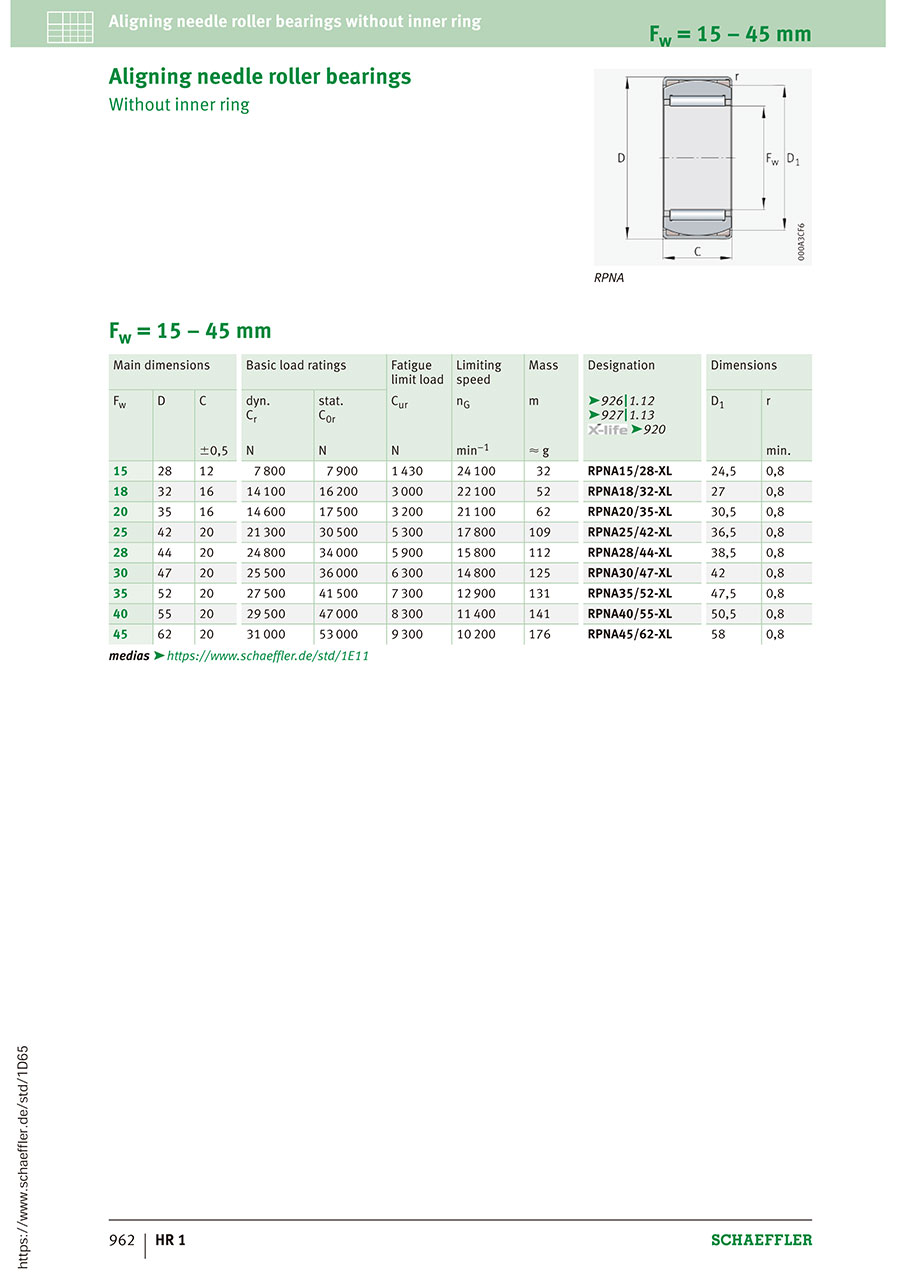

Aligning needle roller bearings RPNA, without inner ring
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| RPNA15/28-XL |
| RPNA18/32-XL |
| RPNA20/35-XL |
| RPNA28/44-XL |
| RPNA30/47-XL |
| RPNA40/55-XL |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Internal Diameter (mm) | Outer Diameter (mm) | Width (mm) | Allowable Rotational Speed (1/min) | Basic Load Rating, Dynamic Rating (N) | Basic Load Rating, Static Rating (N) | Customs tariff — weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
24.52 € | 1 | Available | 3 Days | 15 | 28 | 12 | 24100 | 7800 | 7900 | 0.032 | ||
36.15 € | 1 | Available | 4 Days | 18 | 32 | 16 | 22100 | 14100 | 16200 | 0.052 | ||
36.72 € | 1 | Available | 4 Days | 20 | 35 | 16 | 21100 | 14600 | 17500 | 0.062 | ||
64.85 € | 1 | Available | 4 Days | 28 | 44 | 20 | - | - | - | 0.112 | ||
39.20 € | 1 | Available | 3 Days | 30 | 47 | 20 | 14800 | 25500 | 36000 | 0.125 | ||
55.18 € | 1 | Available | 4 Days | 40 | 55 | 20 | 11400 | 29500 | 47000 | 0.141 |
Loading...
Basic information
| RoHS Certificate | Available | REACH Certificate | Available | Customs tariff — weight unit | kg |
|---|
Configure
Basic Attributes
-
Internal Diameter(mm)
-
Outer Diameter(mm)
-
Width(mm)
-
Customs tariff — weight
-
Type
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- 3 Days or Less
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
