SOLUTION FOR TOGGLE LEVER

  • Misumi Part
  • Machined Part (predominantly of MISUMI raw material)
  • Workpiece

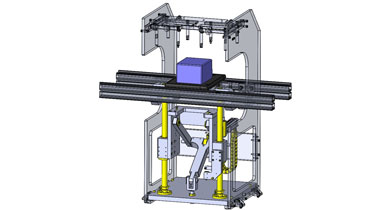

The toggle lever is used as a positioning unit for contacting of components. The workpiece is lifted within a defined stroke and at the same time it plugs the contacts together, all within one movement. During this process, the workpiece is first spring-loaded to the upper-end position and then the contact is fed in. Using many MISUMI components has reduced the manufacturing effort of the fixture. The toggle lever principle was chosen in order to maintain the contact with high force in a defined end position with low actuating forces.

Introducing our partner Hörber + Hetzner:

For over 30 years Hörber + Hetzner GmbH has been realizing complete solutions for special purpose machinery, assembly and testing devices, as well as for laser marking systems for customers in:

  • Automotive industry
  • Cosmetics industry
  • Paper processing industry
  • and much more

As a general contractor, we offer you project planning, concept development and design, mechanical production with assembling, electrical equipment as well as control and testing equipment.
