1. Click on the "Change Base Model" button on the design window.

2. The "Change Base Model" screen will launch.
Select the shape and items you want to change to display the similar components.

3. Click on the "Replace Selected Part" button to replace the component.
In this case, the basic dimensions and specifications are transferred. (The referenced file on the tree is replaced. The previous data is not deleted)

About mates and constraints errors

When "Change Base Model" is executed for mated components, a mates and constraints error will appear.

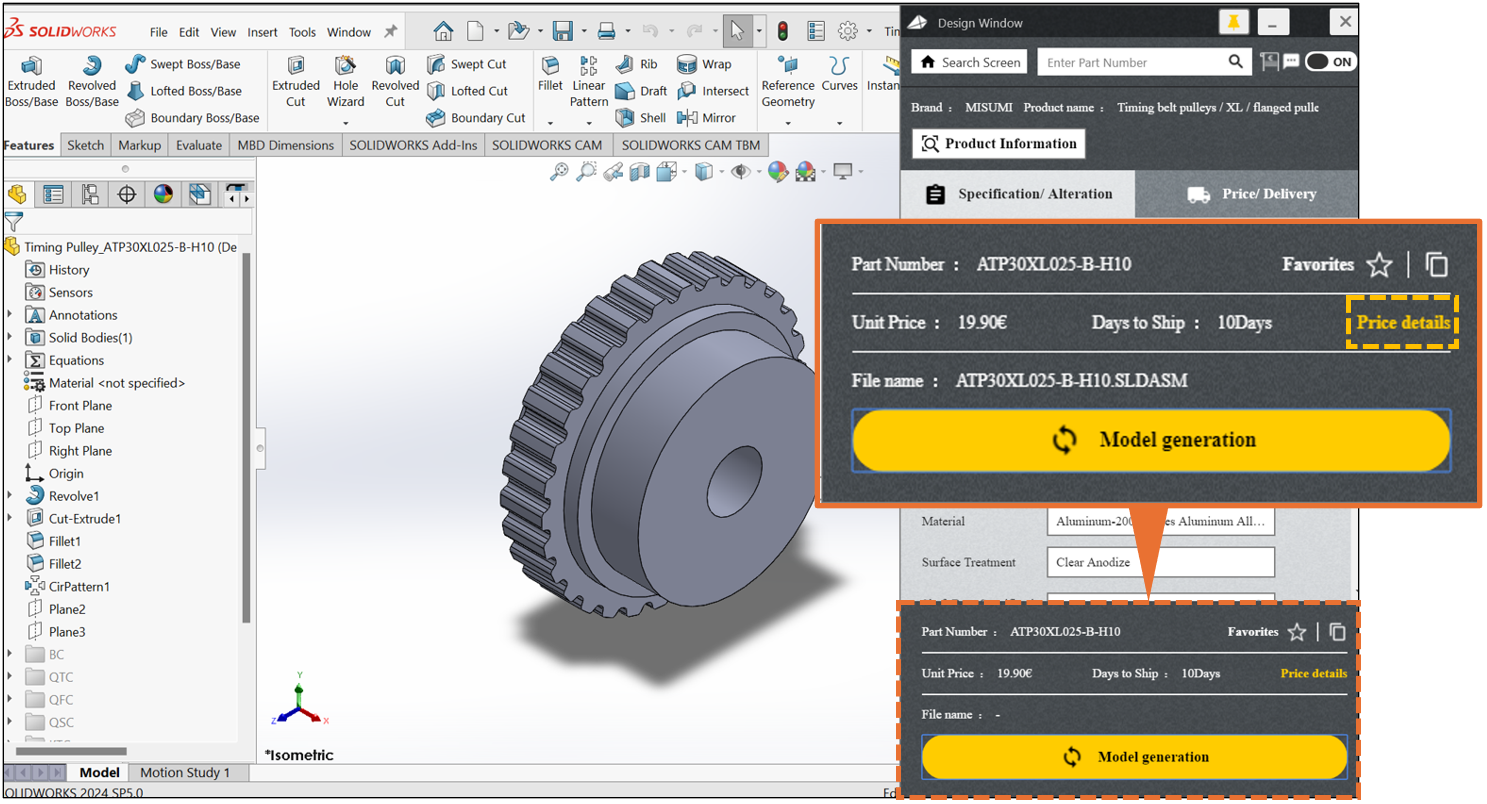

Click either or to view the price and days to ship.

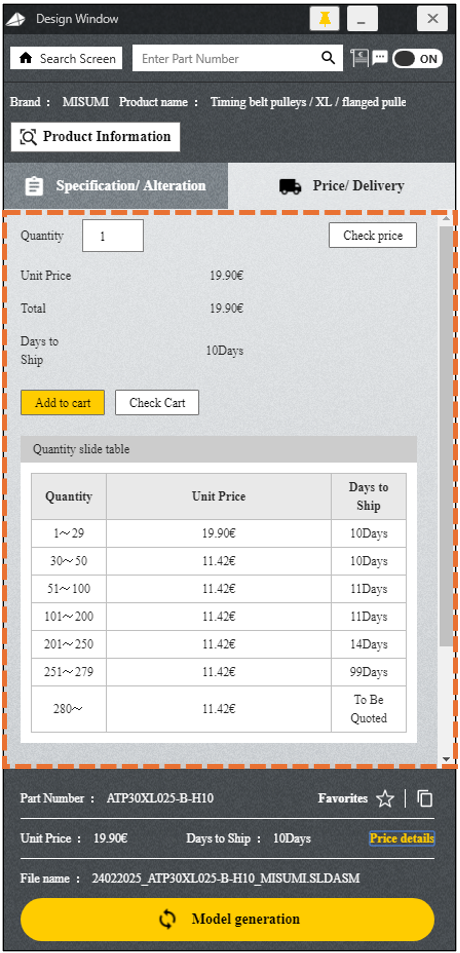

Click "Detail Price" to switch to the Price/Days to Ship tab to confirm.

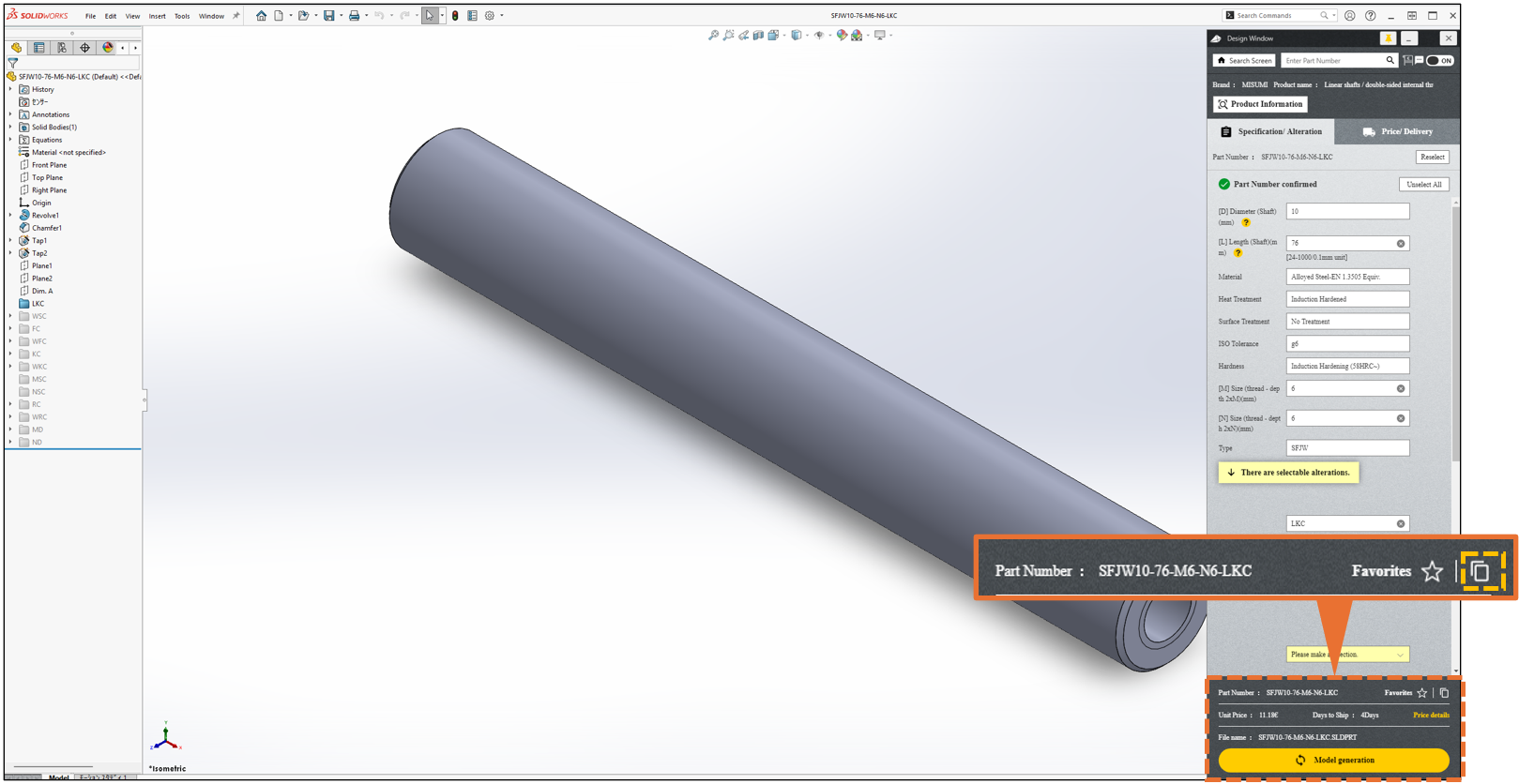

1. Click on the copy icon next to the part number to save the part number to the clipboard.

2. Paste to the search box, change the length from 50 to 150 before searching.

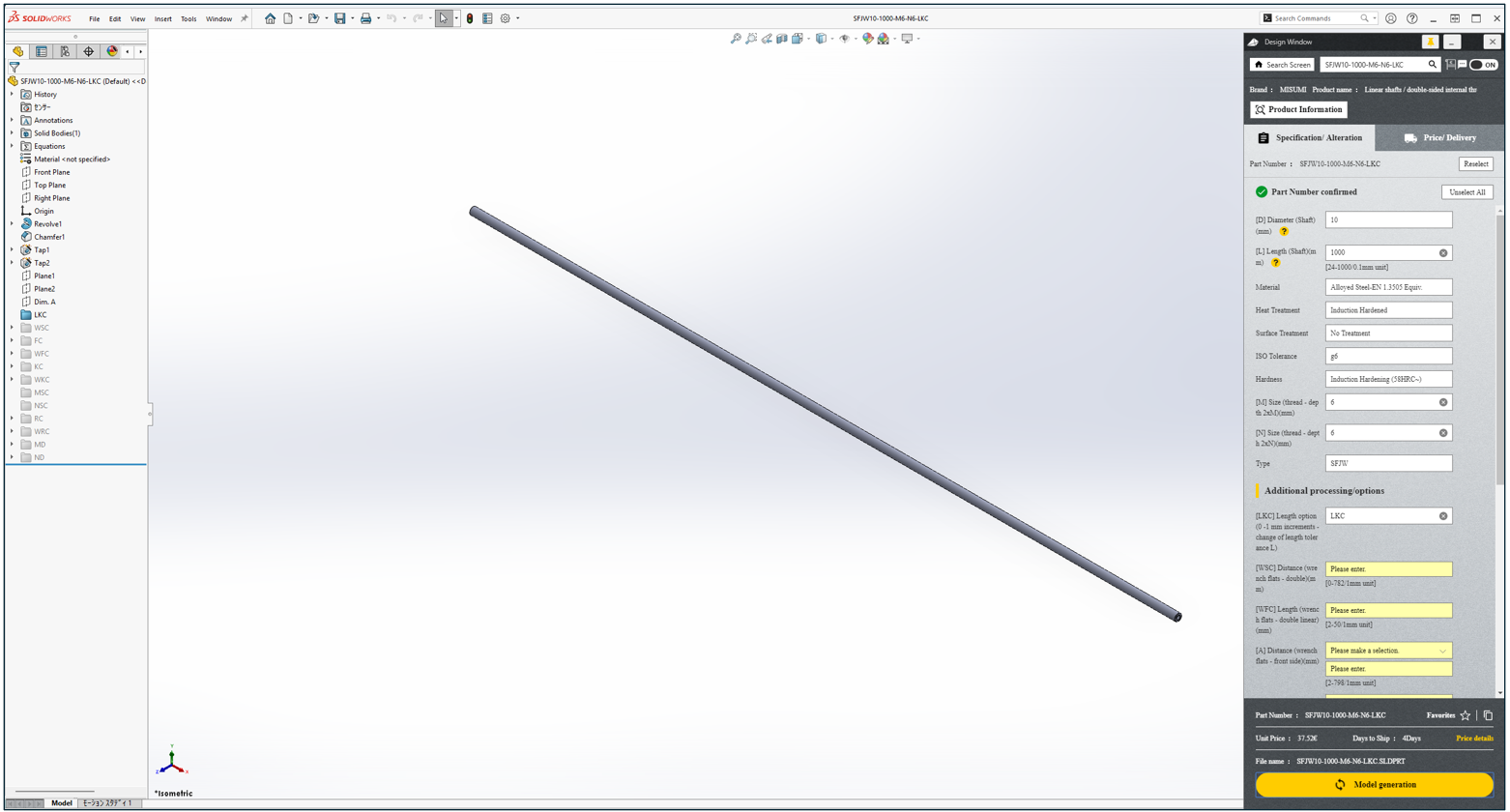

3. You can easily import models with different dimensions.

When the RAPiD Design part number is determined, the price and lead time are automatically acquired.
Operating speed can be improved by enabling automatic acquisition.

1. Click on "Settings" at the top right of the model selection screen.

2. Add a to "Acquire price and delivery date automatically when producing Part Number" and "Apply."
