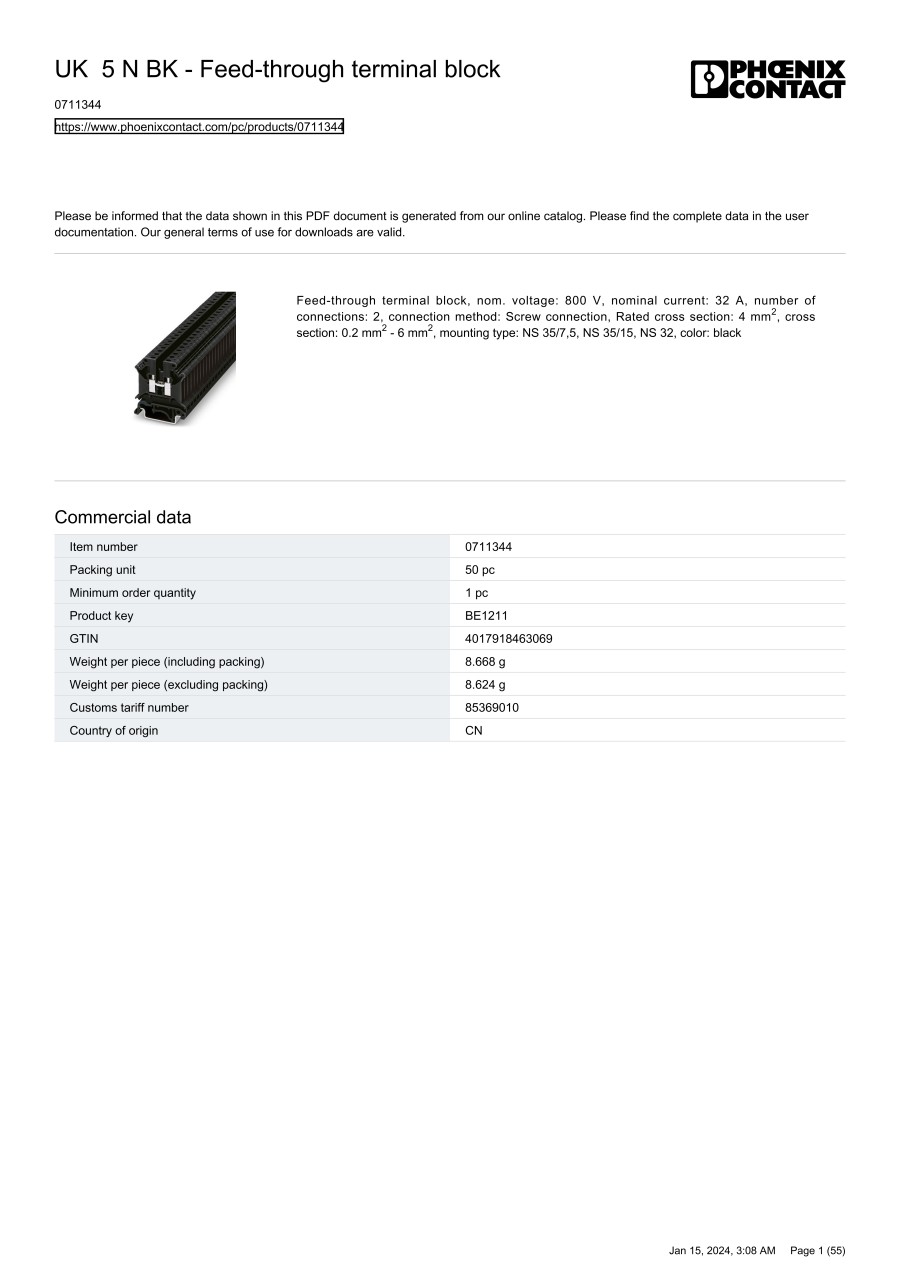

Feed-through terminal block UK 5 N【1-50 Pieces Per Package】
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 0711344 |
| 0719207 |
| 3002908 |
| 3003952 |
| 3003965 |
| 3004388 |
| 3007327 |
| 3007330 |
| 3026560 |
| 3026696 |
| Part Number | Related to |
Standard Unit Price
| Number of pc(s). included in pkg. | Minimum order quantity | Volume Discount | Color | AWG | Nominal voltage (V) | Nominal current (A) | Flammability rating | Insulation material | Industrial goods | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | 130.71 € | 50 Pieces Per Package | 1 pack | Available | 7 Days | Black | 24 - 10 | 800 | 32 | V0 | PA | Yes | |
| - | 125.27 € | 50 Pieces Per Package | 1 pack | Available | 64 Days | Beige | 24 - 10 | 800 | 41 | V0 | PA | Yes | |
2.27 € | 100 | 7 Days | Orange | 24 - 12 | 800 | 32 | - | - | Yes | ||||
2.27 € | 100 | 7 Days | Yellow | 24 - 12 | 800 | 32 | - | - | Yes | ||||
2.27 € | 100 | 7 Days | Green | 24 - 12 | 800 | 32 | - | - | Yes | ||||
3.40 € | 1 | Available | 3 Days | Blue | 24 - 12 | 800 | 32 | V0 | - | No | |||
141.61 € | 50 Pieces Per Package | 1 pack | Available | 7 Days | White | 24 - 12 | 800 | 32 | - | - | Yes | ||
130.71 € | 50 Pieces Per Package | 1 pack | Available | 7 Days | Brown | 24 - 12 | 800 | 32 | - | - | Yes | ||
3.60 € | 100 | 70 Days | Grey | 24 - 12 | 500 | 41 | - | PA | No | ||||
2.27 € | 100 | 7 Days | Red | 24 - 12 | 800 | 32 | - | PA | Yes |
Loading...
Basic information
| Total number of pins(Pole) | 2 | Clamp width(mm) | 6.2 | Connector cross section (fixed)(mm²) | 0.2 - 6 |
|---|---|---|---|---|---|
| Connector cross-section (flexible)(mm²) | 0.2 - 4 | No. of rows | 1 | Product size (height)(mm) | 47 |
| Product size (length)(mm) | 42.5 | Product size (width)(mm) | 6.2 | Stripping length(mm) | 8(max.) |
| Connection (components) | Screws | Connector type (category) | Continuity |
Configure
Basic Attributes
-
Color
- Beige
- Black
- Blue
- Brown
- Green
- Grey
- Orange
- Red
- White
- Yellow
-
AWG
-
Nominal voltage(V)
-
Nominal current(A)
-
Flammability rating
- V0
-
Insulation material
- PA
-
Industrial goods
- No
- Yes
Filter by standard shipping days
-
- All
- 3 Days or Less
- 7 Days or Less
- 64 Days or Less
- 70 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
