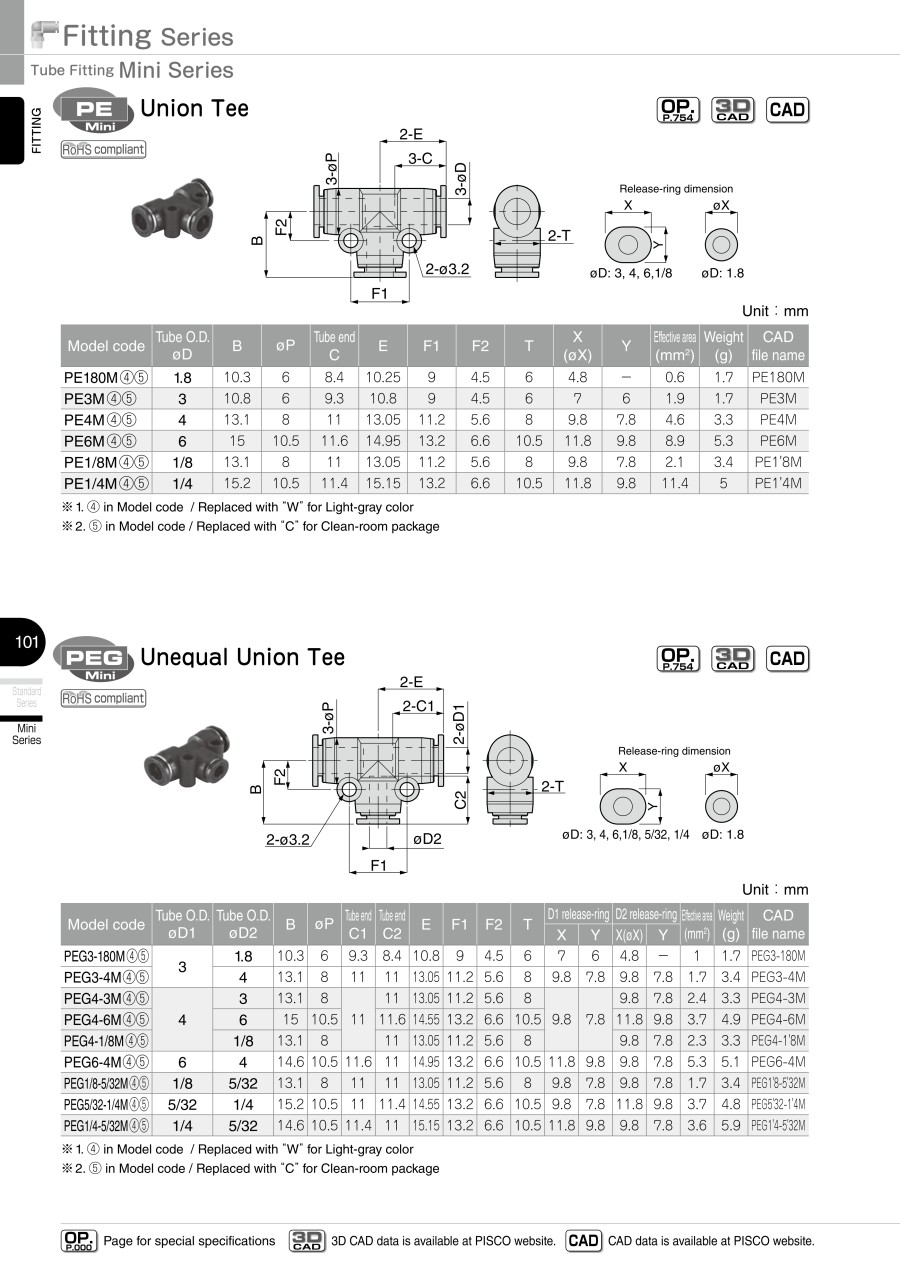

Tube Fitting for General Piping - Mini Type with Different Diameters Union Tee

Tube Fitting for General Piping - Mini Type with Different Diameters Union Tee
  • Volume Discount
[Features]
· Ultra-small one-touch fitting for general pneumatic pipes.
· Reduced size with a volume ratio of 40% over the standard type.
· Elliptical release ring allows easy tube release.
· The φ1.8 mm type is an industry-first minimum one-touch type.
· Optimum for piping of small actuators and such.
· Light gray types, and clean room packaged types currently available as options.
· Clean room packaging specifications define the use of fluorinated grease.
· After purification with clean air, the item is packaged in an ISO Class 6-equivalent clean room.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
PEG1/4-5/32M
PEG1/8-5/32M
PEG3-4M
PEG3-180M
PEG4-1/8M
PEG4-1/8MW
PEG4-3M
PEG4-3MW
PEG4-6M
PEG5/32-1/4M
PEG6-4M
PEG6-4MW
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHSCompatible Tube Outer Diameter 1
(mm)
Compatible Tube Outer Diameter 2
(mm)
Appearance Color

4.08 €

10 17 Days -6.353.97Standard Specifications

3.67 €

10 11 Days -3.973.2Standard Specifications

3.67 €

10 5 Days -43Standard Specifications

3.58 €

10 11 Days -1.83Standard Specifications

3.89 €

10 11 Days -43.2Standard Specifications

3.89 €

10 11 Days -43.2Light Gray Specification

3.53 €

10 Available 5 Days 1043Standard Specifications

3.89 €

10 11 Days -43Light Gray Specification

3.98 €

10 5 Days -64Standard Specifications

3.98 €

10 11 Days -6.353.97Standard Specifications

3.61 €

10 Available 5 Days 1064Standard Specifications

4.33 €

10 11 Days -64Light Gray Specification

Loading...

  1. 1

Basic information

Type Single-Action Coupling Fitting Type Union with different diameters Applicable Fluid Air
Application Standard/Mini Union: Unequal Diameter Different Diameter Unions Tees Operating Temperature(°C) 0::60
Package Specifications Regular Packaging Specifications
