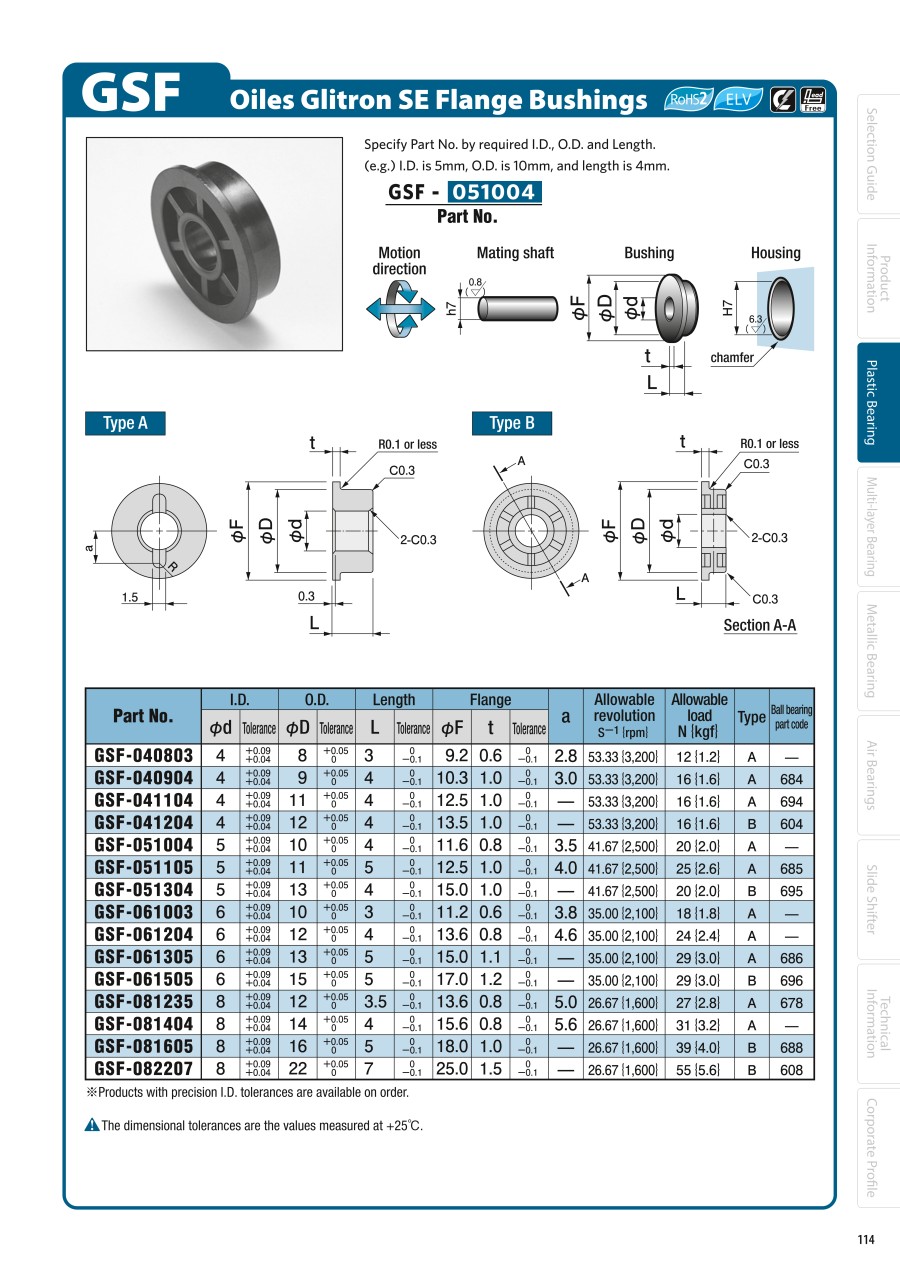

Plain bearing bushes with flange / brass / solid lubricant / GSF
- Promotional pricing
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| GSF-040803 |
| GSF-041204 |
| GSF-051004 |
| GSF-051105 |
| GSF-051304 |
| GSF-061003 |
| GSF-061204 |
| GSF-061305 |
| GSF-061505 |
| GSF-081235 |
| GSF-081404 |
| GSF-081605 |
| GSF-082207 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | I.D. d (mm) | O.D. D (mm) | L (mm) | Flange Outside Diameter (mm) | |
|---|---|---|---|---|---|---|---|---|---|
0.82 € | 10 | 5 Days | 10 | 4 | 8 | 3 | 9.2 | ||
0.98 € | 1 | 5 Days | - | 4 | 12 | 4 | 13.5 | ||
1.10 € | 1 | 5 Days | 10 | 5 | 10 | 4 | 11.6 | ||
1.10 € | 1 | 5 Days | 10 | 5 | 11 | 5 | 12.5 | ||
1.10 € | 1 | 5 Days | - | 5 | 13 | 4 | 15 | ||
1.23 € 0.54 € | 1 | Available |
Same day
Stock | 10 | 6 | 10 | 3 | 11.2 | |
1.22 € 0.56 € | 1 | Available |
Same day
Stock | 10 | 6 | 12 | 4 | 13.6 | |
1.20 € | 1 | 5 Days | 10 | 6 | 13 | 5 | 15 | ||
1.20 € | 1 | 5 Days | - | 6 | 15 | 5 | 17 | ||
1.33 € 0.64 € | 1 | Available |
Same day
Stock | - | 8 | 12 | 3.5 | 13.6 | |
1.33 € 0.61 € | 1 | Available |
Same day
Stock | - | 8 | 14 | 4 | 15.6 | |
1.31 € 0.62 € | 1 | Available | 6 Days | 10 | 8 | 16 | 5 | 18 | |
1.31 € 0.62 € | 1 | Available |
Same day
Stock | 10 | 8 | 22 | 7 | 25 |
Loading...
Basic information
| Type | Flange | Resin Base | Filler-containing Polyphenylene fide | Operating Environment | Standard / In Water / In Seawater / In Chemical |
|---|---|---|---|---|---|
| Maximum Allowable PV Value Range(N/mm2•m/s) | 0.3–1.0 | Maximum Allowable PV Value(N/mm²·m/s) | 0.65 | Maximum Allowable Surface Pressure P(N/mm2) | 14.5 |
| Maximum Allowable Velocity V(m/s) | 2.5 | Length Type | Single | Fitting axis | h7 |
| Housing Fitting | H7 | Lubrication | Non-Lubricated | Operating Temperature Range(°C) | -60::200 |
Configure
Stock
-
- Show only stock items
Basic Attributes
-
I.D. d(mm)
-
O.D. D(mm)
-
L(mm)
-
Flange Outside Diameter(mm)
-
Type
- GSF
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- Same day
- 5 Days or Less
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
