Screw Adapter for Ferrule Pipe

Screw Adapter for Ferrule Pipe
  • Promotional pricing
  • Volume Discount

OSAKA SANITARY

OSAKA SANITARY

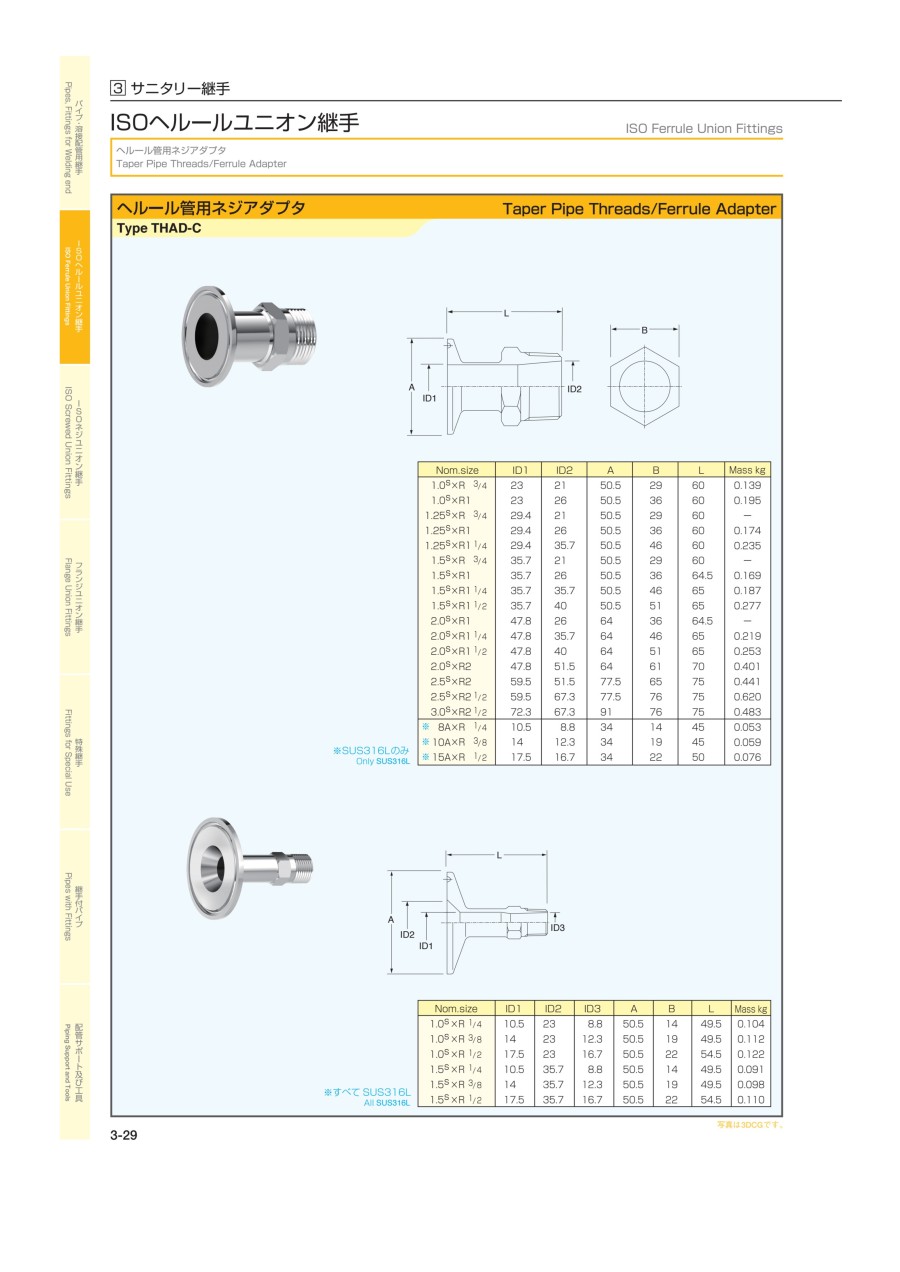

[Features] Made in Japan, 320 to 400# polished inside and out. - Stainless steel

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
THAD-C-304-1.0SX20A
THAD-C-304-1.0SX25A
THAD-C-304-1.5SX20A
THAD-C-304-1.5SX25A
THAD-C-304-1.5SX32A
THAD-C-304-1.5SX40A
THAD-C-304-1.25SX25A
THAD-C-304-1.25SX32A
THAD-C-304-2.0SX25A
THAD-C-304-2.0SX32A
THAD-C-304-2.0SX40A
THAD-C-304-2.0SX50A
THAD-C-304-2.5SX50A
THAD-C-304-2.5SX65A
THAD-C-304-3.0SX65A
THAD-C-316L-1.0SX8A
THAD-C-316L-1.0SX10A
THAD-C-316L-1.0SX15A
THAD-C-316L-1.0SX20A
THAD-C-316L-1.0SX25A
THAD-C-316L-1.5SX8A
THAD-C-316L-1.5SX10A
THAD-C-316L-1.5SX15A
THAD-C-316L-1.5SX20A
THAD-C-316L-1.5SX25A
THAD-C-316L-1.5SX32A
THAD-C-316L-1.5SX40A
THAD-C-316L-8AX8A
THAD-C-316L-10AX10A
THAD-C-316L-15AX15A
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Nominal Outside Diameter D Fitting Material I.D. d(d1)
(Ø) 		I.D. d2
(mm) 		Nominal Diameter of Pipe Connection Screw Nominal Outside Diameter D
(φ)

45.99 €

1 Available 5 Days 1.0S～2.0SStainless Steel (EN 1.4301 Equiv.)2321R3/41.0S

43.22 €

22.04 €

1 Available Same day

Stock

1.0S～2.0SStainless Steel (EN 1.4301 Equiv.)2326R11.0S

48.80 €

1 Available 5 Days 1.0S～2.0SStainless Steel (EN 1.4301 Equiv.)35.721R3/41.5S

56.54 €

1 Available 5 Days 1.0S～2.0SStainless Steel (EN 1.4301 Equiv.)35.726R11.5S

65.55 €

1 Available 5 Days 1.0S～2.0SStainless Steel (EN 1.4301 Equiv.)35.735.7R1 1/41.5S

74.04 €

1 Available 5 Days 1.0S～2.0SStainless Steel (EN 1.4301 Equiv.)35.740R1 1/21.5S

52.77 €

1 Available 5 Days 1.0S～2.0SStainless Steel (EN 1.4301 Equiv.)29.426R11.25S

62.92 €

1 Available 12 Days 1.0S～2.0SStainless Steel (EN 1.4301 Equiv.)29.435.7R1 1/41.25S

70.03 €

1 Available 5 Days 1.0S～2.0SStainless Steel (EN 1.4301 Equiv.)47.826R12.0S

79.93 €

1 Available 12 Days 1.0S～2.0SStainless Steel (EN 1.4301 Equiv.)47.835.7R1 1/42.0S

84.17 €

1 Available 5 Days 1.0S～2.0SStainless Steel (EN 1.4301 Equiv.)47.840R1 1/22.0S

85.46 €

43.58 €

1 Available Same day

Stock

1.0S～2.0SStainless Steel (EN 1.4301 Equiv.)47.851.5R22.0S

87.53 €

1 Available 5 Days 2.5S～4.5SStainless Steel (EN 1.4301 Equiv.)59.551.5R22.5S

103.70 €

1 Available 15 Days 2.5S～4.5SStainless Steel (EN 1.4301 Equiv.)59.567.3R2 1/22.5S

109.26 €

1 Available 5 Days 2.5S～4.5SStainless Steel (EN 1.4301 Equiv.)72.367.3R2 1/23.0S

67.62 €

1 Available 5 Days 1.0S～2.0SStainless Steel (EN 1.4404 Equiv.)2310.5R1/41.0S

67.68 €

1 Available 5 Days 1.0S～2.0SStainless Steel (EN 1.4404 Equiv.)2314R3/81.0S

67.76 €

1 Available 5 Days 1.0S～2.0SStainless Steel (EN 1.4404 Equiv.)2317.5R1/21.0S

52.51 €

1 Available 5 Days 1.0S～2.0SStainless Steel (EN 1.4404 Equiv.)2321R3/41.0S

58.01 €

1 Available 5 Days 1.0S～2.0SStainless Steel (EN 1.4404 Equiv.)2326R11.0S

67.51 €

1 Available 5 Days 1.0S～2.0SStainless Steel (EN 1.4404 Equiv.)35.710.5R1/41.5S

67.57 €

1 Available 5 Days 1.0S～2.0SStainless Steel (EN 1.4404 Equiv.)35.714R3/81.5S

67.66 €

1 Available 5 Days 1.0S～2.0SStainless Steel (EN 1.4404 Equiv.)35.717.5R1/21.5S

55.32 €

1 Available 5 Days 1.0S～2.0SStainless Steel (EN 1.4404 Equiv.)35.721R3/41.5S

65.41 €

1 Available 5 Days 1.0S～2.0SStainless Steel (EN 1.4404 Equiv.)35.726R11.5S

77.14 €

1 Available 5 Days 1.0S～2.0SStainless Steel (EN 1.4404 Equiv.)35.735.7R1 1/41.5S

86.90 €

1 Available 5 Days 1.0S～2.0SStainless Steel (EN 1.4404 Equiv.)35.740R1 1/21.5S

68.49 €

1 Available 5 Days 8A～15AStainless Steel (EN 1.4404 Equiv.)10.58.8R1/48A

68.53 €

1 Available 5 Days 8A～15AStainless Steel (EN 1.4404 Equiv.)1412.3R3/810A

68.66 €

1 Available 5 Days 8A～15AStainless Steel (EN 1.4404 Equiv.)17.516.7R1/215A

Loading...

  1. 1

Basic information

Type Fitting Fitting Shape Conversion Adapter Connection Type 1 (Left or Large Diameter Side) ISO Ferule Union
Connection Type 2 (Right or Small Diameter Side) Screw for Pipes Dia., Center Reducing/Concentricity Surface Finish Interior and Exterior Polishing

Configure

Clear all

30Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Stock

    • Show only stock items

    Clear

Basic Attributes

  • Nominal Outside Diameter D

    • 1.0S～2.0S
    • 2.5S～4.5S
    • 8A～15A

    Clear

  • Fitting Material

    • Stainless Steel (EN 1.4301 Equiv.)
    • Stainless Steel (EN 1.4404 Equiv.)

    Clear

  • Nominal Diameter of Pipe Connection Screw

    • R1
    • R1 1/2
    • R1 1/4
    • R1/2
    • R1/4
    • R2
    • R2 1/2
    • R3/4
    • R3/8

    Clear

  • Nominal Outside Diameter D(φ)

    • 1.0S
    • 1.25S
    • 1.5S
    • 2.0S
    • 2.5S
    • 3.0S
    • 8A
    • 10A
    • 15A

    Clear

  • Type

    • THAD-C

    Clear

  • Filter by CAD data type

    • 2D

    Clear

Filter by standard shipping days

    • All
    • Same day
    • 5 Days or Less
    • 12 Days or Less
    • 15 Days or Less

    Reset

Optional Attributes
