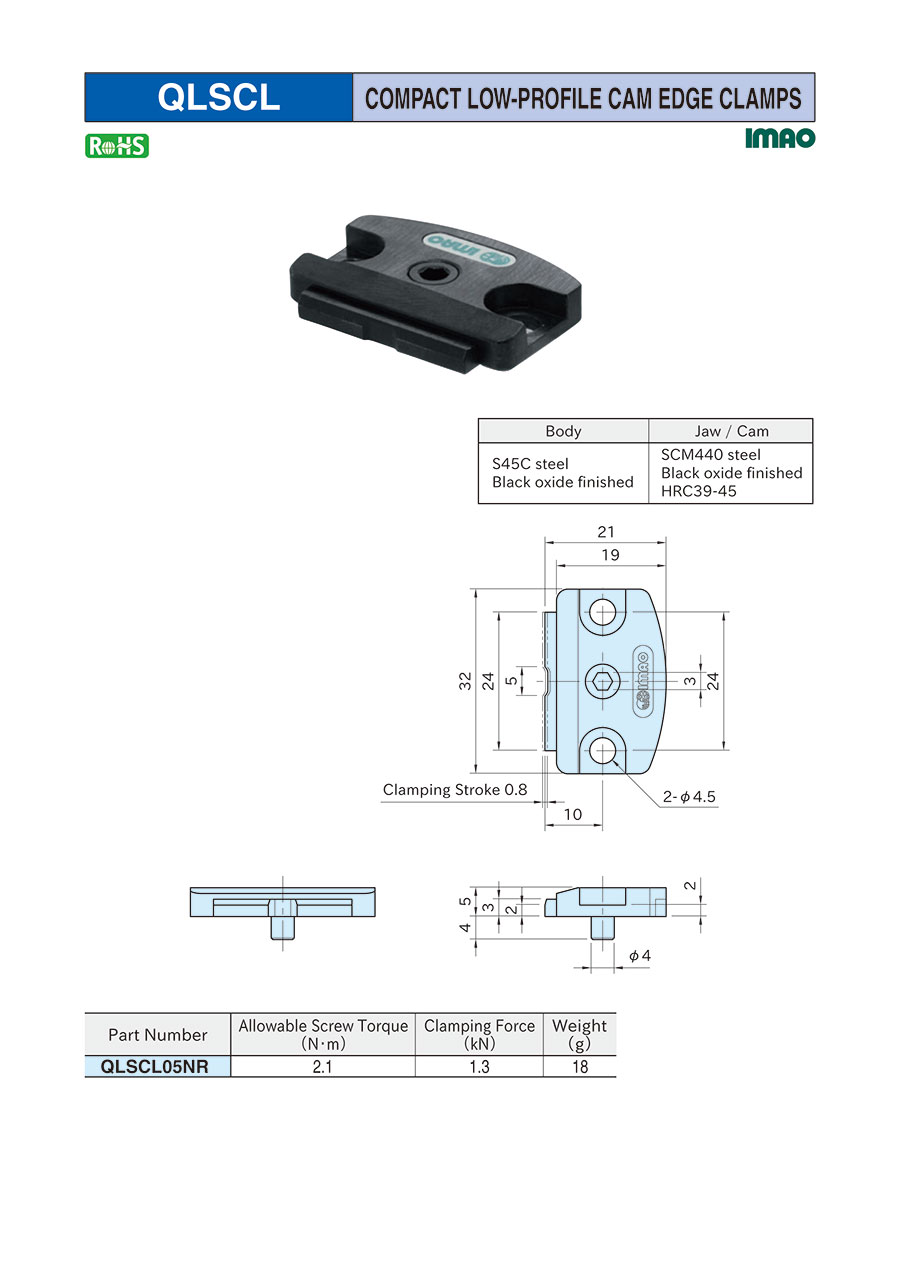

Thin-Type Cam Side Clamp (QLSCL)
[Features]
· With workpiece float prevention mechanism.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| QLSCL10NR |
| QLSCL10R |
| QLSCL15NR |
| QLSCL15R |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Clamping force (N) | Outer Diameter D (φ) | Length L (mm) | Thread Diameter M | Specifications | |
|---|---|---|---|---|---|---|---|---|---|---|
115.42 € | 1 | 6 Days | 10 | 4000 | - | - | - | No Lever | ||
104.23 € | 1 | 6 Days | 10 | 4000 | 13 | 33.5 | 4X0.7 | With Lever | ||
95.72 € | 1 | 6 Days | 10 | 6000 | - | - | - | No Lever | ||
123.74 € | 1 | 6 Days | 10 | 6000 | 19 | 50 | 5X0.8 | With Lever |
Loading...
Basic information
| Max. Clamping Force(N) | 3000～ | Material | EN 1.1191 Equiv. | Type | Main Body |
|---|---|---|---|---|---|
| Surface Treatment | Iron Tetroxide Coating | Swivel direction | Horizontal |
Configure
Basic Attributes
-
Clamping force(N)
- 4000
- 6000
-
Outer Diameter D(φ)
- 13
- 19
-
Length L(mm)
- 33.5
- 50
-
Thread Diameter M
- 4X0.7
- 5X0.8
-
Specifications
- No Lever
- With Lever
-
Type
- QLSCL
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
