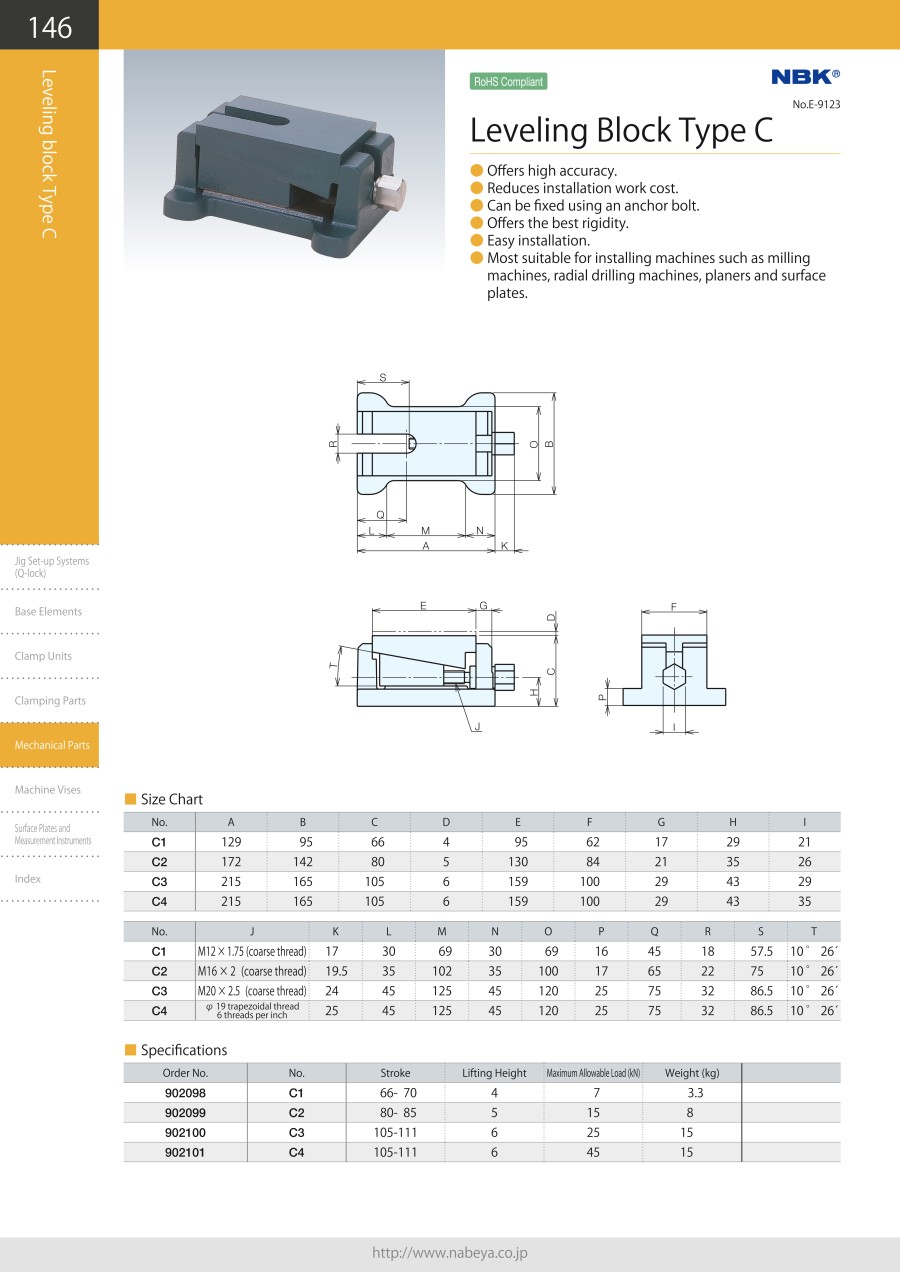

Leveling Block, C Type
- Volume Discount
[Features]
· Features good precision.
· Machinery installation costs are reduced.
· Can be fixed with an anchor bolt.
· Features the best rigidity.
· Installation is easy.
· Ideal for the installation of milling machines, radial drilling machines, planer machines, surface plates, etc.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| C1 |
| C2 |
| C3 |
| C4 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Load Resistance (kN) | Main Body Height (mm) | Main Body Depth (mm) | Main Body Width (mm) | Stroke(lifting) (mm) | |
|---|---|---|---|---|---|---|---|---|---|
140.62 € | 1 | 7 Days | 7 | 66 | 129 | 95 | 66 - 70 | ||
168.78 € | 1 | Available | 5 Days | 15 | 80 | 172 | 142 | 80 - 85 | |
268.79 € | 1 | 6 Days | 25 | 105 | 215 | 165 | 105 - 111 | ||
315.64 € | 1 | Available | 6 Days | 45 | 105 | 215 | 165 | 105 - 111 |
Loading...
Basic information
| Type | Precision Mechanical Type | Properties | Standard |
|---|
Configure
Basic Attributes
-
Load Resistance(kN)
-
Main Body Height(mm)
-
Main Body Depth(mm)
-
Main Body Width(mm)
-
Stroke(lifting)(mm)
-
Type
- C
-
Filter by CAD data type
- 2D
Filter by standard shipping days
-
- All
- 5 Days or Less
- 6 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
