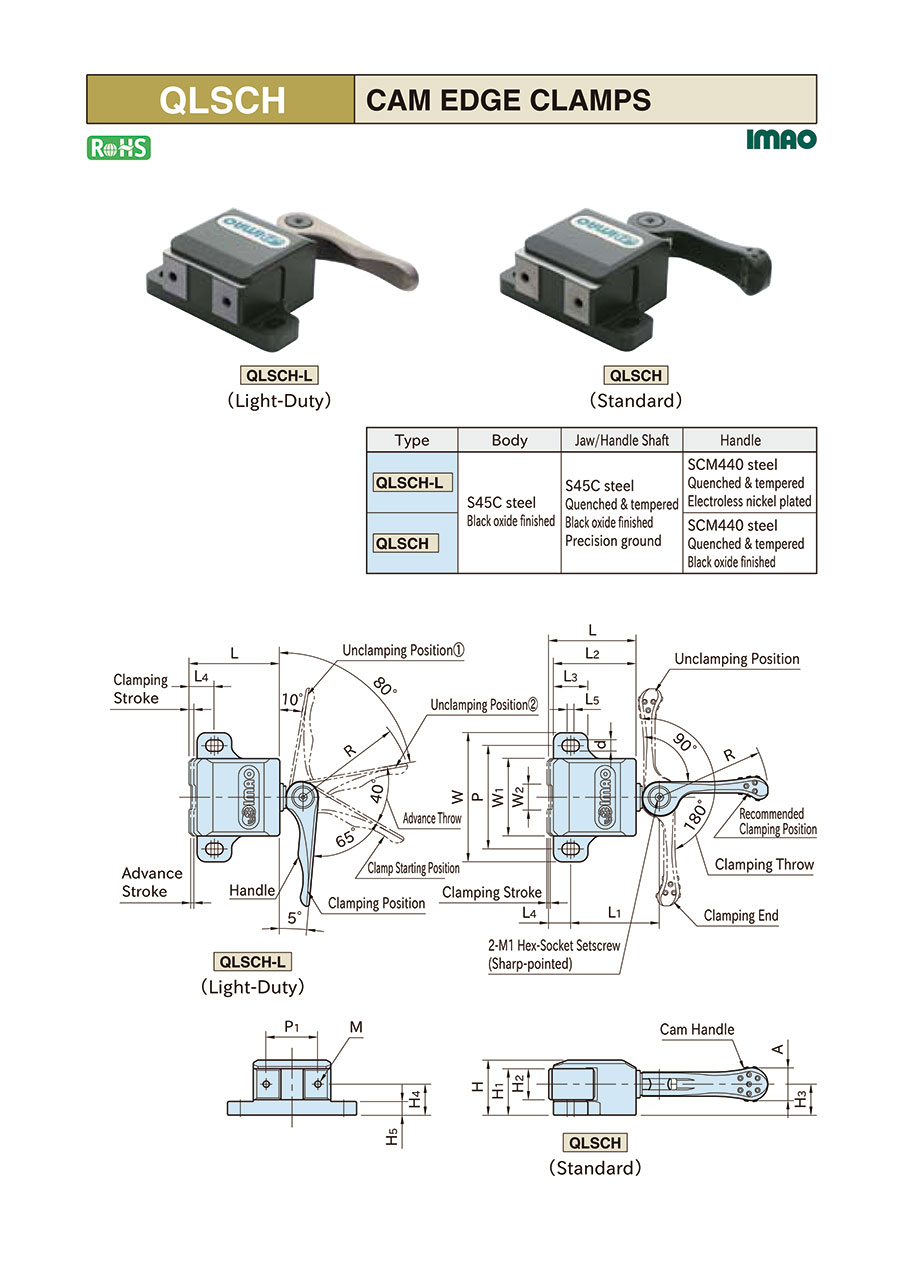

Cam Side Clamp (QLSCH)
[Features]
· Heavy load type has internal screw for constant clamp force.
· Standard type has lever to adjust clamping force for load.
· Mouth ring head is polished finish, so can be clamped on workpiece finished surface.
· When clamping mouth ring exerts downward force preventing workpiece float.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| QLSCH32 |
| QLSCH32L |
| QLSCH40 |
| QLSCH40L |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Max. Clamping Force (N) | Clamping force (N) | Length L (mm) | Thread Diameter M | Specifications | |
|---|---|---|---|---|---|---|---|---|---|---|
162.06 € | 1 | 6 Days | 10 | 1000 to 3000 | 2000 | 51 | 4X0.7 | Standard Type | ||
161.96 € | 1 | 8 Days | 10 | 100 to 1000 | 600 | 51 | 4X0.7 | Light Load Type | ||
215.73 € | 1 | 6 Days | 10 | 1000 to 3000 | 3000 | 67 | 5X0.8 | Standard Type | ||
215.53 € | 1 | 8 Days | 10 | 1000 to 3000 | 1200 | 67 | 5X0.8 | Light Load Type |
Loading...
Basic information
| Material | EN 1.1191 Equiv. | Type | Main Body | Surface Treatment | Iron Tetroxide Coating |
|---|---|---|---|---|---|
| Swivel direction | Horizontal |
Configure
Basic Attributes
-
Max. Clamping Force(N)
- 100 to 1000
- 1000 to 3000
-
Clamping force(N)
- 600
- 1200
- 2000
- 3000
-
Length L(mm)
- 51
- 67
-
Thread Diameter M
- 4X0.7
- 5X0.8
-
Specifications
- Light Load Type
- Standard Type
-
Type
- QLSCH
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- 6 Days or Less
- 8 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
