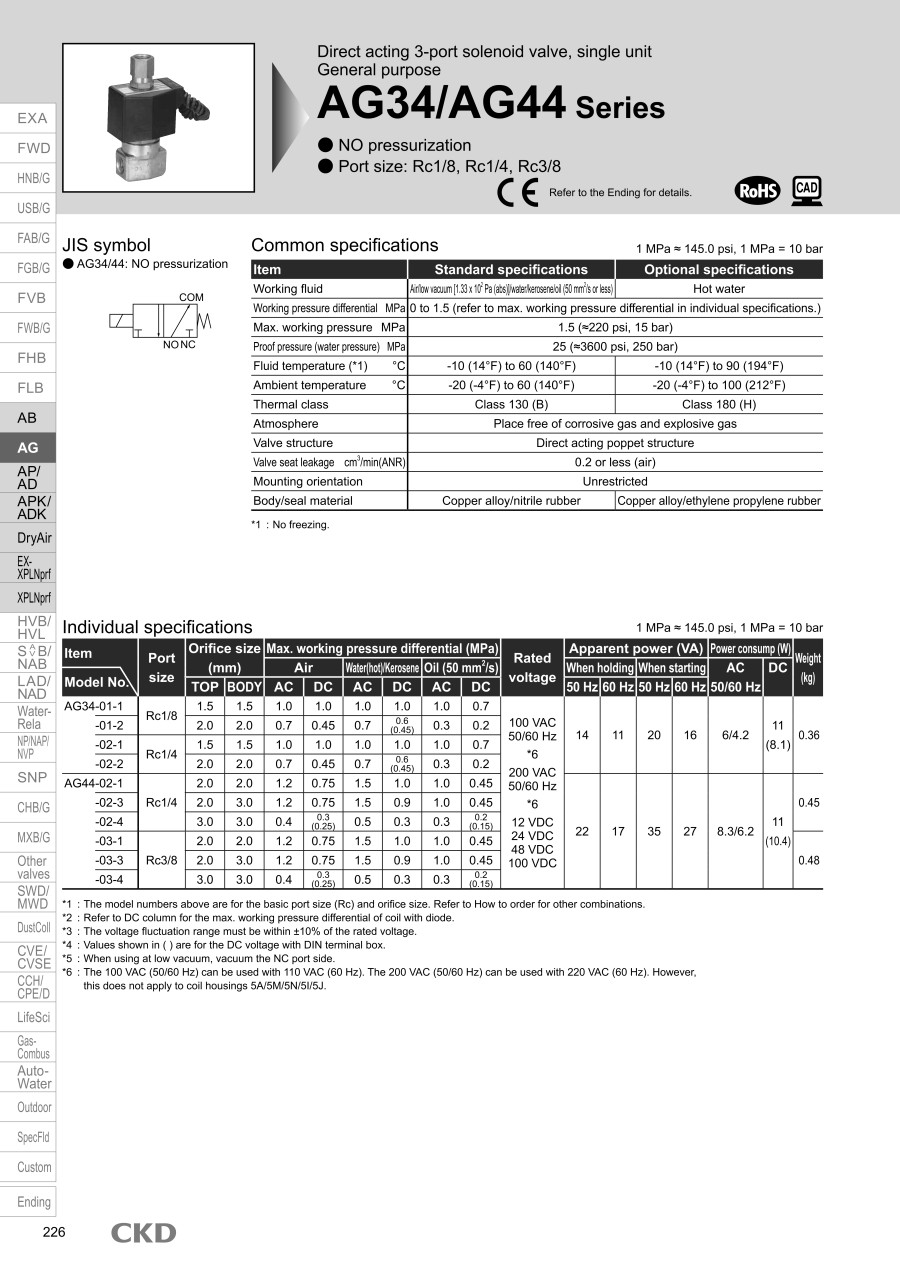

Direct Acting Type, 3-port Electromagnetic Multiflex Valve Unit, AG34 / 44 Series
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Nominal Pipe Thread Size | Orifice Diameter (mm) | Orifice Dia (Top) (φ) | Coil Symbol | Mounting Plate | Voltage | Max. Operating Pressure Differential (Air, AC/DC) (MPa) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
92.06 € | 1 | 6 Days | 1/4 | 2 | 2.0 | No Mark (With Option) | Available | AC100V | 1.2/0.75 | ||
92.06 € | 1 | 6 Days | 1/4 | 2 | 2.0 | No Mark (With Option) | Available | AC200V | 1.2/0.75 | ||
83.24 € | 1 | 6 Days | 1/4 | 2 | 2.0 | No Mark (With No Option) | NA | AC100V | 1.2/0.75 | ||
83.24 € | 1 | 6 Days | 1/4 | 2 | 2.0 | No Mark (With No Option) | NA | AC200V | 1.2/0.75 | ||
92.06 € | 1 | 6 Days | 1/4 | 3 | 2.0 | No Mark (With Option) | Available | AC100V | 1.2/0.75 | ||
92.06 € | 1 | 6 Days | 1/4 | 3 | 2.0 | No Mark (With Option) | Available | AC200V | 1.2/0.75 | ||
83.24 € | 1 | 6 Days | 1/4 | 3 | 2.0 | No Mark (With No Option) | NA | AC100V | 1.2/0.75 | ||
83.24 € | 1 | 6 Days | 1/4 | 3 | 2.0 | No Mark (With No Option) | NA | AC200V | 1.2/0.75 | ||
92.06 € | 1 | 6 Days | 1/4 | 3 | 3.0 | No Mark (With Option) | Available | AC100V | 0.4/0.3 | ||
92.06 € | 1 | 6 Days | 1/4 | 3 | 3.0 | No Mark (With Option) | Available | AC200V | 0.4/0.3 | ||
83.24 € | 1 | 6 Days | 1/4 | 3 | 3.0 | No Mark (With No Option) | NA | AC100V | 0.4/0.3 | ||
83.24 € | 1 | 6 Days | 1/4 | 3 | 3.0 | No Mark (With No Option) | NA | AC200V | 0.4/0.3 | ||
92.06 € | 1 | 6 Days | 3/8 | 2 | 2.0 | No Mark (With Option) | Available | AC100V | 1.2/0.75 | ||
92.06 € | 1 | 6 Days | 3/8 | 2 | 2.0 | No Mark (With Option) | Available | AC200V | 1.2/0.75 | ||
83.24 € | 1 | 6 Days | 3/8 | 2 | 2.0 | No Mark (With No Option) | NA | AC100V | 1.2/0.75 | ||
83.24 € | 1 | 6 Days | 3/8 | 2 | 2.0 | No Mark (With No Option) | NA | AC200V | 1.2/0.75 | ||
92.06 € | 1 | 6 Days | 3/8 | 3 | 2.0 | No Mark (With Option) | Available | AC100V | 1.2/0.75 | ||
92.06 € | 1 | 6 Days | 3/8 | 3 | 2.0 | No Mark (With Option) | Available | AC200V | 1.2/0.75 | ||
83.24 € | 1 | 6 Days | 3/8 | 3 | 2.0 | No Mark (With No Option) | NA | AC100V | 1.2/0.75 | ||
83.24 € | 1 | 6 Days | 3/8 | 3 | 2.0 | No Mark (With No Option) | NA | AC200V | 1.2/0.75 | ||
92.06 € | 1 | 6 Days | 3/8 | 3 | 3.0 | No Mark (With Option) | Available | AC200V | 0.4/0.3 | ||
83.24 € | 1 | 6 Days | 3/8 | 3 | 3.0 | No Mark (With No Option) | NA | AC200V | 0.4/0.3 |
Loading...
Basic information
| Type | Electromagnetic | Applicable Fluid | Air / Water / Vacuum / Oil / Gas | Operating Environment | Standard |
|---|---|---|---|---|---|
| Switching Type | 3-Port Normally Open | Connection Type | Rc | Driving Type | Linear Motion Type |
| Operating Temperature Range(℃) | -10::60 | Number of Solenoids | Single | Body Material | Brass |
| Application | Single Item | Sealing Material | NBR |
Configure
Basic Attributes
-
Nominal Pipe Thread Size
-
Orifice Diameter(mm)
-
Orifice Dia (Top) (φ)
- 2.0
- 3.0
-
Coil Symbol
-
Mounting Plate
- Available
- NA
-
Voltage
-
Max. Operating Pressure Differential (Air, AC/DC)(MPa)
- 0.4/0.3
- 1.2/0.75
-
Type
- AG44-02-1
- AG44-02-3
- AG44-02-4
- AG44-03-1
- AG44-03-3
- AG44-03-4
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
