Joint Bearing Type with Hex Shaft K-GX Series
- Volume Discount

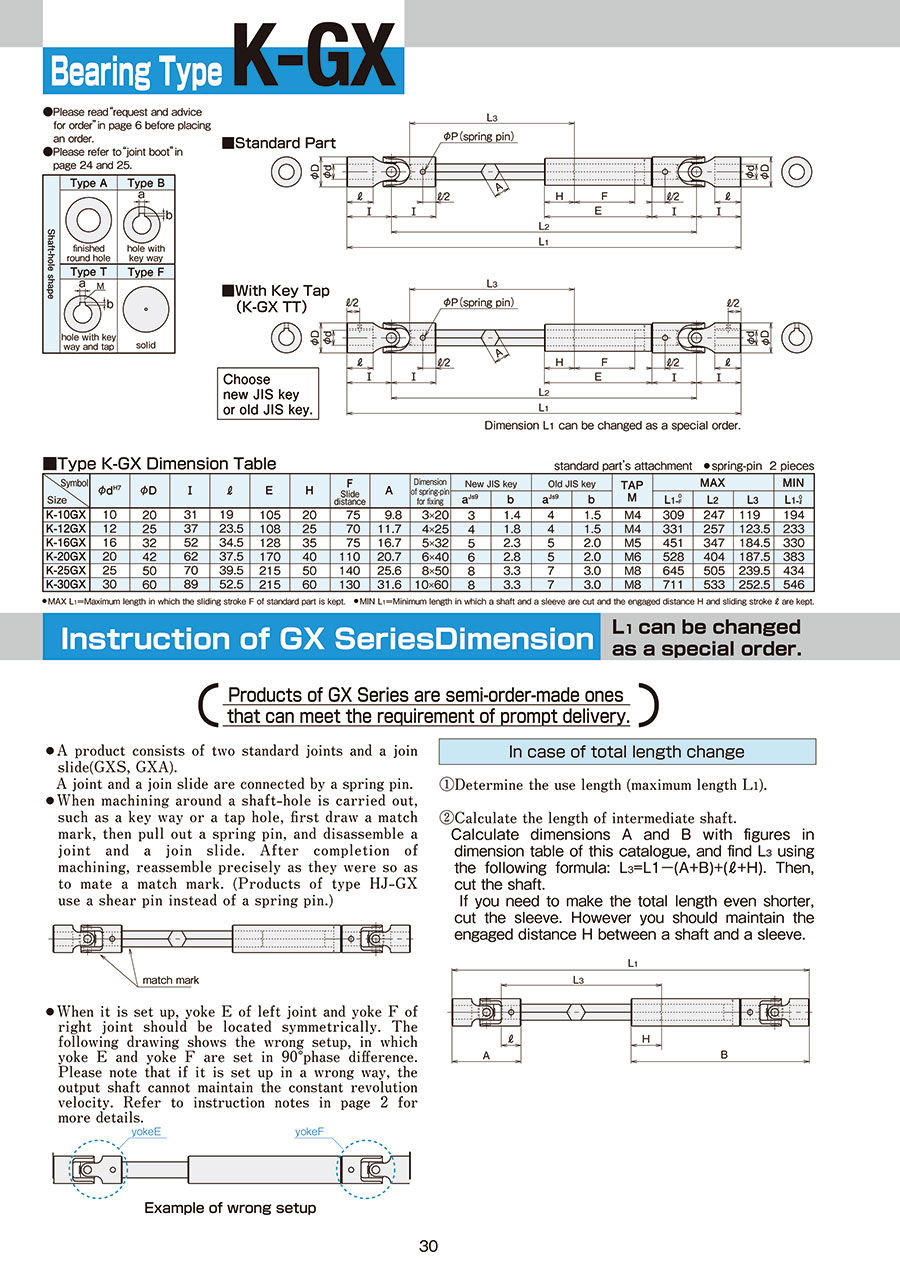

[Features]
· Comprises 2 standard joints and joint slide (GXS, GXA).
· Joint and join slide are set with spring pin.
· When shaft machining (keyway, tapping hole, etc.), after making the mating mark, remove the spring pin, and release the joint and joint slide.
· After machining, be sure to set back to the original position according to mating mark. (HJ-GX uses a joint pin instead of a spring pin.)
· When setting, please ensure symmetry of left / right joint assembly E yoke and F yoke.
· Please note, if set incorrectly, output wheel speed will become uneven.
· Comprises 2 standard joints and joint slide (GXS, GXA).
· Joint and join slide are set with spring pin.
· When shaft machining (keyway, tapping hole, etc.), after making the mating mark, remove the spring pin, and release the joint and joint slide.
· After machining, be sure to set back to the original position according to mating mark. (HJ-GX uses a joint pin instead of a spring pin.)
· When setting, please ensure symmetry of left / right joint assembly E yoke and F yoke.
· Please note, if set incorrectly, output wheel speed will become uneven.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| K-10GX-A-A |
| K-12GX-A-A |
| K-16GX-A-A |
| K-20GX-A-A |
| K-25GX-A-A |
| K-30GX-A-A |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | φd (Ø) | φd (Ø) | Overall Length (mm) | |
|---|---|---|---|---|---|---|---|---|
368.12 € | 1 | Available | 11 Days | 10 | 10 | 20 | 194~309 | |
384.79 € | 1 | Available | 11 Days | 10 | 12 | 25 | 233~331 | |
420.78 € | 1 | Available | 11 Days | 10 | 16 | 32 | 330~451 | |
534.39 € | 1 | Available | 11 Days | 10 | 20 | 42 | 383~528 | |
623.49 € | 1 | Available | 11 Days | 10 | 25 | 50 | 434~645 | |
870.36 € | 1 | 11 Days | 10 | 30 | 60 | 546~711 |
Loading...
Basic information
| Type | Shaft Type | Body Material | EN 1.1191 Equiv. | Application | Standard |
|---|---|---|---|---|---|
| Shaft hole shape and left (B, T only JIS standards specified) | A | Shaft hole shape and right (B, T only JIS standards specified) | A |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
