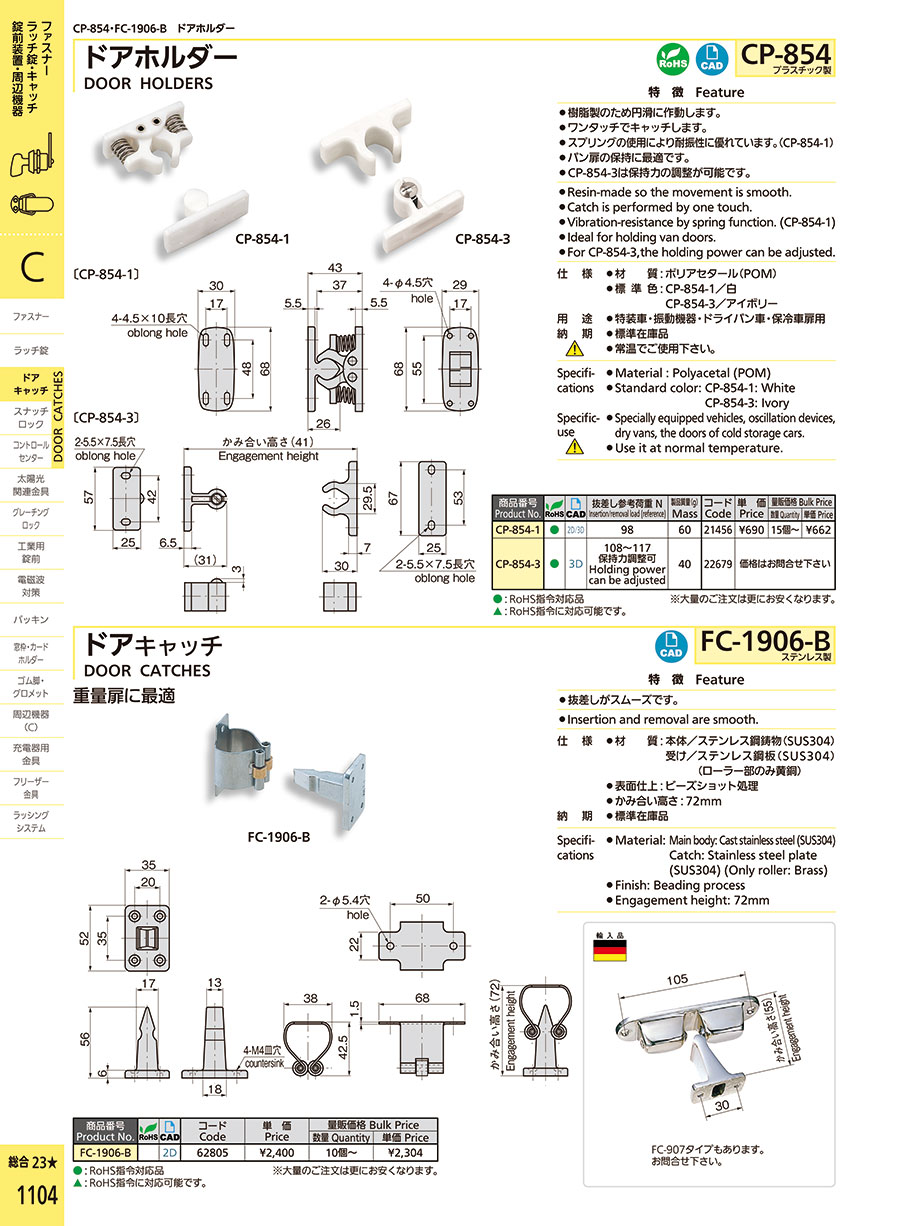

Plastic Door Holder CP-854

Plastic Door Holder CP-854
Door holder has excellent earthquake resistance due to usage of a spring, and operates smoothly due to resin

[Features]
· Made of resin so it works smoothly.
· Catch with one-touch operation.
· Excellent vibration resistance due to usage of spring (CP-854-1).
· Ideal for holding a van door.
· CP-854-3 holding force can be adjusted.
  • Stock

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

CP-854-1

Part Number
CP-854-1
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
RoHS

10.77 €

1 6 Days 10

Loading...

  1. 1

Basic information

Type Catch Length L(mm) 68 Width W(mm) 30
Mounting Method Imposition Mounting Hole Dia. D(mm) 4.5 Operating Environment Standard
Body Material Polyacetal Main Body Surface Treatment NA Height h(mm) 43
Main Body Color White Product Code 21456

This page is Plastic Door Holder CP-854, part number CP-854-1.
You can find the detail information about specifications and dimensions on part number CP-854-1.
