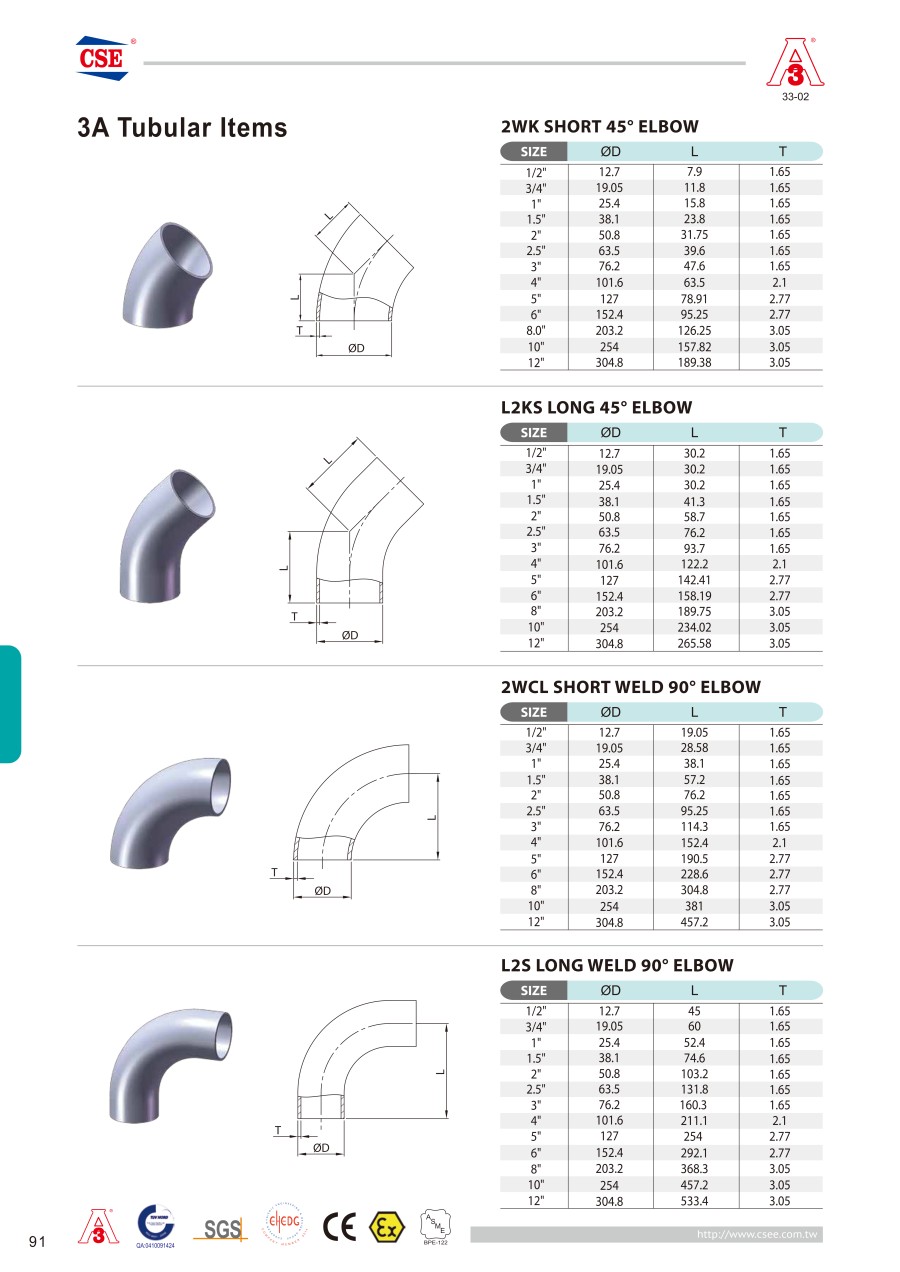

Sanitary Pipe Fittings - 90° Long Elbow - 3A Standard

Sanitary Pipe Fittings - 90° Long Elbow - 3A Standard

CSE

CSE

Parts manufactured by MISUMI-VONA are carefully selected based on customer demands from products made by rapidly-growing Asian manufacturers. Customers can select parts for use in a variety of scenarios. CSE is a Taiwanese company expanding towards a global presence, offering manufacturing of proprietary products, OEM, ODM, exporting, and more. The company has obtained ISO 9001:2008 certification, and is remaining true to its commitment to offer high-quality products with its recently-acquired ISO 9002 certification.

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
L2SA-10
L2SA-15
L2SA-20
L2SA-25
L2SA-30
L2SA-40
L2SAS-10
L2SAS-15
L2SAS-20
L2SAS-25
L2SAS-30
L2SAS-40
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Nominal O.D. D Range Fitting Material Nominal O.D. D
(Ø) 		Applicable Nominal Dia. (inch)

13.38 €

1 17 Days 1.0S～2.0SStainless Steel (EN 1.4301 Equiv.)25.41

15.46 €

1 Quote 1.0S～2.0SStainless Steel (EN 1.4301 Equiv.)38.11 1/2

17.79 €

1 17 Days 1.0S～2.0SStainless Steel (EN 1.4301 Equiv.)50.82

66.79 €

1 5 Days 2.5S～4.5SStainless Steel (EN 1.4301 Equiv.)63.52 1/2

50.33 €

1 17 Days 2.5S～4.5SStainless Steel (EN 1.4301 Equiv.)76.23

62.17 €

1 17 Days 2.5S～4.5SStainless Steel (EN 1.4301 Equiv.)101.64

14.47 €

1 17 Days 1.0S～2.0SStainless Steel (EN 1.4404 Equiv.)25.41

16.98 €

1 17 Days 1.0S～2.0SStainless Steel (EN 1.4404 Equiv.)38.11 1/2

20.80 €

1 17 Days 1.0S～2.0SStainless Steel (EN 1.4404 Equiv.)50.82

45.40 €

1 17 Days 2.5S～4.5SStainless Steel (EN 1.4404 Equiv.)63.52 1/2

62.45 €

1 17 Days 2.5S～4.5SStainless Steel (EN 1.4404 Equiv.)76.23

70.59 €

1 17 Days 2.5S～4.5SStainless Steel (EN 1.4404 Equiv.)101.64

Loading...

  1. 1

Basic information

Type Fitting Fitting Shape 90° Connection Type (between Equal Type/Dia. Fittings) Welded Type
Dia., Center Equal Dia. / concentric Surface Treatment Inner and Outer Surface Polishing Type Standard 3A Standard

Configure

Clear all

12Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Nominal O.D. D Range

    • 1.0S～2.0S
    • 2.5S～4.5S

    Clear

  • Fitting Material

    • Stainless Steel (EN 1.4301 Equiv.)
    • Stainless Steel (EN 1.4404 Equiv.)

    Clear

  • Nominal O.D. D(Ø)

    • 25.4
    • 38.1
    • 50.8
    • 63.5
    • 76.2
    • 101.6

    Clear

  • Applicable Nominal Dia. (inch)

    • 1
    • 1 1/2
    • 2
    • 2 1/2
    • 3
    • 4

    Clear

  • Type

    • L2SA
    • L2SAS

    Clear
