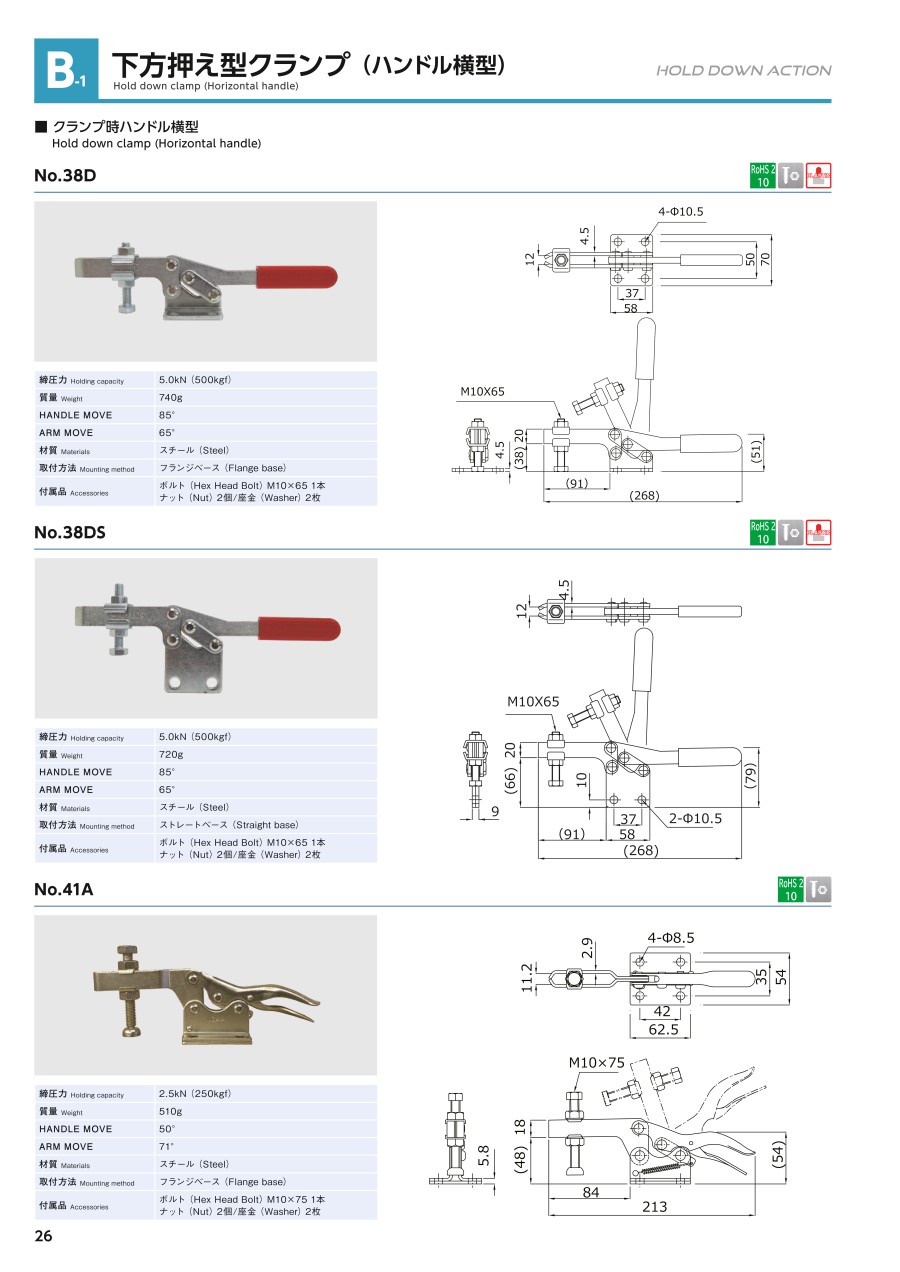

Hold-Down Clamp, No. 41A
Click on this image to zoom in.
Click on this image to zoom in.
- Volume Discount
Optimal for inspection, welding, assembly, and machining jigs.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
NO.41A
Basic information
| Attaching Method | Flange Base | Tightening Force(N) | 2500 | Body Material | Steel |
|---|---|---|---|---|---|
| Clamp Screw Size | M10 | Clamp Screw Material | Steel | Arm Height H(mm) | 67 |
| Arm Length L(mm) | 84 | Tightening Force (Range Selectable)(N) | 2280 to 2999 | Tip Bolt Type | Steel Bolt |
| Tip Bolt Position Adjustment1 | Slide Adjustment |
This page is Hold-Down Clamp, No. 41A, part number NO.41A.
You can find the detail information about specifications and dimensions on part number NO.41A.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
