Ball Lock Pins, self-locking, basic type / Stainless steel

For quick fastening, locking, adjusting, changing and securing. Quickly and easily unlockable for frequently repeated connections.
All versions are corrosion resistant. When using stainless steel 1.4542: high-strength, hardened, abrasion resistant pin with high load capacity.
Compact design with recessed grip.

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Product specification
Part Numbers
Catalog

Ball Lock Pins • self-locking, with standard handle, EH 22370. / EH 22380.

Product Description

Material

Pin part
• Stainless steel 1.4305
• Stainless steel 1.4542, precipitation-hardened
Spring
• Stainless steel

Operation

The balls are unlocked by pressing the button.

Characteristic

Types from stainless steel 1.4542 with marking below the balls.

Notes

Special types on request.

Accessories

Can easily be fitted with retaining cable EH 22400.

Further products

• Ball Lock Pins, self-locking, with standard handle, titanium
• Locating Bushings, for ball lock pins and socket pins
• Locating Bushings, with flange, for ball lock pins and socket pins
• Retaining Cables
• Positioning Bushings, with collar, DIN 172 A
• Positioning Bushings, without collar, DIN 179 A

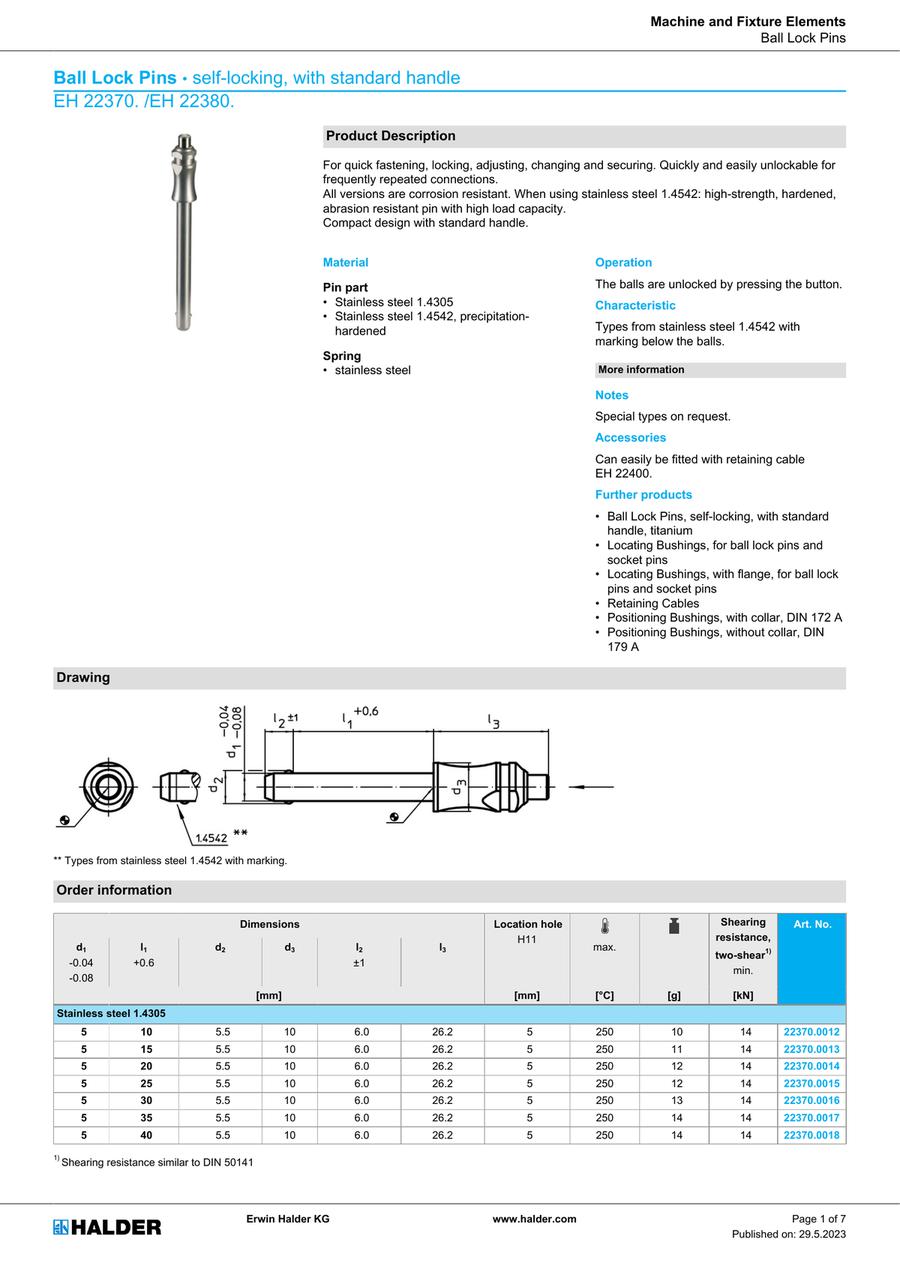

Drawing

** Types from stainless steel 1.4542 with marking.

Order Information

Dimensions						Location hole	Operating temperature range	Weight	Shearing resistance, two-shear¹⁾	Art. No.
d₁	l₁	d₂	d₃	l₂	l₃	H11	max.		min.
-0.04 -0.08	+0.6			±1
[mm]						[mm]	[°C]	[g]	[kN]
Stainless steel 1.4305
5	10	5.5	10	6.0	26.2	5	250	10	14	22370.0012
5	15	5.5	10	6.0	26.2	5	250	11	14	22370.0013
5	20	5.5	10	6.0	26.2	5	250	12	14	22370.0014
5	25	5.5	10	6.0	26.2	5	250	12	14	22370.0015
5	30	5.5	10	6.0	26.2	5	250	13	14	22370.0016
5	35	5.5	10	6.0	26.2	5	250	14	14	22370.0017
5	40	5.5	10	6.0	26.2	5	250	14	14	22370.0018
5	45	5.5	10	6.0	26.2	5	250	15	14	22370.0007
5	50	5.5	10	6.0	26.2	5	250	16	14	22370.0008
5	60	5.5	10	6.0	26.2	5	250	17	14	22370.0009
5	70	5.5	10	6.0	26.2	5	250	19	14	22370.0010
5	80	5.5	10	6.0	26.2	5	250	20	14	22370.0011
6	10	7.0	10	7.0	26.2	6	250	11	21	22370.0022
6	15	7.0	10	7.0	26.2	6	250	12	21	22370.0023
6	20	7.0	10	7.0	26.2	6	250	13	21	22370.0024
6	25	7.0	10	7.0	26.2	6	250	14	21	22370.0025
6	30	7.0	10	7.0	26.2	6	250	15	21	22370.0026
6	35	7.0	10	7.0	26.2	6	250	16	21	22370.0027
6	40	7.0	10	7.0	26.2	6	250	17	21	22370.0028
6	45	7.0	10	7.0	26.2	6	250	18	21	22370.0029
6	50	7.0	10	7.0	26.2	6	250	19	21	22370.0030
6	60	7.0	10	7.0	26.2	6	250	21	21	22370.0019
6	70	7.0	10	7.0	26.2	6	250	23	21	22370.0020
6	80	7.0	10	7.0	26.2	6	250	25	21	22370.0021
8	10	9.5	14	8.2	33.1	8	250	29	38	22370.0032
8	15	9.5	14	8.2	33.1	8	250	31	38	22370.0033
8	20	9.5	14	8.2	33.1	8	250	32	38	22370.0034
8	25	9.5	14	8.2	33.1	8	250	34	38	22370.0035
8	30	9.5	14	8.2	33.1	8	250	36	38	22370.0036
8	35	9.5	14	8.2	33.1	8	250	38	38	22370.0037
8	40	9.5	14	8.2	33.1	8	250	40	38	22370.0038
8	45	9.5	14	8.2	33.1	8	250	42	38	22370.0039
8	50	9.5	14	8.2	33.1	8	250	44	38	22370.0040
8	60	9.5	14	8.2	33.1	8	250	47	38	22370.0031
8	70	9.5	14	8.2	33.1	8	250	51	38	22370.0041
8	80	9.5	14	8.2	33.1	8	250	54	38	22370.0042
8	90	9.5	14	8.2	33.1	8	250	58	38	22370.0043
8	100	9.5	14	8.2	33.1	8	250	62	38	22370.0051
10	15	12.0	14	9.6	33.1	10	250	36	60	22370.0059
10	20	12.0	14	9.6	33.1	10	250	39	60	22370.0044
10	25	12.0	14	9.6	33.1	10	250	42	60	22370.0045
10	30	12.0	14	9.6	33.1	10	250	45	60	22370.0046
10	35	12.0	14	9.6	33.1	10	250	48	60	22370.0047
10	40	12.0	14	9.6	33.1	10	250	51	60	22370.0048
10	45	12.0	14	9.6	33.1	10	250	54	60	22370.0049
10	50	12.0	14	9.6	33.1	10	250	57	60	22370.0050
10	60	12.0	14	9.6	33.1	10	250	63	60	22370.0052
10	70	12.0	14	9.6	33.1	10	250	69	60	22370.0053
10	80	12.0	14	9.6	33.1	10	250	74	60	22370.0054
10	90	12.0	14	9.6	33.1	10	250	80	60	22370.0055
10	100	12.0	14	9.6	33.1	10	250	86	60	22370.0056
10	110	12.0	14	9.6	33.1	10	250	92	60	22370.0057
10	120	12.0	14	9.6	33.1	10	250	98	60	22370.0058
12	20	14.5	20	10.6	39.5	12	250	79	87	22370.0064
12	25	14.5	20	10.6	39.5	12	250	84	87	22370.0065
12	30	14.5	20	10.6	39.5	12	250	88	87	22370.0066
12	35	14.5	20	10.6	39.5	12	250	92	87	22370.0067
12	40	14.5	20	10.6	39.5	12	250	97	87	22370.0068
12	45	14.5	20	10.6	39.5	12	250	101	87	22370.0069
12	50	14.5	20	10.6	39.5	12	250	105	87	22370.0070
12	60	14.5	20	10.6	39.5	12	250	113	87	22370.0072
12	70	14.5	20	10.6	39.5	12	250	122	87	22370.0074
12	80	14.5	20	10.6	39.5	12	250	130	87	22370.0076
12	90	14.5	20	10.6	39.5	12	250	139	87	22370.0060
12	100	14.5	20	10.6	39.5	12	250	147	87	22370.0061
12	110	14.5	20	10.6	39.5	12	250	156	87	22370.0062
12	120	14.5	20	10.6	39.5	12	250	165	87	22370.0063
16	30	19.0	20	14.0	39.5	16	250	123	155	22370.0086
16	35	19.0	20	14.0	39.5	16	250	130	155	22370.0087
16	40	19.0	20	14.0	39.5	16	250	138	155	22370.0088
16	45	19.0	20	14.0	39.5	16	250	146	155	22370.0089
16	50	19.0	20	14.0	39.5	16	250	154	155	22370.0090
16	60	19.0	20	14.0	39.5	16	250	169	155	22370.0092
16	70	19.0	20	14.0	39.5	16	250	185	155	22370.0094
16	80	19.0	20	14.0	39.5	16	250	200	155	22370.0096
16	90	19.0	20	14.0	39.5	16	250	216	155	22370.0097
16	100	19.0	20	14.0	39.5	16	250	232	155	22370.0098
16	110	19.0	20	14.0	39.5	16	250	248	155	22370.0099
16	120	19.0	20	14.0	39.5	16	250	263	155	22370.0100
16	130	19.0	20	14.0	39.5	16	250	278	155	22370.0101
16	140	19.0	20	14.0	39.5	16	250	294	155	22370.0102
16	150	19.0	20	14.0	39.5	16	250	310	155	22370.0103
20	50	25.0	28	20.5	49.9	20	250	301	244	22370.0111
20	60	25.0	28	20.5	49.9	20	250	326	244	22370.0112
20	70	25.0	28	20.5	49.9	20	250	351	244	22370.0113
20	80	25.0	28	20.5	49.9	20	250	375	244	22370.0116
20	90	25.0	28	20.5	49.9	20	250	399	244	22370.0117
20	100	25.0	28	20.5	49.9	20	250	423	244	22370.0120
20	110	25.0	28	20.5	49.9	20	250	448	244	22370.0121
20	120	25.0	28	20.5	49.9	20	250	472	244	22370.0124
20	130	25.0	28	20.5	49.9	20	250	498	244	22370.0125
20	140	25.0	28	20.5	49.9	20	250	520	244	22370.0126
20	150	25.0	28	20.5	49.9	20	250	546	244	22370.0127
25	50	30.8	28	22.0	49.9	25	250	399	386	22370.0129
25	60	30.8	28	22.0	49.9	25	250	437	386	22370.0130
25	70	30.8	28	22.0	49.9	25	250	477	386	22370.0131
25	80	30.8	28	22.0	49.9	25	250	513	386	22370.0132
25	90	30.8	28	22.0	49.9	25	250	551	386	22370.0133
25	100	30.8	28	22.0	49.9	25	250	588	386	22370.0134
25	110	30.8	28	22.0	49.9	25	250	627	386	22370.0135
25	120	30.8	28	22.0	49.9	25	250	664	386	22370.0136
25	130	30.8	28	22.0	49.9	25	250	703	386	22370.0137
25	140	30.8	28	22.0	49.9	25	250	743	386	22370.0138
25	150	30.8	28	22.0	49.9	25	250	779	386	22370.0139
Stainless steel 1.4542, precipitation-hardened
5	10	5.5	10	6.0	26.2	5	250	10	24	22380.0012
5	15	5.5	10	6.0	26.2	5	250	11	24	22380.0013
5	20	5.5	10	6.0	26.2	5	250	11	24	22380.0014
5	25	5.5	10	6.0	26.2	5	250	12	24	22380.0015
5	30	5.5	10	6.0	26.2	5	250	13	24	22380.0016
5	35	5.5	10	6.0	26.2	5	250	14	24	22380.0017
5	40	5.5	10	6.0	26.2	5	250	14	24	22380.0018
5	45	5.5	10	6.0	26.2	5	250	15	24	22380.0007
5	50	5.5	10	6.0	26.2	5	250	16	24	22380.0008
5	60	5.5	10	6.0	26.2	5	250	17	24	22380.0009
5	70	5.5	10	6.0	26.2	5	250	19	24	22380.0010
5	80	5.5	10	6.0	26.2	5	250	20	24	22380.0011
6	10	7.0	10	7.0	26.2	6	250	11	35	22380.0022
6	15	7.0	10	7.0	26.2	6	250	12	35	22380.0023
6	20	7.0	10	7.0	26.2	6	250	13	35	22380.0024
6	25	7.0	10	7.0	26.2	6	250	14	35	22380.0025
6	30	7.0	10	7.0	26.2	6	250	15	35	22380.0026
6	35	7.0	10	7.0	26.2	6	250	16	35	22380.0027
6	40	7.0	10	7.0	26.2	6	250	17	35	22380.0028
6	45	7.0	10	7.0	26.2	6	250	18	35	22380.0029
6	50	7.0	10	7.0	26.2	6	250	19	35	22380.0030
6	60	7.0	10	7.0	26.2	6	250	21	35	22380.0019
6	70	7.0	10	7.0	26.2	6	250	23	35	22380.0020
6	80	7.0	10	7.0	26.2	6	250	25	35	22380.0021
8	10	9.5	14	8.2	33.1	8	250	29	63	22380.0032
8	15	9.5	14	8.2	33.1	8	250	30	63	22380.0033
8	20	9.5	14	8.2	33.1	8	250	32	63	22380.0034
8	25	9.5	14	8.2	33.1	8	250	34	63	22380.0035
8	30	9.5	14	8.2	33.1	8	250	36	63	22380.0036
8	35	9.5	14	8.2	33.1	8	250	38	63	22380.0037
8	40	9.5	14	8.2	33.1	8	250	40	63	22380.0038
8	45	9.5	14	8.2	33.1	8	250	41	63	22380.0039
8	50	9.5	14	8.2	33.1	8	250	43	63	22380.0040
8	60	9.5	14	8.2	33.1	8	250	47	63	22380.0031
8	70	9.5	14	8.2	33.1	8	250	50	63	22380.0041
8	80	9.5	14	8.2	33.1	8	250	54	63	22380.0042
8	90	9.5	14	8.2	33.1	8	250	58	63	22380.0043
8	100	9.5	14	8.2	33.1	8	250	61	63	22380.0051
10	15	12.0	14	9.6	33.1	10	250	36	100	22380.0059
10	20	12.0	14	9.6	33.1	10	250	39	100	22380.0044
10	25	12.0	14	9.6	33.1	10	250	42	100	22380.0045
10	30	12.0	14	9.6	33.1	10	250	45	100	22380.0046
10	35	12.0	14	9.6	33.1	10	250	47	100	22380.0047
10	40	12.0	14	9.6	33.1	10	250	50	100	22380.0048
10	45	12.0	14	9.6	33.1	10	250	53	100	22380.0049
10	50	12.0	14	9.6	33.1	10	250	56	100	22380.0050
10	60	12.0	14	9.6	33.1	10	250	62	100	22380.0052
10	70	12.0	14	9.6	33.1	10	250	68	100	22380.0053
10	80	12.0	14	9.6	33.1	10	250	73	100	22380.0054
10	90	12.0	14	9.6	33.1	10	250	79	100	22380.0055
10	100	12.0	14	9.6	33.1	10	250	85	100	22380.0056
10	110	12.0	14	9.6	33.1	10	250	91	100	22380.0057
10	120	12.0	14	9.6	33.1	10	250	97	100	22380.0058
12	20	14.5	20	10.6	39.5	12	250	78	144	22380.0064
12	25	14.5	20	10.6	39.5	12	250	83	144	22380.0065
12	30	14.5	20	10.6	39.5	12	250	87	144	22380.0066
12	35	14.5	20	10.6	39.5	12	250	91	144	22380.0067
12	40	14.5	20	10.6	39.5	12	250	95	144	22380.0068
12	45	14.5	20	10.6	39.5	12	250	99	144	22380.0069
12	50	14.5	20	10.6	39.5	12	250	104	144	22380.0070
12	60	14.5	20	10.6	39.5	12	250	112	144	22380.0072
12	70	14.5	20	10.6	39.5	12	250	120	144	22380.0074
12	80	14.5	20	10.6	39.5	12	250	129	144	22380.0076
12	90	14.5	20	10.6	39.5	12	250	137	144	22380.0060
12	100	14.5	20	10.6	39.5	12	250	146	144	22380.0061
12	110	14.5	20	10.6	39.5	12	250	154	144	22380.0062
12	120	14.5	20	10.6	39.5	12	250	163	144	22380.0063
16	30	19.0	20	14.0	39.5	16	250	121	257	22380.0086
16	35	19.0	20	14.0	39.5	16	250	129	257	22380.0087
16	40	19.0	20	14.0	39.5	16	250	137	257	22380.0088
16	45	19.0	20	14.0	39.5	16	250	144	257	22380.0089
16	50	19.0	20	14.0	39.5	16	250	153	257	22380.0090
16	60	19.0	20	14.0	39.5	16	250	167	257	22380.0092
16	70	19.0	20	14.0	39.5	16	250	183	257	22380.0094
16	80	19.0	20	14.0	39.5	16	250	198	257	22380.0096
16	90	19.0	20	14.0	39.5	16	250	213	257	22380.0097
16	100	19.0	20	14.0	39.5	16	250	229	257	22380.0098
16	110	19.0	20	14.0	39.5	16	250	242	257	22380.0099
16	120	19.0	20	14.0	39.5	16	250	260	257	22380.0100
16	130	19.0	20	14.0	39.5	16	250	275	257	22380.0101
16	140	19.0	20	14.0	39.5	16	250	291	257	22380.0102
16	150	19.0	20	14.0	39.5	16	250	307	257	22380.0103
20	50	25.0	28	20.5	49.9	20	250	298	403	22380.0111
20	60	25.0	28	20.5	49.9	20	250	323	403	22380.0112
20	70	25.0	28	20.5	49.9	20	250	347	403	22380.0113
20	80	25.0	28	20.5	49.9	20	250	371	403	22380.0116
20	90	25.0	28	20.5	49.9	20	250	394	403	22380.0117
20	100	25.0	28	20.5	49.9	20	250	419	403	22380.0120
20	110	25.0	28	20.5	49.9	20	250	442	403	22380.0121
20	120	25.0	28	20.5	49.9	20	250	467	403	22380.0124
20	130	25.0	28	20.5	49.9	20	250	491	403	22380.0125
20	140	25.0	28	20.5	49.9	20	250	517	403	22380.0126
20	150	25.0	28	20.5	49.9	20	250	540	403	22380.0127
25	50	30.8	28	22.0	49.9	25	250	395	631	22380.0129
25	60	30.8	28	22.0	49.9	25	250	434	631	22380.0130
25	70	30.8	28	22.0	49.9	25	250	471	631	22380.0131
25	80	30.8	28	22.0	49.9	25	250	506	631	22380.0132
25	90	30.8	28	22.0	49.9	25	250	545	631	22380.0133
25	100	30.8	28	22.0	49.9	25	250	585	631	22380.0134
25	110	30.8	28	22.0	49.9	25	250	624	631	22380.0135
25	120	30.8	28	22.0	49.9	25	250	658	631	22380.0136
25	130	30.8	28	22.0	49.9	25	250	696	631	22380.0137
25	140	30.8	28	22.0	49.9	25	250	735	631	22380.0138
25	150	30.8	28	22.0	49.9	25	250	769	631	22380.0139

¹⁾ Shearing resistance similar to DIN 50141

Application Example

Data to be displayed: 30; 45; 60

1
2
3
4
Next >>

Part Number
22370.0007
22370.0008
22370.0009
22370.0010
22370.0011
22370.0012
22370.0013
22370.0014
22370.0015
22370.0016
22370.0017
22370.0018
22370.0019
22370.0020
22370.0021
22370.0022
22370.0023
22370.0024
22370.0025
22370.0026
22370.0027
22370.0028
22370.0029
22370.0030
22370.0031
22370.0032
22370.0033
22370.0034
22370.0035
22370.0036
22370.0037
22370.0038
22370.0039
22370.0040
22370.0041
22370.0042
22370.0043
22370.0044
22370.0045
22370.0046
22370.0047
22370.0048
22370.0049
22370.0050
22370.0051
22370.0052
22370.0053
22370.0054
22370.0055
22370.0056
22370.0057
22370.0058
22370.0059
22370.0060
22370.0061
22370.0062
22370.0063
22370.0064
22370.0065
22370.0066

Related to	Standard Unit Price	Minimum order quantity	Standard Shipping Days ?	RoHS	Type	d1 (mm)	d2 (mm)	d3 (mm)	l1 (mm)	l2 (mm)	l3 (mm)	Location hole (mm)	Shearing resistance, double (kN)	Temperature max. (°C)	Temperature min. (°C)	Material	Handle version	Conflict Minerals free	REACH compliant	B (inch)	Temperature max. (°F)	L (mm)	Nominal dimension	Prop65	RoHS-compliant	H (mm)	d₁ [-0.04, -0.08] (mm)	l₁ [+0.6] (mm)	Location hole [H11] (mm)	Pin part	Branch	Function	Preferential Origin	l₂ [±1] (mm)	Shearing resistance, two-shear (kN)	Weight (g)
-	13.50 €	1	3 Days	10	-	-	5.5	10	-	-	26.2	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	10	250	77.2	d1=5 mm / l1=45 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	10	5	45	5	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	6	14	15
-	13.50 €	1	3 Days	10	-	-	5.5	10	-	-	26.2	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	10	250	82.2	d1=5 mm / l1=50 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	10	5	50	5	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	6	14	16
-	13.97 €	1	3 Days	10	-	-	5.5	10	-	-	26.2	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	10	250	92.2	d1=5 mm / l1=60 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	10	5	60	5	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	6	14	17
-	14.27 €	1	3 Days	10	-	-	5.5	10	-	-	26.2	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	10	250	102.2	d1=5 mm / l1=70 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	10	5	70	5	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	6	14	19
-	14.79 €	1	3 Days	10	-	-	5.5	10	-	-	26.2	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	10	250	112.2	d1=5 mm / l1=80 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	10	5	80	5	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	6	14	20
Data sheet	12.70 €	1	Same day Stock	10	Knob Type	5	5.5	10	10	6	26.2	5	14	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	12.70 €	1	Same day Stock	10	Knob Type	5	5.5	10	15	6	26.2	5	14	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	12.70 €	1	Same day Stock	10	Knob Type	5	5.5	10	20	6	26.2	5	14	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	12.70 €	1	2 Days	10	Knob Type	5	5.5	10	25	6	26.2	5	14	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	13.50 €	1	2 Days	10	Knob Type	5	5.5	10	30	6	26.2	5	14	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
-	13.50 €	1	3 Days	10	-	-	5.5	10	-	-	26.2	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	10	250	67.2	d1=5 mm / l1=35 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	10	5	35	5	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	6	14	14
-	13.50 €	1	4 Days	10	-	-	5.5	10	-	-	26.2	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	10	250	72.2	d1=5 mm / l1=40 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	10	5	40	5	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	6	14	14
-	15.02 €	1	3 Days	10	-	-	7	10	-	-	26.2	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	10	250	93.2	d1=6 mm / l1=60 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	10	6	60	6	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	7	21	21
-	15.77 €	1	3 Days	10	-	-	7	10	-	-	26.2	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	10	250	103.2	d1=6 mm / l1=70 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	10	6	70	6	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	7	21	23
-	16.37 €	1	3 Days	10	-	-	7	10	-	-	26.2	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	10	250	113.2	d1=6 mm / l1=80 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	10	6	80	6	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	7	21	25
Data sheet	12.76 €	1	Same day Stock	10	Knob Type	6	7	10	10	7	26.2	6	21	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	12.76 €	1	Same day Stock	10	Knob Type	6	7	10	15	7	26.2	6	21	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	12.76 €	1	Same day Stock	10	Knob Type	6	7	10	20	7	26.2	6	21	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	12.76 €	1	Same day Stock	10	Knob Type	6	7	10	25	7	26.2	6	21	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	14.33 €	1	Same day Stock	10	Knob Type	6	7	10	30	7	26.2	6	21	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	14.33 €	1	2 Days	10	Knob Type	6	7	10	35	7	26.2	6	21	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	14.33 €	1	Same day Stock	10	Knob Type	6	7	10	40	7	26.2	6	21	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	14.33 €	1	2 Days	10	Knob Type	6	7	10	45	7	26.2	6	21	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	14.33 €	1	2 Days	10	Knob Type	6	7	10	50	7	26.2	6	21	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
-	16.00 €	1	3 Days	10	-	-	9.5	14	-	-	33.1	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	14	250	101.3	d1=8 mm / l1=60 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	14	8	60	8	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	8.2	38	47
-	13.86 €	1	3 Days	10	-	-	9.5	14	-	-	33.1	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	14	250	51.3	d1=8 mm / l1=10 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	14	8	10	8	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	8.2	38	29
-	13.86 €	1	3 Days	10	-	-	9.5	14	-	-	33.1	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	14	250	56.3	d1=8 mm / l1=15 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	14	8	15	8	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	8.2	38	31
Data sheet	13.86 €	1	3 Days	10	Knob Type	8	9.6	14	20	8.2	33.1	8	38	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	13.86 €	1	2 Days	10	Knob Type	8	9.6	14	25	8.2	33.1	8	38	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	15.37 €	1	2 Days	10	Knob Type	8	9.6	14	30	8.2	33.1	8	38	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	15.37 €	1	Same day Stock	10	Knob Type	8	9.6	14	35	8.2	33.1	8	38	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	15.37 €	1	2 Days	10	Knob Type	8	9.6	14	40	8.2	33.1	8	38	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	15.37 €	1	2 Days	10	Knob Type	8	9.6	14	45	8.2	33.1	8	38	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	15.37 €	1	Same day Stock	10	Knob Type	8	9.6	14	50	8.2	33.1	8	38	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
-	16.60 €	1	3 Days	10	-	-	9.5	14	-	-	33.1	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	14	250	111.3	d1=8 mm / l1=70 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	14	8	70	8	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	8.2	38	51
-	16.60 €	1	3 Days	10	-	-	9.5	14	-	-	33.1	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	14	250	121.3	d1=8 mm / l1=80 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	14	8	80	8	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	8.2	38	54
-	17.15 €	1	3 Days	10	-	-	9.5	14	-	-	33.1	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	14	250	131.3	d1=8 mm / l1=90 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	14	8	90	8	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	8.2	38	58
Data sheet	21.07 €	1	2 Days	10	Knob Type	10	12	14	20	9.6	33.1	10	60	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	21.07 €	1	2 Days	10	Knob Type	10	12	14	25	9.6	33.1	10	60	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	22.16 €	1	2 Days	10	Knob Type	10	12	14	30	9.6	33.1	10	60	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	22.16 €	1	2 Days	10	Knob Type	10	12	14	35	9.6	33.1	10	60	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	22.16 €	1	Same day Stock	10	Knob Type	10	12	14	40	9.6	33.1	10	60	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	22.16 €	1	2 Days	10	Knob Type	10	12	14	45	9.6	33.1	10	60	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	22.16 €	1	2 Days	10	Knob Type	10	12	14	50	9.6	33.1	10	60	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
-	17.68 €	1	3 Days	10	-	-	9.5	14	-	-	33.1	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	14	250	141.3	d1=8 mm / l1=100 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	14	8	100	8	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	8.2	38	62
Data sheet	23.43 €	1	2 Days	10	Knob Type	10	12	14	60	9.6	33.1	10	60	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
-	23.43 €	1	3 Days	10	-	-	12	14	-	-	33.1	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	14	250	112.7	d1=10 mm / l1=70 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	14	10	70	10	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	9.6	60	69
-	23.43 €	1	3 Days	10	-	-	12	14	-	-	33.1	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	14	250	122.7	d1=10 mm / l1=80 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	14	10	80	10	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	9.6	60	74
-	23.90 €	1	3 Days	10	-	-	12	14	-	-	33.1	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	14	250	132.7	d1=10 mm / l1=90 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	14	10	90	10	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	9.6	60	80
-	23.90 €	1	3 Days	10	-	-	12	14	-	-	33.1	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	14	250	142.7	d1=10 mm / l1=100 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	14	10	100	10	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	9.6	60	86
-	24.55 €	1	3 Days	10	-	-	12	14	-	-	33.1	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	14	250	152.7	d1=10 mm / l1=110 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	14	10	110	10	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	9.6	60	92
-	25.23 €	1	3 Days	10	-	-	12	14	-	-	33.1	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	14	250	162.7	d1=10 mm / l1=120 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	14	10	120	10	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	9.6	60	98
-	21.07 €	1	3 Days	10	-	-	12	14	-	-	33.1	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	14	250	57.7	d1=10 mm / l1=15 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	14	10	15	10	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	9.6	60	36
-	25.11 €	1	3 Days	10	-	-	14.5	20	-	-	39.5	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	20	250	140.1	d1=12 mm / l1=90 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	20	12	90	12	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	10.6	87	139
-	25.70 €	1	3 Days	10	-	-	14.5	20	-	-	39.5	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	20	250	150.1	d1=12 mm / l1=100 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	20	12	100	12	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	10.6	87	147
-	26.62 €	1	3 Days	10	-	-	14.5	20	-	-	39.5	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	20	250	160.1	d1=12 mm / l1=110 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	20	12	110	12	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	10.6	87	156
-	27.90 €	1	3 Days	10	-	-	14.5	20	-	-	39.5	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	20	250	170.1	d1=12 mm / l1=120 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	20	12	120	12	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	10.6	87	165
-	21.47 €	1	3 Days	10	-	-	14.5	20	-	-	39.5	-	-	250	-	-	-	Free from Conflict Minerals	Does not contain SVHC substances	20	250	70.1	d1=12 mm / l1=20 mm / Stainless steel 1.4305	Does not contain Proposition 65 substances	RoHS compliant	20	12	20	12	Stainless steel 1.4305	movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general	position / secure / block / connect / latch / readjust	CE	10.6	87	79
Data sheet	21.47 €	4	2 Days	10	Knob Type	12	14.5	20	25	10.6	39.5	12	87	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Data sheet	22.44 €	1	Same day Stock	10	Knob Type	12	14.5	20	30	10.6	39.5	12	87	-	250	Stainless steel 1.4305	Recessed Grip	yes	yes	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

1
2
3
4
Next >>

Products homepage

Basic information

Spring	Stainless steel

Configure

208Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.

The part number is completed.

Stock

- Show only stock items
Clear

Basic Attributes

Type
- Knob Type
Clear
d1(mm)
5

6

8

10

12

16

20
Clear
d2(mm)
5.5

7

9.5

9.6

12

14.5

19

25

30.8
Clear
d3(mm)
10

14

20

28
Clear
l1(mm)
10

15

20

25

30

35

40

45

50

60

70

80

100

120
Clear
l2(mm)
- 6
- 7
- 8.2
- 9.6
- 10.6
- 14
- 20.5
Clear
l3(mm)
26.2

33.1

39.5

49.9

50.1
Clear
Location hole(mm)
- 5
- 6
- 8
- 10
- 12
- 16
- 20
Clear
Shearing resistance, double(kN)
14

21

24

35

38

60

63

87

100

144

155

244

257

403
Clear
Temperature max.(°C)
- 250
Clear
Temperature min.(°C)
- 250
Clear
Material
- Stainless steel 1.4305
- Stainless steel 1.4542, precipitation-hardened
Clear
Handle version
- Recessed Grip
Clear
Conflict Minerals free
- Free from Conflict Minerals
- yes
Clear
REACH compliant
- Does not contain SVHC substances
- yes
Clear
B(inch)
10

14

20

28
Clear
Temperature max.(°F)
- 250
Clear
L(mm)
51.3

56.3

57.7

67.2

70.1

72.2

77.2

82.2

92.2

93.2

101.3

102.2

103.2

111.3

112.2

112.7

113.2

120.4

121.3

121.9

122.7

131.3

131.9

132.7

140.1

140.4

141.3

141.9

142.7

143.5

150.1

151.9

152.7

153.5

160.1

160.4

161.9

162.7

163.5

170.1

171.9

173.5

180.4

181.9

183.5

191.9

193.5

200.4

201.9

203.5

210.4

211.9

220.4

221.9
Clear
Nominal dimension
d1=5 mm / l1=35 mm / Stainless steel 1.4305

d1=5 mm / l1=35 mm / Stainless steel 1.4542, precipitation-hardened

d1=5 mm / l1=40 mm / Stainless steel 1.4305

d1=5 mm / l1=40 mm / Stainless steel 1.4542, precipitation-hardened

d1=5 mm / l1=45 mm / Stainless steel 1.4305

d1=5 mm / l1=45 mm / Stainless steel 1.4542, precipitation-hardened

d1=5 mm / l1=50 mm / Stainless steel 1.4305

d1=5 mm / l1=50 mm / Stainless steel 1.4542, precipitation-hardened

d1=5 mm / l1=60 mm / Stainless steel 1.4305

d1=5 mm / l1=60 mm / Stainless steel 1.4542, precipitation-hardened

d1=5 mm / l1=70 mm / Stainless steel 1.4305

d1=5 mm / l1=70 mm / Stainless steel 1.4542, precipitation-hardened

d1=5 mm / l1=80 mm / Stainless steel 1.4305

d1=5 mm / l1=80 mm / Stainless steel 1.4542, precipitation-hardened

d1=6 mm / l1=60 mm / Stainless steel 1.4305

d1=6 mm / l1=60 mm / Stainless steel 1.4542, precipitation-hardened

d1=6 mm / l1=70 mm / Stainless steel 1.4305

d1=6 mm / l1=70 mm / Stainless steel 1.4542, precipitation-hardened

d1=6 mm / l1=80 mm / Stainless steel 1.4305

d1=6 mm / l1=80 mm / Stainless steel 1.4542, precipitation-hardened

d1=8 mm / l1=10 mm / Stainless steel 1.4305

d1=8 mm / l1=10 mm / Stainless steel 1.4542, precipitation-hardened

d1=8 mm / l1=15 mm / Stainless steel 1.4305

d1=8 mm / l1=15 mm / Stainless steel 1.4542, precipitation-hardened

d1=8 mm / l1=60 mm / Stainless steel 1.4305

d1=8 mm / l1=60 mm / Stainless steel 1.4542, precipitation-hardened

d1=8 mm / l1=70 mm / Stainless steel 1.4305

d1=8 mm / l1=70 mm / Stainless steel 1.4542, precipitation-hardened

d1=8 mm / l1=80 mm / Stainless steel 1.4305

d1=8 mm / l1=80 mm / Stainless steel 1.4542, precipitation-hardened

d1=8 mm / l1=90 mm / Stainless steel 1.4305

d1=8 mm / l1=90 mm / Stainless steel 1.4542, precipitation-hardened

d1=8 mm / l1=100 mm / Stainless steel 1.4305

d1=8 mm / l1=100 mm / Stainless steel 1.4542, precipitation-hardened

d1=10 mm / l1=15 mm / Stainless steel 1.4305

d1=10 mm / l1=15 mm / Stainless steel 1.4542, precipitation-hardened

d1=10 mm / l1=70 mm / Stainless steel 1.4305

d1=10 mm / l1=70 mm / Stainless steel 1.4542, precipitation-hardened

d1=10 mm / l1=80 mm / Stainless steel 1.4305

d1=10 mm / l1=80 mm / Stainless steel 1.4542, precipitation-hardened

d1=10 mm / l1=90 mm / Stainless steel 1.4305

d1=10 mm / l1=90 mm / Stainless steel 1.4542, precipitation-hardened

d1=10 mm / l1=100 mm / Stainless steel 1.4305

d1=10 mm / l1=100 mm / Stainless steel 1.4542, precipitation-hardened

d1=10 mm / l1=110 mm / Stainless steel 1.4305

d1=10 mm / l1=110 mm / Stainless steel 1.4542, precipitation-hardened

d1=10 mm / l1=120 mm / Stainless steel 1.4305

d1=10 mm / l1=120 mm / Stainless steel 1.4542, precipitation-hardened

d1=12 mm / l1=20 mm / Stainless steel 1.4305

d1=12 mm / l1=20 mm / Stainless steel 1.4542, precipitation-hardened

d1=12 mm / l1=90 mm / Stainless steel 1.4305

d1=12 mm / l1=90 mm / Stainless steel 1.4542, precipitation-hardened

d1=12 mm / l1=100 mm / Stainless steel 1.4305

d1=12 mm / l1=100 mm / Stainless steel 1.4542, precipitation-hardened

d1=12 mm / l1=110 mm / Stainless steel 1.4305

d1=12 mm / l1=110 mm / Stainless steel 1.4542, precipitation-hardened

d1=12 mm / l1=120 mm / Stainless steel 1.4305

d1=12 mm / l1=120 mm / Stainless steel 1.4542, precipitation-hardened

d1=16 mm / l1=90 mm / Stainless steel 1.4305

d1=16 mm / l1=90 mm / Stainless steel 1.4542, precipitation-hardened

d1=16 mm / l1=100 mm / Stainless steel 1.4305

d1=16 mm / l1=100 mm / Stainless steel 1.4542, precipitation-hardened

d1=16 mm / l1=110 mm / Stainless steel 1.4305

d1=16 mm / l1=110 mm / Stainless steel 1.4542, precipitation-hardened

d1=16 mm / l1=120 mm / Stainless steel 1.4305

d1=16 mm / l1=120 mm / Stainless steel 1.4542, precipitation-hardened

d1=16 mm / l1=130 mm / Stainless steel 1.4305

d1=16 mm / l1=130 mm / Stainless steel 1.4542, precipitation-hardened

d1=16 mm / l1=140 mm / Stainless steel 1.4305

d1=16 mm / l1=140 mm / Stainless steel 1.4542, precipitation-hardened

d1=16 mm / l1=150 mm / Stainless steel 1.4305

d1=16 mm / l1=150 mm / Stainless steel 1.4542, precipitation-hardened

d1=20 mm / l1=50 mm / Stainless steel 1.4305

d1=20 mm / l1=50 mm / Stainless steel 1.4542, precipitation-hardened

d1=20 mm / l1=70 mm / Stainless steel 1.4305

d1=20 mm / l1=70 mm / Stainless steel 1.4542, precipitation-hardened

d1=20 mm / l1=90 mm / Stainless steel 1.4305

d1=20 mm / l1=90 mm / Stainless steel 1.4542, precipitation-hardened

d1=20 mm / l1=110 mm / Stainless steel 1.4305

d1=20 mm / l1=110 mm / Stainless steel 1.4542, precipitation-hardened

d1=20 mm / l1=130 mm / Stainless steel 1.4305

d1=20 mm / l1=130 mm / Stainless steel 1.4542, precipitation-hardened

d1=20 mm / l1=140 mm / Stainless steel 1.4305

d1=20 mm / l1=140 mm / Stainless steel 1.4542, precipitation-hardened

d1=20 mm / l1=150 mm / Stainless steel 1.4305

d1=20 mm / l1=150 mm / Stainless steel 1.4542, precipitation-hardened

d1=25 mm / l1=50 mm / Stainless steel 1.4305

d1=25 mm / l1=50 mm / Stainless steel 1.4542, precipitation-hardened

d1=25 mm / l1=60 mm / Stainless steel 1.4305

d1=25 mm / l1=60 mm / Stainless steel 1.4542, precipitation-hardened

d1=25 mm / l1=70 mm / Stainless steel 1.4305

d1=25 mm / l1=70 mm / Stainless steel 1.4542, precipitation-hardened

d1=25 mm / l1=80 mm / Stainless steel 1.4305

d1=25 mm / l1=80 mm / Stainless steel 1.4542, precipitation-hardened

d1=25 mm / l1=90 mm / Stainless steel 1.4305

d1=25 mm / l1=90 mm / Stainless steel 1.4542, precipitation-hardened

d1=25 mm / l1=100 mm / Stainless steel 1.4305

d1=25 mm / l1=100 mm / Stainless steel 1.4542, precipitation-hardened

d1=25 mm / l1=110 mm / Stainless steel 1.4305

d1=25 mm / l1=110 mm / Stainless steel 1.4542, precipitation-hardened

d1=25 mm / l1=120 mm / Stainless steel 1.4305

d1=25 mm / l1=120 mm / Stainless steel 1.4542, precipitation-hardened

d1=25 mm / l1=130 mm / Stainless steel 1.4305

d1=25 mm / l1=130 mm / Stainless steel 1.4542, precipitation-hardened

d1=25 mm / l1=140 mm / Stainless steel 1.4305

d1=25 mm / l1=140 mm / Stainless steel 1.4542, precipitation-hardened

d1=25 mm / l1=150 mm / Stainless steel 1.4305

d1=25 mm / l1=150 mm / Stainless steel 1.4542, precipitation-hardened
Clear
Prop65
- Does not contain Proposition 65 substances
Clear
RoHS-compliant
- RoHS compliant
Clear
H(mm)
10

14

20

28
Clear
d₁ [-0.04, -0.08](mm)
- 5
- 6
- 8
- 10
- 12
- 16
- 20
- 25
Clear
l₁ [+0.6](mm)
10

15

20

35

40

45

50

60

70

80

90

100

110

120

130

140

150
Clear
Location hole [H11](mm)
- 5
- 6
- 8
- 10
- 12
- 16
- 20
- 25
Clear
Pin part
- Stainless steel 1.4305
- Stainless steel 1.4542, precipitation-hardened
Clear
Branch
- movie, theatre, music, lighting / automotive suppliers / special vehicles / structures / profile systems, handling technology / aerospace / plant, apparatus and equipment construction / machine construction, general
Clear
Function
- position / secure / block / connect / latch / readjust
Clear
Preferential Origin
- CE
Clear
l₂ [±1](mm)
- 6
- 7
- 8.2
- 9.6
- 10.6
- 14
- 20.5
- 22
Clear
Shearing resistance, two-shear(kN)
14

21

24

35

38

60

63

87

100

144

155

244

257

386

403

631
Clear
Type
- 22370
- 22380
- 22400
- 4210
- 4212
- 4213
Clear
Filter by CAD data type
- 3D
Clear
