Space Saving Vacuum Ejector / Vacuum Pump System, ZQ
- Promotional pricing ends 30/11/2024
ZQ Series space saving vacuum ejector and pump system.
[Features]
· Easy-to-use vacuum pressure switch.
· Push button type for easier operation.
· Can copy up to 10 switches simultaneously.
· Settings for the master side (copy source) sensor can be copied to slave side sensors.
· Reduces the amount of time required for setting and helps prevent setting mistakes.
· Body format: for single units (ZQ1000U) / for manifold type (ZQ1000M).
[Features]
· Easy-to-use vacuum pressure switch.
· Push button type for easier operation.
· Can copy up to 10 switches simultaneously.
· Settings for the master side (copy source) sensor can be copied to slave side sensors.
· Reduces the amount of time required for setting and helps prevent setting mistakes.
· Body format: for single units (ZQ1000U) / for manifold type (ZQ1000M).
(i)Remark
- The product images are representative images only. Refer to the manufacturer's catalog for shape details.

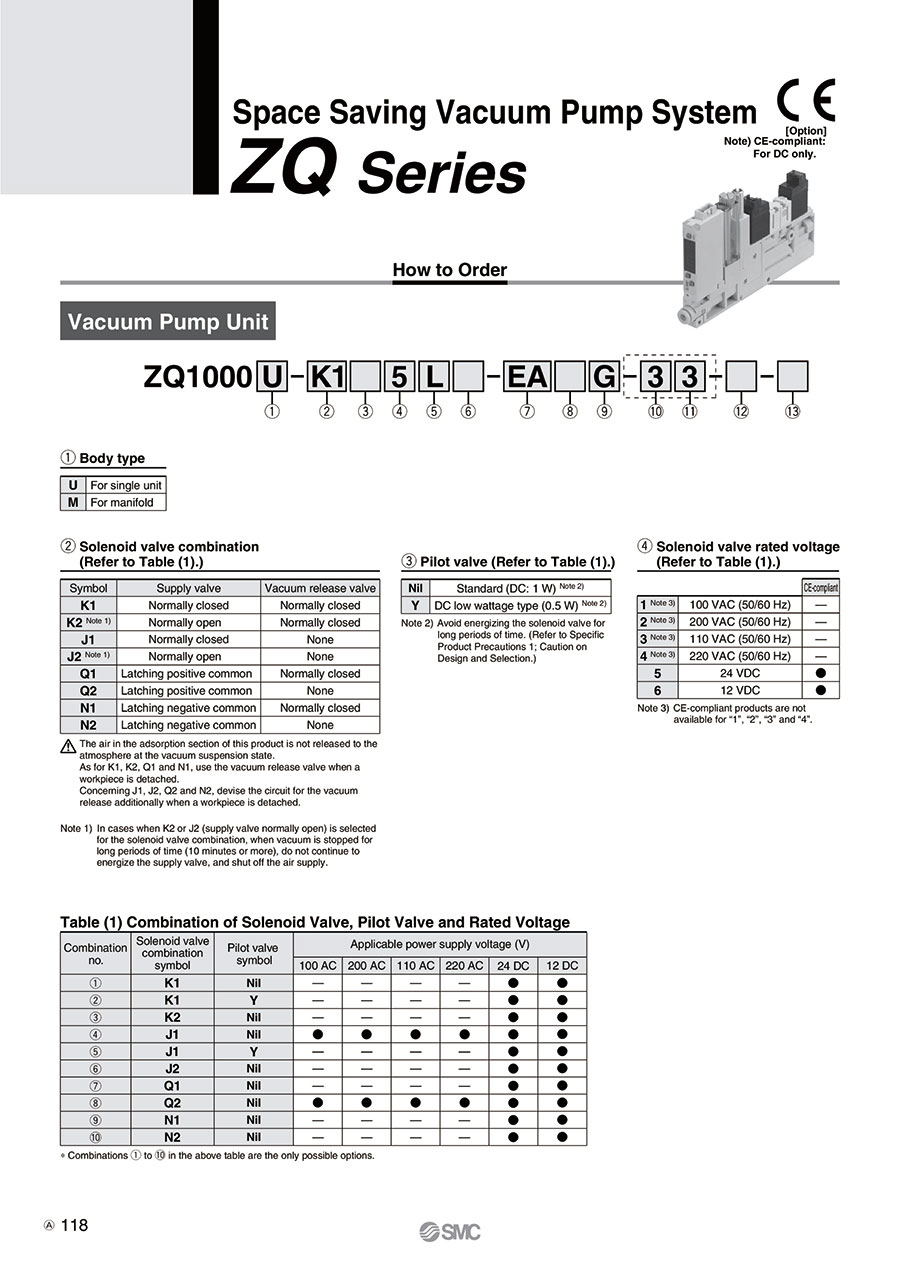

Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
ZQ1000U-K15LO-EC-33-Q
- Product data
- CAD data not available
Basic information
| Type | Unit | Additional Function | Silencers / Filter | Ultimate Vacuum(kPa) | 0 to -101.3 |
|---|---|---|---|---|---|
| Vacuum Port Connecting Port Shape | Single-Action Coupling | Vacuum Port One-Touch Fitting Size | Ø6 | Air Supply Port Connecting Port Shape | Single-Action Coupling |
| Air Supply Port One-Touch Fitting Size | Ø6 | Application | Single Item | Operating Pressure Range(MPa) | 0.3::0.5 |
| Operating Temperature Range(°C) | 5::50 | Main Body Material | Stainless Steel | Combination of supply valve and release valve | Normally closed / normally closed |
| Electrical entry | L-type plug connector, without connector (with light / surge voltage suppressor) | Output specifications | NPN open collector 1 output + analog voltage (0 to -101 kPa) | Unit specifications | With unit selection function |
| Solenoid valve rated voltage | 24 V DC | Vacuum switch electrical entry | Without connector | CE-marked | CE-marked |
| Bracket A | With bracket A | Function | Standard type (1 W for DC) | Manual override | Non-locking push type |
This page is Space Saving Vacuum Ejector / Vacuum Pump System, ZQ, part number ZQ1000U-K15LO-EC-33-Q.
You can find the detail information about specifications and dimensions on part number ZQ1000U-K15LO-EC-33-Q.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
