Refrigerated Air Dryer, Refrigerant R407C (HFC) High Temperature Air Inlet, IDU□E Series
[Features]
· Removes the vapor from the moist compressed air delivered by the compressor and prevents it from causing the pneumatic equipment to fail.
· Improved corrosion resistance with the use of stainless-steel heat exchanger.
(i)Remark
- ■ SMC Product Line
Webpages for products currently without individual pages on this site will be released on an ad-hoc basis.
■ Products Planned for Online Release
Air cylinder-related product pages will be released on this site on an ad-hoc basis.
CQ2/MG types, etc., are already available.
*Vacuum equipment, FRLs, solenoid valves, etc., will also be released on dedicated pages on this site on an ad-hoc basis.
*The information above is correct as of December 2018. - See catalog for specification details.
- Product images may be representative images. Refer to the manufacturer's catalog for shape details.

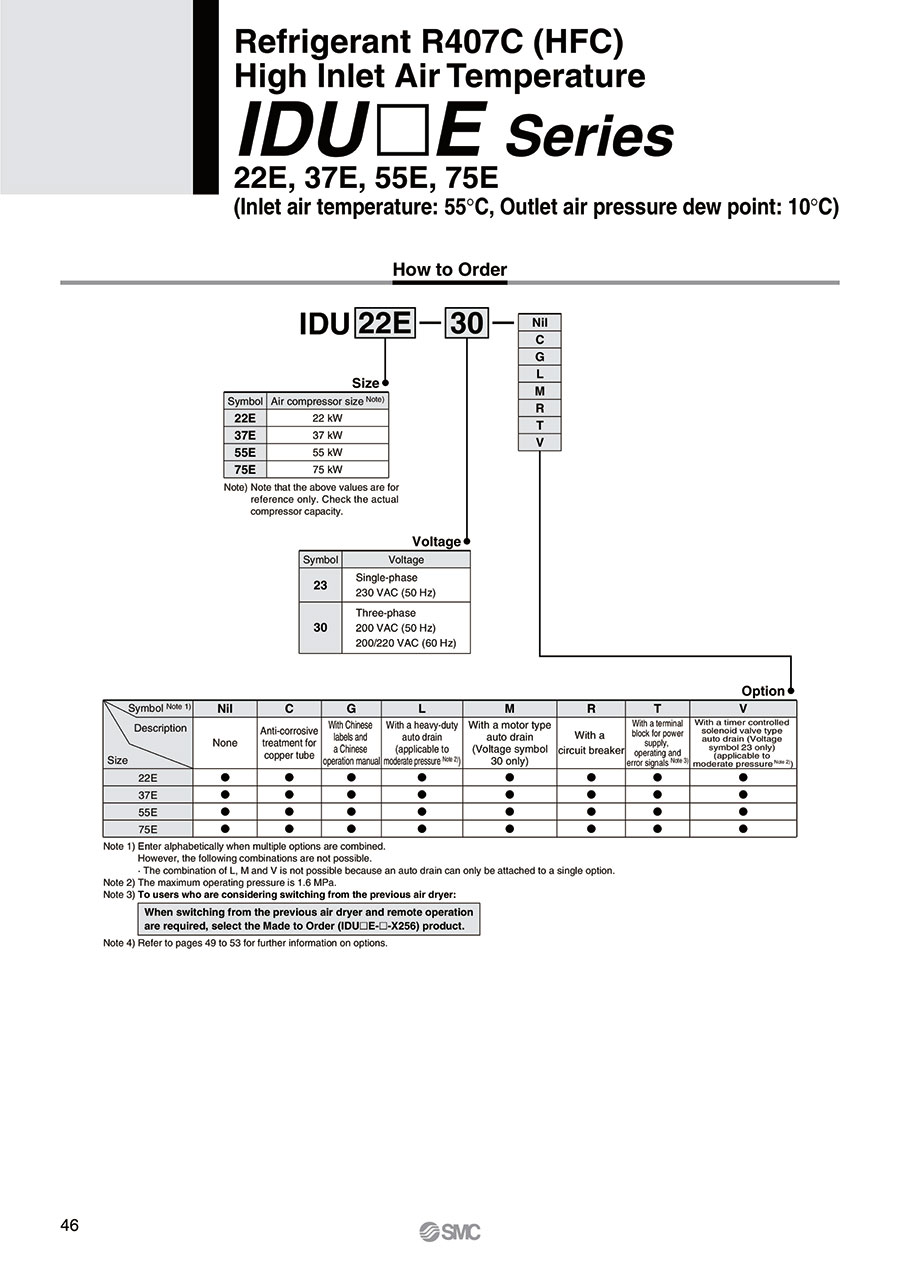

Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| IDU22E-23 |
| IDU22E-23-CT |
| IDU22E-30-L |
| IDU55E-30 |
| IDU55E-30-CL |
| IDU55E-30-L |
| IDU75E-30 |
| IDU75E-30-L |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Air Inlet Flow Rate [Distinction] (l/min) | Air Inlet Flow (l/min) | Supply Side, Nominal Designation of Piping Thread | Control SideNominal Pipe Threads | Power Supply Voltage | Air Compressor Size | Auto drain | Copper Tube Anti-rust Processing | Operation, Terminal block for abnormal signal takeout | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
5,372.34 € | 1 | 26 Days | Up to 5000 | 3,900 / 4,300 | 1 | 1 | Single-phase 230 V AC (50 Hz) | 22 kW | None | None | None | ||
6,681.27 € | 1 | 26 Days | Up to 5000 | 3,900 / 4,300 | 1 | 1 | Single-phase 230 V AC (50 Hz) | 22 kW | None | Yes | Yes | ||
5,643.42 € | 1 | 26 Days | Up to 5000 | 3,900 / 4,300 | 1 | 1 | Three-phase 200 V AC (50 Hz) / 200/220 V AC (60 Hz) | 22 kW | With heavy-duty auto drain | None | None | ||
14,619.97 € | 1 | Quote | More than 5000 | 8,400 / 9,800 | 2 | 2 | Three-phase 200 V AC (50 Hz) / 200/220 V AC (60 Hz) | 55 kW | None | None | None | ||
16,099.26 € | 1 | Quote | More than 5000 | 8,400 / 9,800 | 2 | 2 | Three-phase 200 V AC (50 Hz) / 200/220 V AC (60 Hz) | 55 kW | With heavy-duty auto drain | Yes | None | ||
14,884.34 € | 1 | Quote | More than 5000 | 8,400 / 9,800 | 2 | 2 | Three-phase 200 V AC (50 Hz) / 200/220 V AC (60 Hz) | 55 kW | With heavy-duty auto drain | None | None | ||
18,294.48 € | 1 | Quote | More than 5000 | 11,000 / 12,500 | 2 | 2 | Three-phase 200 V AC (50 Hz) / 200/220 V AC (60 Hz) | 75 kW | None | None | None | ||
18,567.39 € | 1 | Quote | More than 5000 | 11,000 / 12,500 | 2 | 2 | Three-phase 200 V AC (50 Hz) / 200/220 V AC (60 Hz) | 75 kW | With heavy-duty auto drain | None | None |
Loading...
Basic information
| Type | Dryer | Method | Refrigerating type (air-cooling specification) | Shape | Standard |
|---|---|---|---|---|---|
| Exit Air Atmospheric Pressure Dew Point(°C) | 10 | Supply Side, Connection Type | R | Air Temperature at the Inlet Port(°C) | 55 |
| Air Pressure at the Inlet Port Side(MPa) | 0.7 | Control Side Connection Types | R | Leakage Circuit Breaker | None |
| Chinese nameplate, Chinese operation manual | None |
Configure
Basic Attributes
-
Air Inlet Flow Rate [Distinction](l/min)
-
Air Inlet Flow(l/min)
-
Supply Side, Nominal Designation of Piping Thread
- 1
- 2
-
Control SideNominal Pipe Threads
- 1
- 2
-
Power Supply Voltage
- Three-phase 200 V AC (50 Hz) / 200/220 V AC (60 Hz)
- Single-phase 230 V AC (50 Hz)
-
Air Compressor Size
- 22 kW
- 55 kW
- 75 kW
-
Auto drain
- None
- With heavy-duty auto drain
-
Copper Tube Anti-rust Processing
- None
- Yes
-
Operation, Terminal block for abnormal signal takeout
- None
- Yes
-
Type
- IDU22E
- IDU55E
- IDU75E
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 26 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
