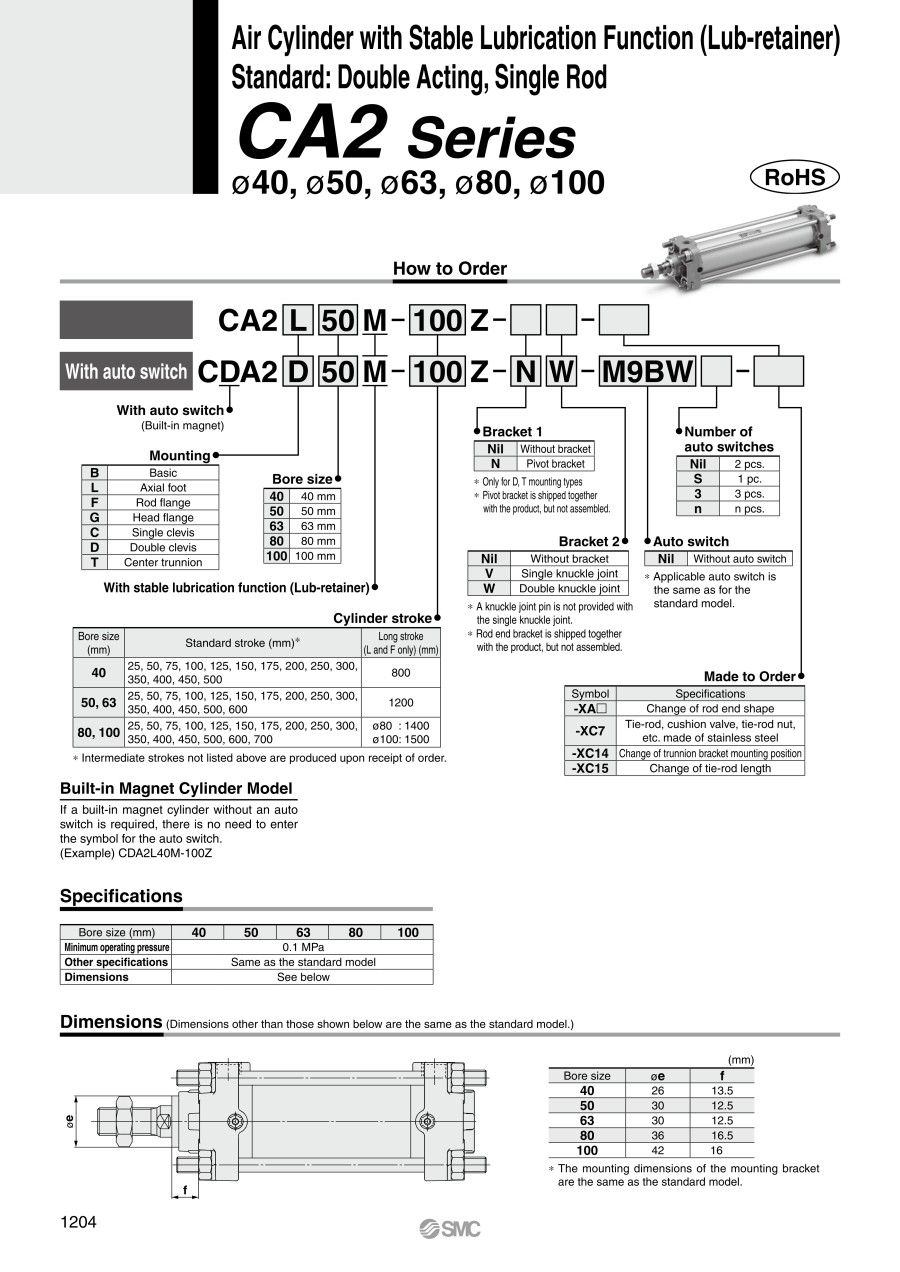

Air Cylinder With Lubrication Retainer (Lube-Retainer), Standard Type, Double Acting, Single Rod CA2 Series
·Durability is improved by forming a grease film on the surface of the piston rod.
·Prevents powder and foreign matter from entering
·The number of operations can be improved even in a general environment.
(i)Remark
- ■ SMC Air Cylinder Product Selection and Technical Information
Please check the special page from here.
■About SMC product handling
products without a web page will be released one by one.
If you have a fixed model number, please request a quote / order from here. - Refer to the manufacturer's catalog for specification and material details.
- Product images may be representative images only. Please refer to the manufacturer's catalog for shape details.
- CAD data is not available for some model numbers.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| CA2B50M-300Z |
| CA2F80M-750Z |
| CA2T63M-100Z |
| CDA2B50M-200Z |
| CDA2B80M-255Z-M9NL |
| CDA2B100M-150Z |
| CDA2D50M-500Z |
| CDA2F63M-250Z |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Cylinder I.D: D (Ø) | Stroke: L (mm) | Operating Temperature (℃) | Specifications | Auto Switch | Lead Wire Length (m) | Number of Switches | Type of Mount Support | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
302.65 € | 1 | 26 Days | 50 | 300 | -10～70 | Without magnet | - | - | - | Basic type | ||
571.31 € | 1 | 26 Days | 80 | 750 | -10～70 | Without magnet | - | - | - | Rod-end flange type | ||
319.87 € | 1 | 26 Days | 63 | 100 | -10～70 | Without magnet | - | - | - | Center trunnion type | ||
279.05 € | 1 | 26 Days | 50 | 200 | -10～70 | Built-in magnet | Without auto switch | - | - | Basic type | ||
452.89 € | 1 | 26 Days | 80 | 255 | -10～60 | Built-in magnet | M9N | 3 | 2 | Basic type | ||
396.60 € | 1 | 26 Days | 100 | 150 | -10～70 | Built-in magnet | Without auto switch | - | - | Basic type | ||
378.19 € | 1 | 26 Days | 50 | 500 | -10～70 | Built-in magnet | Without auto switch | - | - | Double clevis type | ||
348.48 € | 1 | 26 Days | 63 | 250 | -10～70 | Built-in magnet | Without auto switch | - | - | Rod-end flange type |
Loading...
Basic information
| Cylinder Operation Method | Double Acting | Rod Operation Method | Single Rods | Main Body Shape | Standard |
|---|---|---|---|---|---|
| Additional Function | Standard | Environment, Applications | Standard | End Locking | NA |
| Valves | NA | Operating Pressure(MPa) | 0.1 to 1 | Swinging Receiving Metal | Without bracket |
| Rod Tip Metal Fitting | Without bracket | Connector type | None |
Configure
Basic Attributes
-
Cylinder I.D: D(Ø)
-
Stroke: L(mm)
-
Specifications
- Built-in magnet
- Without magnet
-
Auto Switch
-
Lead Wire Length(m)
- 3
-
Number of Switches
-
Type of Mount Support
- Basic type
- Center trunnion type
- Double clevis type
- Rod-end flange type
-
Type
- CA2□M
- CDA2□M
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 26 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
