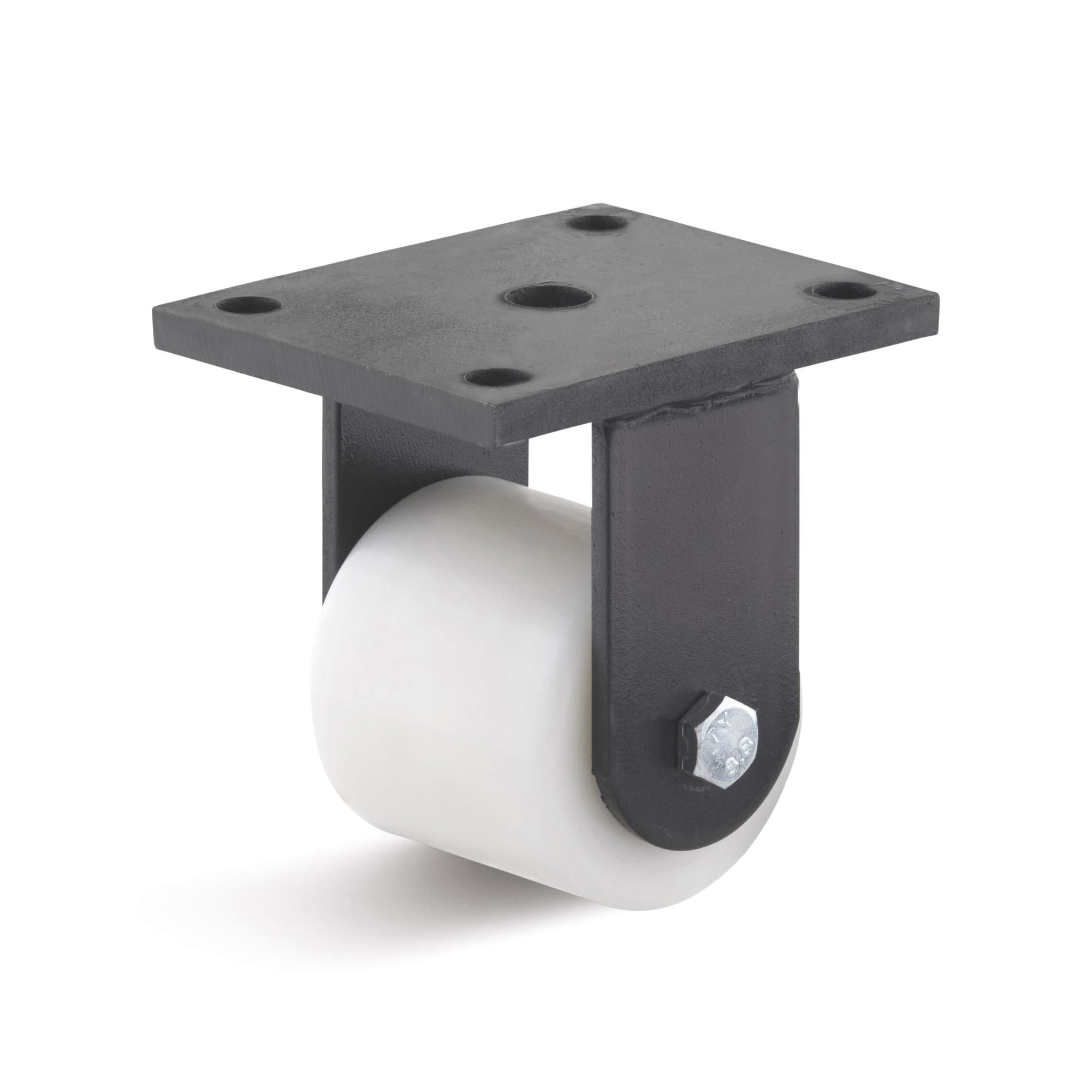

Heavy duty fixed Castors with polyamide wheel
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| B-HN-PAHU-082-K |
| B-HN-PAHU-085-K |
| B-IHB-PAM-080-K-3 |
| B-IHB-PAM-100-K-3 |
| B-IHB-PAM-125-K-3 |
| B-IHB-PAM-150-K-3 |
| B-IHB-PAM-200-K-3 |
| B-IHB-PAM-250-K-3 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Plate length (mm) | Plate width (mm) | Wheel diameter (mm) | Wheel width (mm) | Load capacity dynamic (kg) | overall height (mm) | Housing Series Type | Bolt Hole Length (mm) | Housing material RR | Bolt hole width (mm) | Material Description Housing | Screw hole (mm) | panel thickness (mm) | Rim material | Tread material | electrically conductive | Housing design | Tread color | Housing classification | Min. temperature resistance (° C) | Max. temperature resistance (° C) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
38.55 € | 1 | 5 Days | - | - | 82 | 70 | 700 | 133 | HN (501/502) | 105 | Painted steel | 80 | Heavy steel welded construction, painted black | 13 | - | Polyamide | Polyamide | none | welded | White | Heavy load series HB | -25 | 90 | 2.2 | ||
38.46 € | 1 | 5 Days | - | - | 85 | 80 | 750 | 135 | HN (501/502) | 105 | Painted steel | 80 | Heavy steel welded construction, painted black | 13 | - | Polyamide | Polyamide | none | welded | White | Heavy load series HB | -25 | 90 | 2.3 | ||
12.11 € | 1 | 5 Days | 100 | 85 | 80 | 35 | 200 | - | - | 80 | - | 60 | - | 9 | 2.5 | - | - | - | - | - | - | - | - | 0.8 | ||
13.35 € | 1 | 5 Days | 100 | 85 | 100 | 35 | 300 | - | - | 80 | - | 60 | - | 9 | 2.5 | - | - | - | - | - | - | - | - | 0.85 | ||
24.97 € | 1 | 5 Days | 136 | 118 | 125 | 40 | 400 | - | - | 105 | - | 80 | - | 12.5 | 4 | - | - | - | - | - | - | - | - | 1.5 | ||
24.46 € | 1 | 5 Days | 136 | 118 | 150 | 45 | 700 | - | - | 105 | - | 80 | - | 12.5 | 4 | - | - | - | - | - | - | - | - | 1.9 | ||
31.98 € | 1 | 5 Days | 136 | 118 | 200 | 50 | 1000 | - | - | 105 | - | 80 | - | 12.5 | 4 | - | - | - | - | - | - | - | - | 2.9 | ||
59.66 € | 1 | 5 Days | 136 | 118 | 250 | 60 | 1250 | - | - | 105 | - | 80 | - | 12.5 | 4 | - | - | - | - | - | - | - | - | 4.7 |
Loading...
Basic information
| Rolls and case type | Fixed bracket | Mounting type | Mounting plate |
|---|
Configure
Basic Attributes
-
Plate length(mm)
-
Plate width(mm)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity dynamic(kg)
-
overall height(mm)
-
Housing Series Type
-
Bolt Hole Length(mm)
-
Housing material RR
- Painted steel
-
Bolt hole width(mm)
-
Material Description Housing
- Heavy steel welded construction, painted black
-
Screw hole(mm)
-
panel thickness(mm)
-
Rim material
- Polyamide
-
Tread material
- Polyamide
-
electrically conductive
- none
-
Housing design
- welded
-
Tread color
- White
-
Housing classification
- Heavy load series HB
-
Min. temperature resistance(° C)
- -25
-
Max. temperature resistance(° C)
- 90
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
