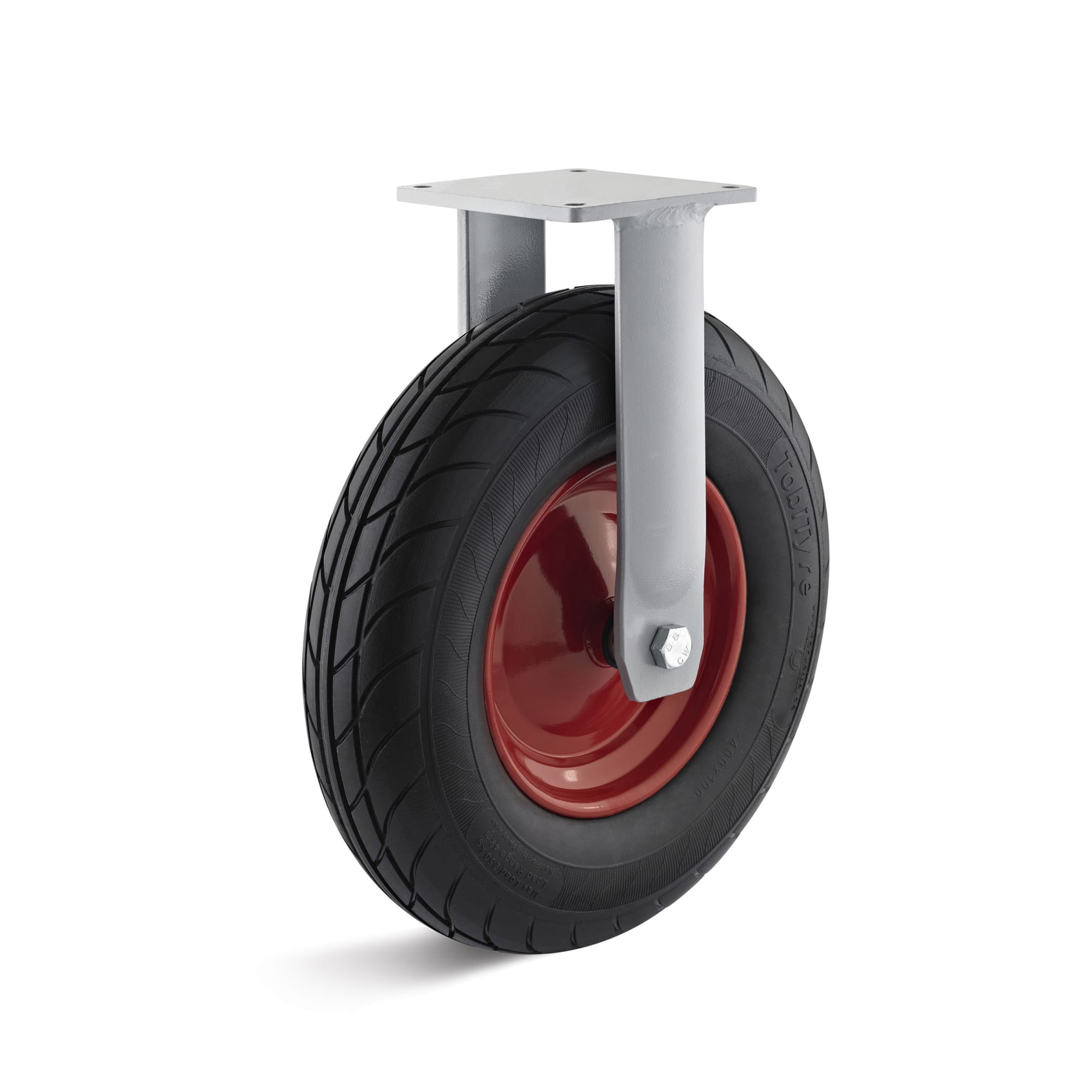

PU fixed Castors with wheel foamed
・Rolls and case type: Fixed bracket
・Wheel bearing: Ball-bearing, Roller bearing
・Housing material RR: Steel galvanized
・Rim material: Plastic, Galvanized steel sheet
・Tread material: Foamed polyurethane
・Tread color: Grey
・Wheel diameter(mm): 100-400
・Wheel width(mm): 30-100
・Load capacity dynamic(kg): 60-200
wheel series GPVK/GPSK:
・Wheel body made of plastic with roller bearings
・Tread made of foamed polyurethane
Housing series AH, IP:
・steel sheet housing, galvanized
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| B-AH-GPSK-125-K |
| B-AHC-GPSK-100-K |
| B-IL-GPSK-200-K |
| B-IP-GPSK-260-R |
| B-IP-GPVK-245-R |
| B-IP-GPVS-400-R-SCHWARZ |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Plate length (mm) | Plate width (mm) | Wheel diameter (mm) | Wheel width (mm) | Load capacity dynamic (kg) | overall height (mm) | Wheel bearing | Housing Series Type | Bolt Hole Length (mm) | Bolt hole width (mm) | Screw hole (mm) | Rim material | Housing design | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
30.56 € | 1 | 5 Days | 77 | 67 | 125 | 30 | 75 | 161 | Ball-bearing | - | 59 | 52.5 | 8.5 | Plastic | - | 0.554 | ||
31.84 € | 1 | 5 Days | 77 | 67 | 100 | 30 | 60 | 138 | Ball-bearing | - | 59 | 52.5 | 8.5 | Plastic | - | 0.48 | ||
30.47 € | 1 | 5 Days | 135 | 112 | 200 | 50 | 100 | 235 | Ball-bearing | IL (LCW/BCW) | 105 | 80 | 10.9 | Plastic | drawn | 1.51 | ||
107.79 € | 1 | 5 Days | 232 | 130 | 260 | 85 | 200 | 295 | Roller bearing | IP (LL/LB (air) | 190 | 75 | 14.6 | Plastic | - | 3.87 | ||
44.17 € | 1 | 5 Days | 230 | 130 | 246 | 85 | 125 | 288 | Roller bearing | IP (LL/LB (air) | 190 | 75 | 14.6 | Plastic | - | 3.7 | ||
168.42 € | 1 | 5 Days | 150 | 150 | 400 | 100 | 200 | 458 | Roller bearing | IP (LL/LB (air) | 125 | 125 | 10.5 | Galvanized steel sheet | - | 7.3 |
Loading...
Basic information
| Rolls and case type | Fixed bracket | Mounting type | Mounting plate | Housing material RR | Steel galvanized |
|---|---|---|---|---|---|
| Number of wheels [piece] | 1 | Tread material | Foamed polyurethane | electrically conductive | none |
| Tread color | Grey | Tread type | crowned | Housing classification | Standard housing IL |
Configure
Basic Attributes
-
Plate length(mm)
-
Plate width(mm)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity dynamic(kg)
-
overall height(mm)
-
Wheel bearing
- Ball-bearing
- Roller bearing
-
Housing Series Type
-
Bolt Hole Length(mm)
-
Bolt hole width(mm)
-
Screw hole(mm)
-
Rim material
- Galvanized steel sheet
- Plastic
-
Housing design
- drawn
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
