Swivel Castors with lock hole and double stop, VG-wheel
・Rolls and case type: Steering housing
・Housing classification: Standard housing IL
・Rim material: Galvanized steel sheet
・Tread material: Solid rubber
・Tread color: Black
・Wheel diameter(mm): 80-200
・Wheel width(mm): 30-50
・Load capacity dynamic(kg): 50-205

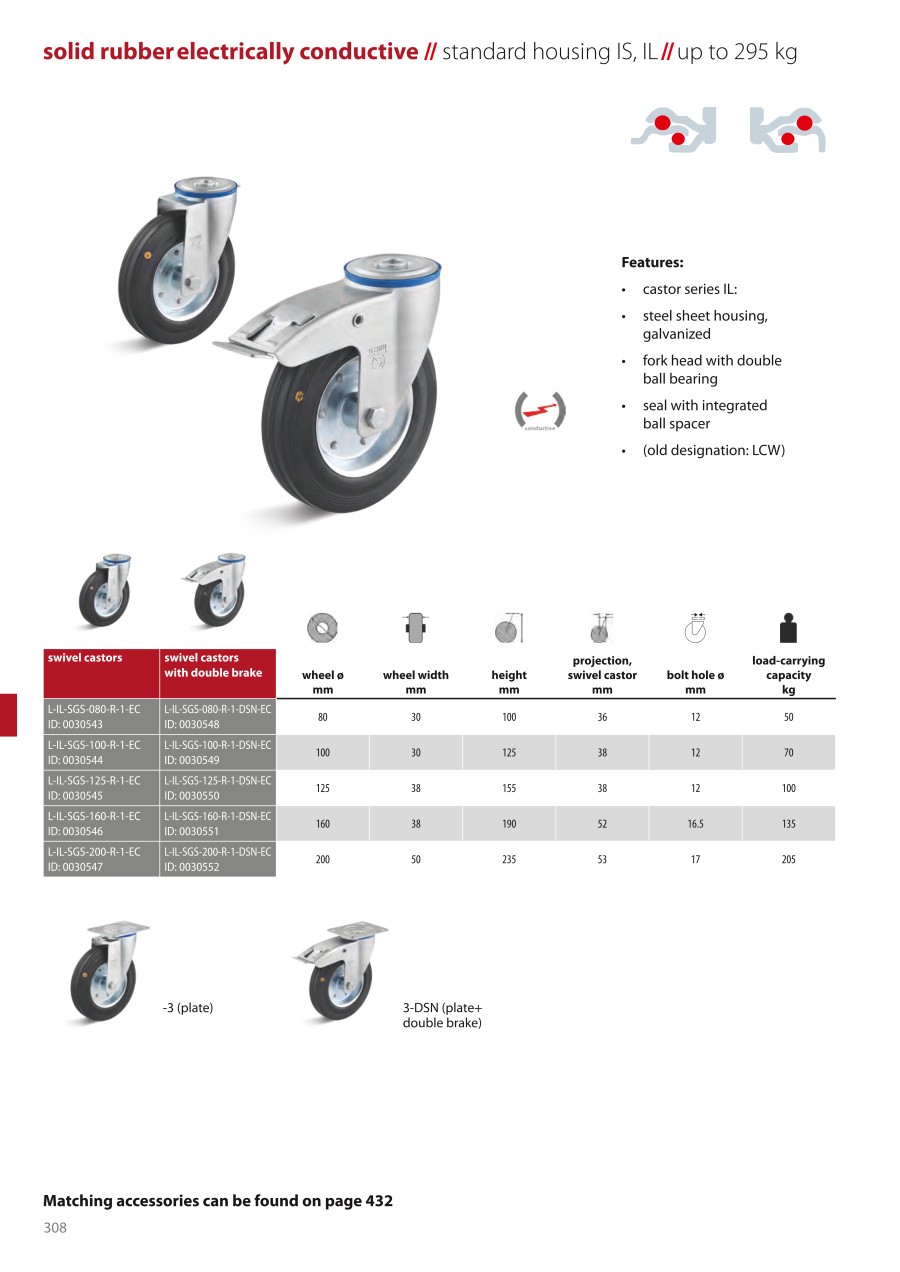

[Features]
・castor series IL:
・steel sheet housing, galvanized
・fork head with double ball bearing
・seal with integrated ball spacer
・(old designation: LCW)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| L-IL-SGS-080-R-1-DSN-EC |
| L-IL-SGS-125-R-1-DSN-EC |
| L-IL-SGS-160-R-1-DSN-EC |
| L-IL-SGS-200-R-1-DSN-EC |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Wheel diameter (mm) | Wheel width (mm) | Load capacity dynamic (kg) | overall height (mm) | Discharge swivel castor (mm) | Swivel Radius (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
12.86 € | 1 | 5 Days | 80 | 30 | 50 | 100 | 36 | 127 | 0.82 | ||
19.86 € | 1 | 5 Days | 125 | 38 | 100 | 155 | 37 | 118 | 1.3 | ||
37.13 € | 1 | 5 Days | 160 | 40 | 135 | 190 | 52 | 159 | 2.5 | ||
40.79 € | 1 | 5 Days | 200 | 50 | 205 | 235 | 53 | - | 3.27 |
Loading...
Basic information
| Rolls and case type | Steering housing | Mounting type | Baack hole | Wheel bearing | Roller bearing |
|---|---|---|---|---|---|
| Bolt hole Ø(mm) | 12 | Clevis bearing type | Clevis with double ball bearing | Clevis connection | riveted |
| Rim material | Galvanized steel sheet | Tread material | Solid rubber | electrically conductive | electrically conductive |
| Tread color | Black | Stop Type | DS-N (double stop in the wake) | Housing classification | Standard housing IL |
| Min. temperature resistance(° C) | -20 | Max. temperature resistance(° C) | 80 |
Configure
Basic Attributes
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity dynamic(kg)
-
overall height(mm)
-
Discharge swivel castor(mm)
-
Swivel Radius(mm)
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
