Swivel Castors with back hole and double stop with polyurethane wheel
・Rolls and case type: Steering housing
・Housing material RR: Steel galvanized
・Rim material: Polyamide
・Tread material: Polyurethane
・Tread color: Blue
・Wheel diameter(mm): 80-200
・Wheel width(mm): 30-50
・Load capacity dynamic(kg): 100-400
・Wheel bearing: Ball-bearing

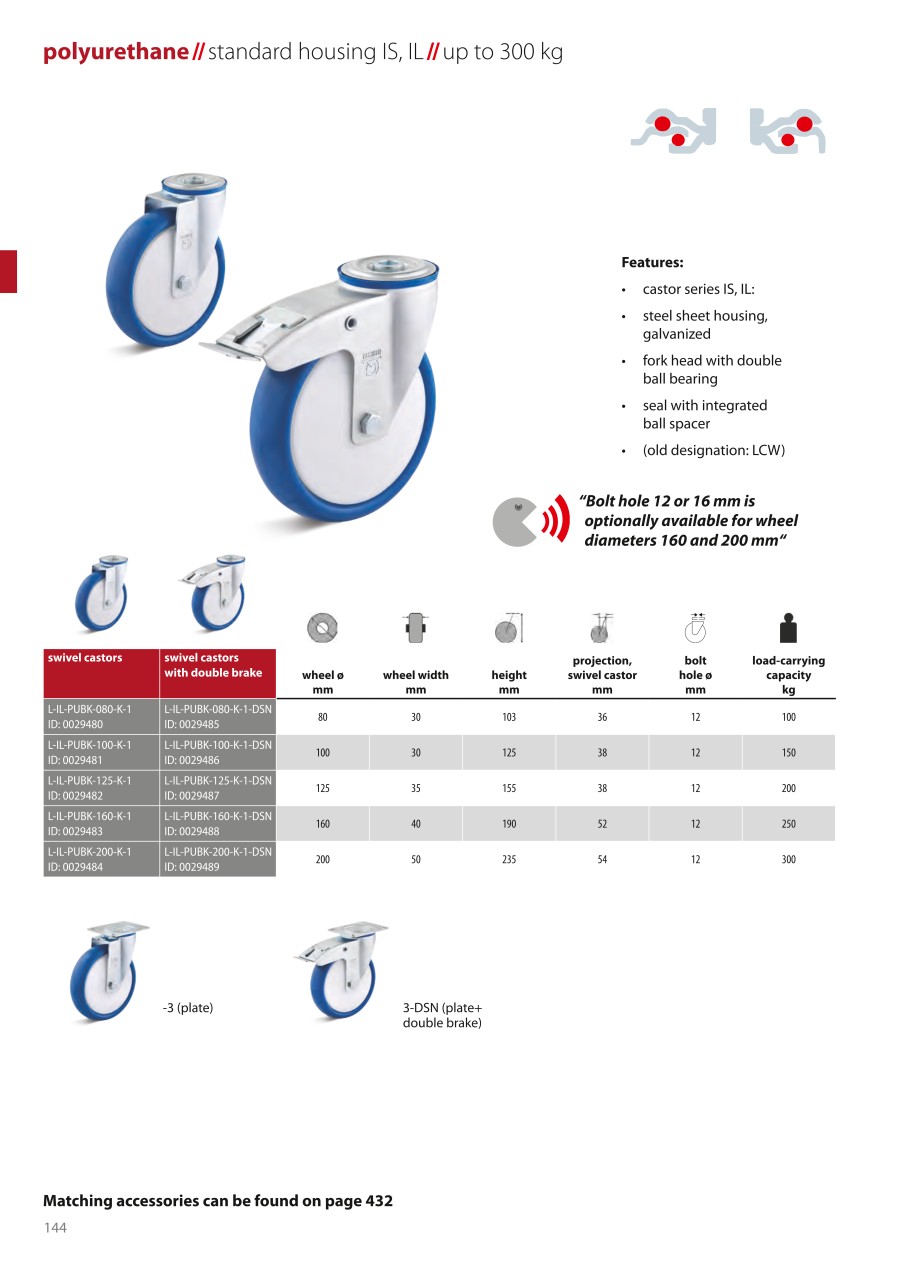

[Features]
・castor series IL:
・steel sheet housing, galvanized
・fork head with double ball bearing
・seal with integrated ball spacer
・(old designation:LCW)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Wheel diameter (mm) | Wheel width (mm) | Load capacity dynamic (kg) | overall height (mm) | Discharge swivel castor (mm) | Swivel Radius (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
11.78 € | 1 | 5 Days | 80 | 30 | 100 | 100 | 36 | 130 | 0.666 | ||
13.16 € | 1 | 5 Days | 100 | 30 | 150 | 125 | 36 | 130 | 0.998 | ||
15.86 € | 1 | 5 Days | 125 | 35 | 200 | 155 | 38 | 130 | 0.966 | ||
31.59 € | 1 | 5 Days | 160 | 40 | 250 | 193 | 52 | 203 | 2.018 | ||
38.42 € | 1 | 5 Days | 200 | 50 | 300 | 235 | 54 | 203 | 2.914 | ||
16.14 € | 1 | 6 Days | 80 | 35 | 150 | 100 | 36 | 130 | 0.71 | ||
17.28 € | 1 | 4 Days | 100 | 35 | 180 | 125 | 36 | 130 | 0.85 | ||
23.10 € | 1 | 4 Days | 125 | 40 | 200 | 155 | 37 | 130 | 1.25 | ||
42.10 € | 1 | 4 Days | 150 | 45 | 300 | 185 | 52 | 203 | 2.25 | ||
43.32 € | 1 | 4 Days | 160 | 45 | 300 | 190 | 52 | 203 | 2.4 | ||
46.96 € | 1 | 4 Days | 200 | 50 | 400 | 235 | 53 | - | 3.15 |
Loading...
Basic information
| Rolls and case type | Steering housing | Mounting type | Baack hole | Wheel bearing | Ball-bearing |
|---|---|---|---|---|---|
| Housing material RR | Steel galvanized | Bolt hole Ø(mm) | 12 | Clevis bearing type | Clevis with double ball bearing |
| Clevis connection | riveted | Rim material | Polyamide | Tread material | Polyurethane |
| electrically conductive | none | Housing design | drawn | Tread color | Blue |
| Housing classification | Standard housing IL | Min. temperature resistance(° C) | -20 | Max. temperature resistance(° C) | 80 |
Configure
Basic Attributes
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity dynamic(kg)
-
overall height(mm)
-
Discharge swivel castor(mm)
-
Swivel Radius(mm)
Filter by standard shipping days
-
- All
- 4 Days or Less
- 5 Days or Less
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
