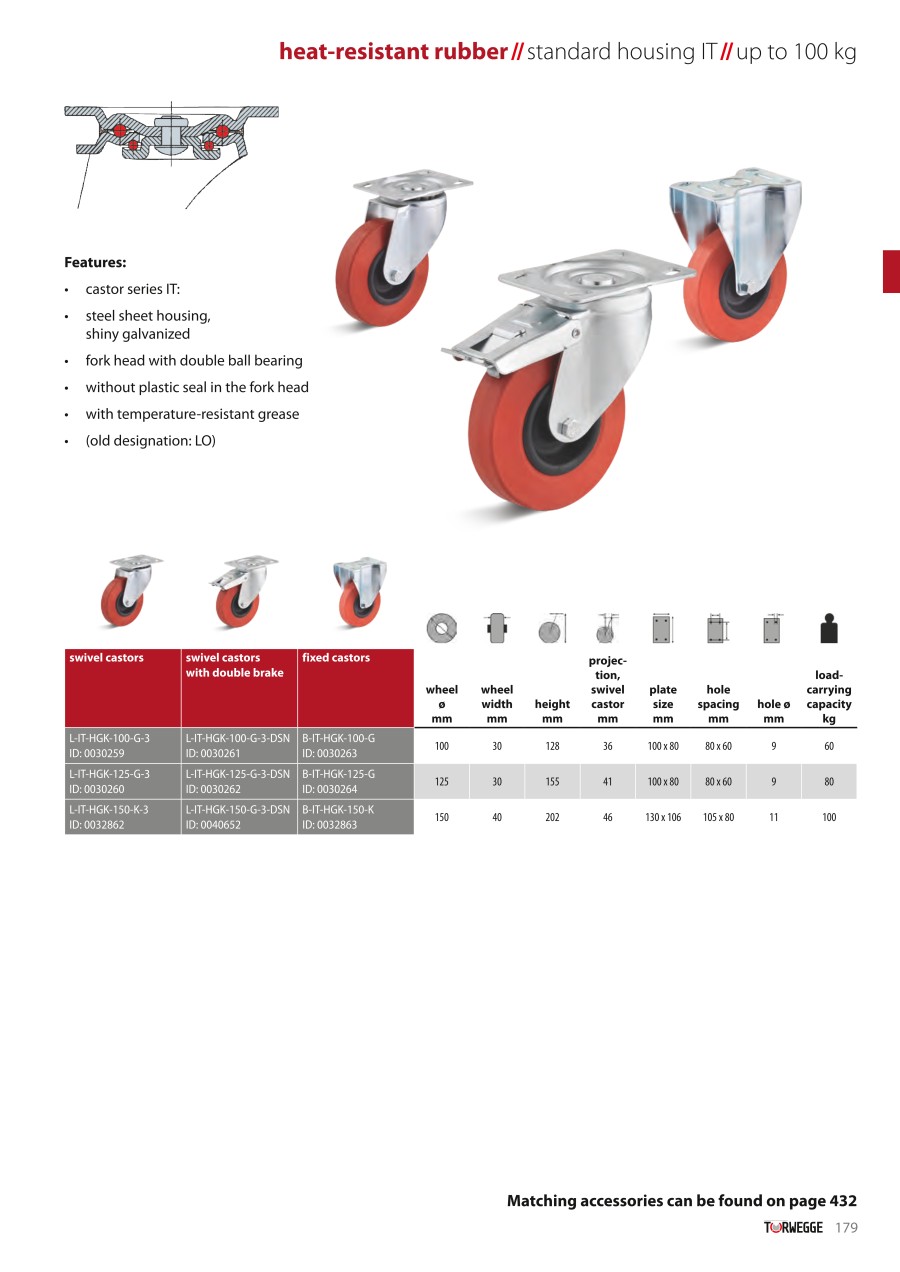

Swivel Castors with double stop and heat resistant rubber wheel
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| L-IT-HGK-100-G-3-DSN-ROT |
| L-IT-HGK-125-G-3-DSN-ROT |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Plate length (mm) | Plate width (mm) | Wheel diameter (mm) | Load capacity dynamic (kg) | overall height (mm) | Discharge swivel castor (mm) | Swivel Radius (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
44.82 € | 1 | 5 Days | 100 | 80 | 100 | 60 | 128 | 36 | 117 | 0.95 | ||
61.57 € | 1 | 5 Days | 117 | 85 | 125 | 80 | 155 | 41 | 132 | 1.35 |
Loading...
Basic information
| Wheel width(mm) | 30 | Rolls and case type | Steering housing | Mounting type | Mounting plate |
|---|---|---|---|---|---|
| Wheel bearing | Bearing | Housing Series Type | IT (LO/BO) | Bolt Hole Length(mm) | 80 |
| Housing material RR | Steel galvanized | Bolt hole width(mm) | 60 | Surface coating | galvanized |
| Screw hole(mm) | 9 | Rim material | Plastic | Tread material | Solid rubber heat resistant |
| electrically conductive | none | Tread color | Red | Housing classification | Standard housing IT |
| Min. temperature resistance(° C) | -40 | Max. temperature resistance(° C) | 250 |
Configure
Basic Attributes
-
Plate length(mm)
-
Plate width(mm)
-
Wheel diameter(mm)
-
Load capacity dynamic(kg)
-
overall height(mm)
-
Discharge swivel castor(mm)
-
Swivel Radius(mm)
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
