Quarter turn actuator, DFPD Series
Click on this image to zoom in.
Click on this image to zoom in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available

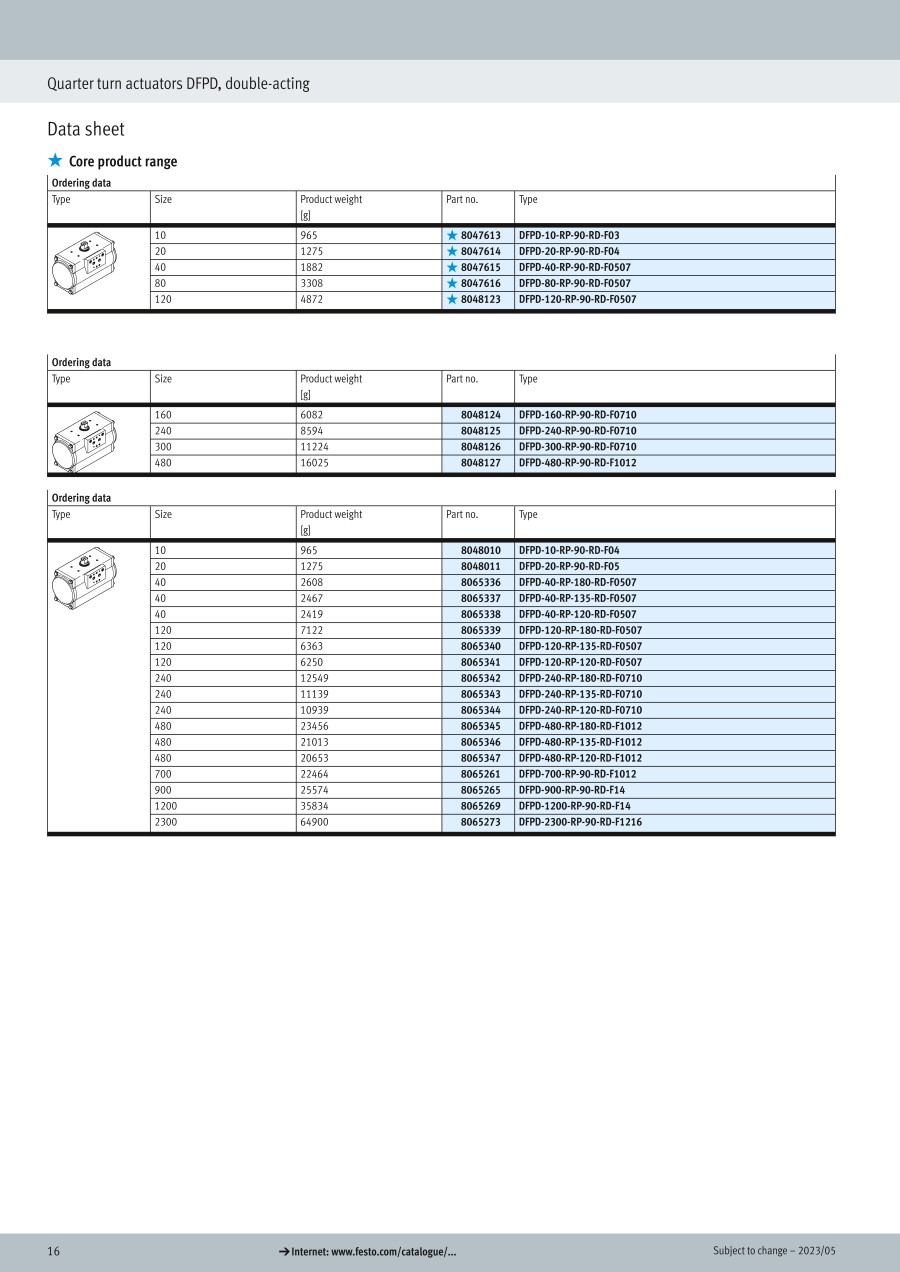

| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Nominal operating pressure (bar) | Pneumatic connection | Size of valve actuator | Depth shaft connection (mm) | Torque at nominal operating pressure and 0° swivel angle (Nm) | Torque at nominal operating pressure and 90° swivel angle (Nm) | Manufacturer part # | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
86.68 € | 1 | 4 Days | 5.5 | G1/8 | 10 | 10 | 10.3 | 10.3 | 8047613 | 965 | |||
106.42 € | 1 | 4 Days | 5.5 | G1/8 | 20 | 12 | 20.1 | 20.1 | 8047614 | 1275 | |||
118.68 € | 1 | 4 Days | 3 | G1/8 | 20 | 12 | 7.4 | 3.8 | 8047621 | 1371 | |||
133.03 € | 1 | 3 Days | 5.5 | G1/8 | 40 | 16 | 38.3 | 38.3 | 8047615 | 1882 | |||
148.38 € | 1 | 4 Days | 3 | G1/8 | 40 | 16 | 14 | 7.3 | 8047623 | 2087 | |||
182.91 € | 1 | 4 Days | 5.5 | G1/8 | 80 | 19 | 82.4 | 82.4 | 8047616 | 3308 | |||
217.12 € | 1 | 4 Days | 6 | G1/8 | 80 | 19 | 60.3 | 31.5 | 8047626 | 3960 | |||
250.75 € | 1 | 24 Days | 5.5 | G1/4 | 120 | 19 | 117.4 | 117.4 | 8048123 | 4872 | |||
261.95 € | 1 | 4 Days | 3 | G1/4 | 120 | 19 | 43 | 22.4 | 8048133 | 5422 | |||
271.98 € | 1 | 4 Days | 6 | G1/4 | 120 | 19 | 86 | 44.8 | 8048134 | 5736 | |||
286.02 € | 1 | 4 Days | 5.5 | G1/4 | 160 | 24 | 161 | 161 | 8048124 | 6082 | |||
401.68 € | 1 | Quote | 5.5 | G1/4 | 300 | 24 | 301.9 | 301.9 | 8048126 | 11224 |
Loading...
Basic information
| Operating Pressure Range(MPa) | 0.2::0.8 | Housing material | Wrought aluminum alloy, Anodized | Cover material | Die-cast aluminum, coated |
|---|---|---|---|---|---|
| Seals material | NBR | Material of screws | High-alloy stainless steel | Shaft material | Steel, nickel-plated |
| Swivel angle(deg) | 90 | Min. Ambient temperature(°C) | -20 | Max. Ambient temperature(°C) | 80 |
| Min. Storage temperature(°C) | -20 | Max. Storage temperature(°C) | 60 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
Configure
Basic Attributes
-
Nominal operating pressure(bar)
- 3
- 5.5
- 6
-
Pneumatic connection
- G1/4
- G1/8
-
Size of valve actuator
-
Depth shaft connection(mm)
-
Torque at nominal operating pressure and 0° swivel angle(Nm)
-
Torque at nominal operating pressure and 90° swivel angle(Nm)
Filter by standard shipping days
-
- All
- 3 Days or Less
- 4 Days or Less
- 24 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
