Cylindrical roller bearings ECNMLC3 Series
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
NUP314 ECNMLC3
- Product data
- CAD data not available
Basic information
| I.D. d(mm) | 70 | O.D. D(mm) | 150 | Width B(mm) | 35 |
|---|---|---|---|---|---|
| Precision (JIS) | Grade 6 | Number of Raceway Ring Rows | Single Row | Bore | Cylindrical |
| Cage | Brass cage | Clearance | Slightly increased radial clearance | Current insulation | No current insulation |
| Design | Fixed bearing | EAN | 7316570901047 | Outer ring | Ring groove on outer ring |
| Seal | None open bearing | Temperature range | -30 to +150 °C | Weight(g) | 3170.0 |

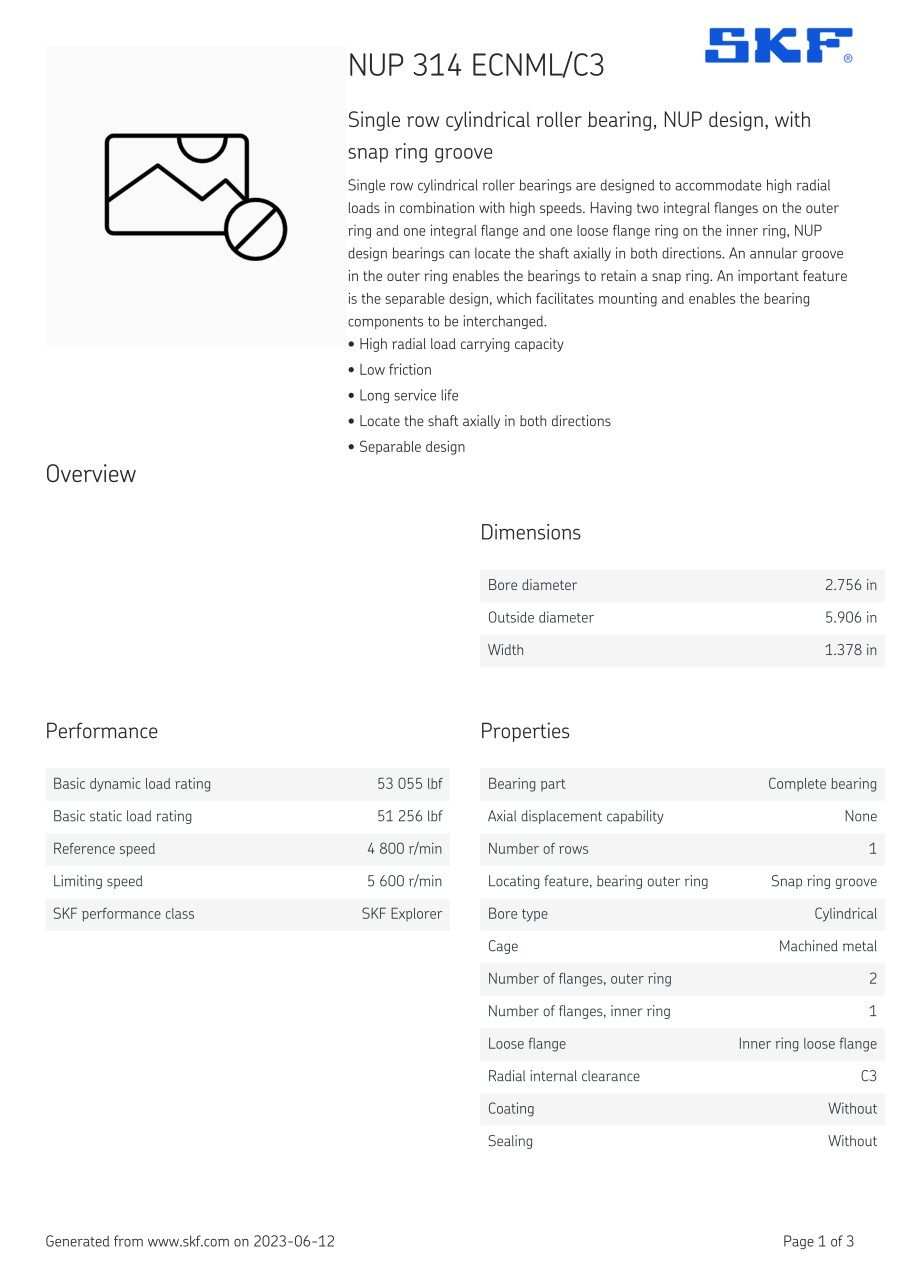

This page is Cylindrical roller bearings ECNMLC3 Series, part number NUP314 ECNMLC3.
You can find the detail information about specifications and dimensions on part number NUP314 ECNMLC3.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
