Locating rings / Internal diameter 82mm
[Specifications]
・Inside diameter: 82 mm
・Outside diameter: 90 mm
・eClass code:
・23-05-17-90
A bearing in the locating position must be secured axially in the housing. If the bearing seat in the housing and the bearing width do not match, locating (stabilizing) rings are required. Typically, two locating rings are required per housing. One ring should be placed on each side of the bearing. If only one locating ring is required, it should be installed on the same side as the lock nut.
・Inside diameter: 82 mm
・Outside diameter: 90 mm
・eClass code:
・23-05-17-90
A bearing in the locating position must be secured axially in the housing. If the bearing seat in the housing and the bearing width do not match, locating (stabilizing) rings are required. Typically, two locating rings are required per housing. One ring should be placed on each side of the bearing. If only one locating ring is required, it should be installed on the same side as the lock nut.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

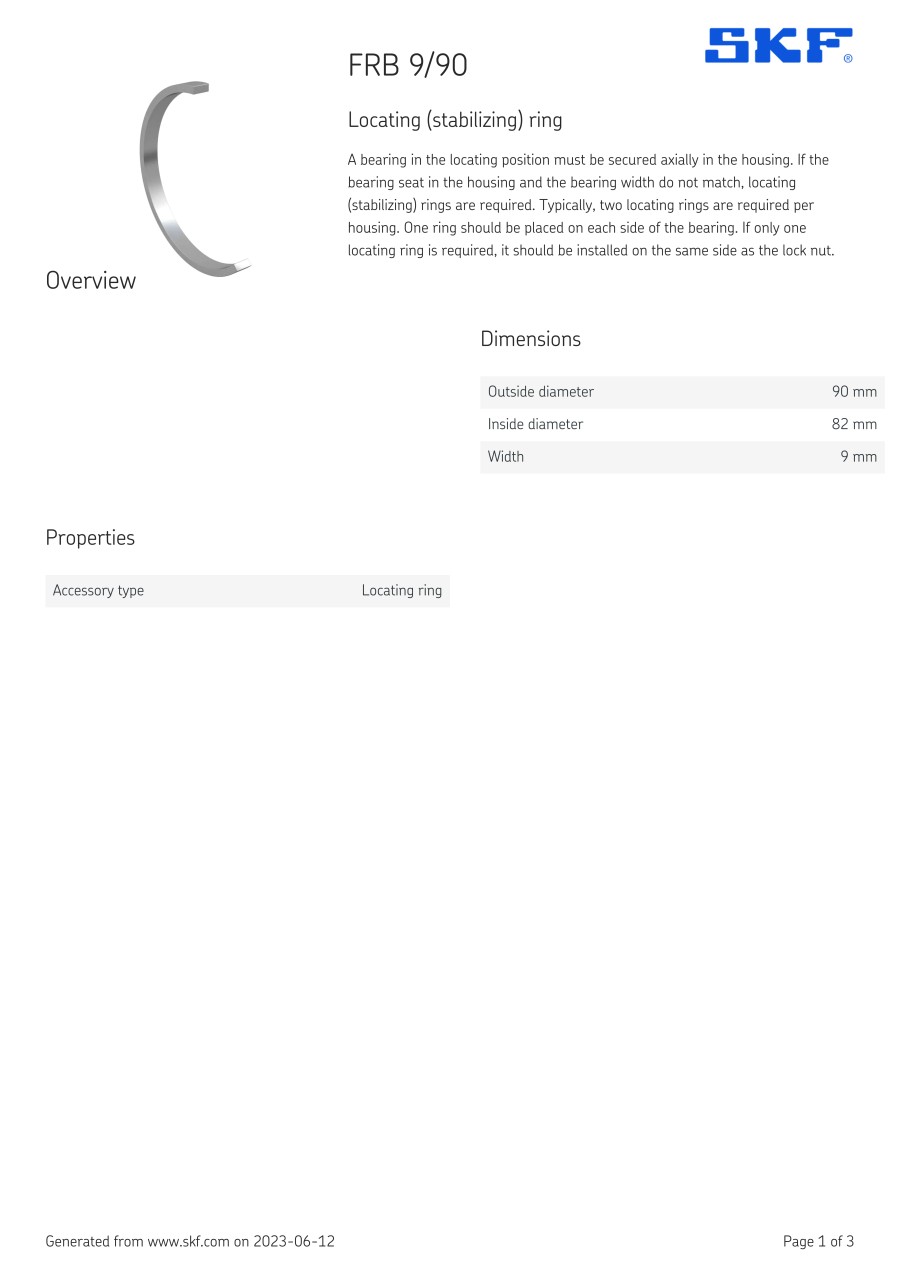

FRB9/90
- Product data
- CAD data not available
Basic information
| Internal diameter(mm) | 82 | Outer diameter(mm) | 90 | Width(mm) | 9 |
|---|---|---|---|---|---|
| Weight(g) | 40 | GTIN/EAN | 7316577017062 |
This page is Locating rings / Internal diameter 82mm, part number FRB9/90.
You can find the detail information about specifications and dimensions on part number FRB9/90.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
