Power Supply
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

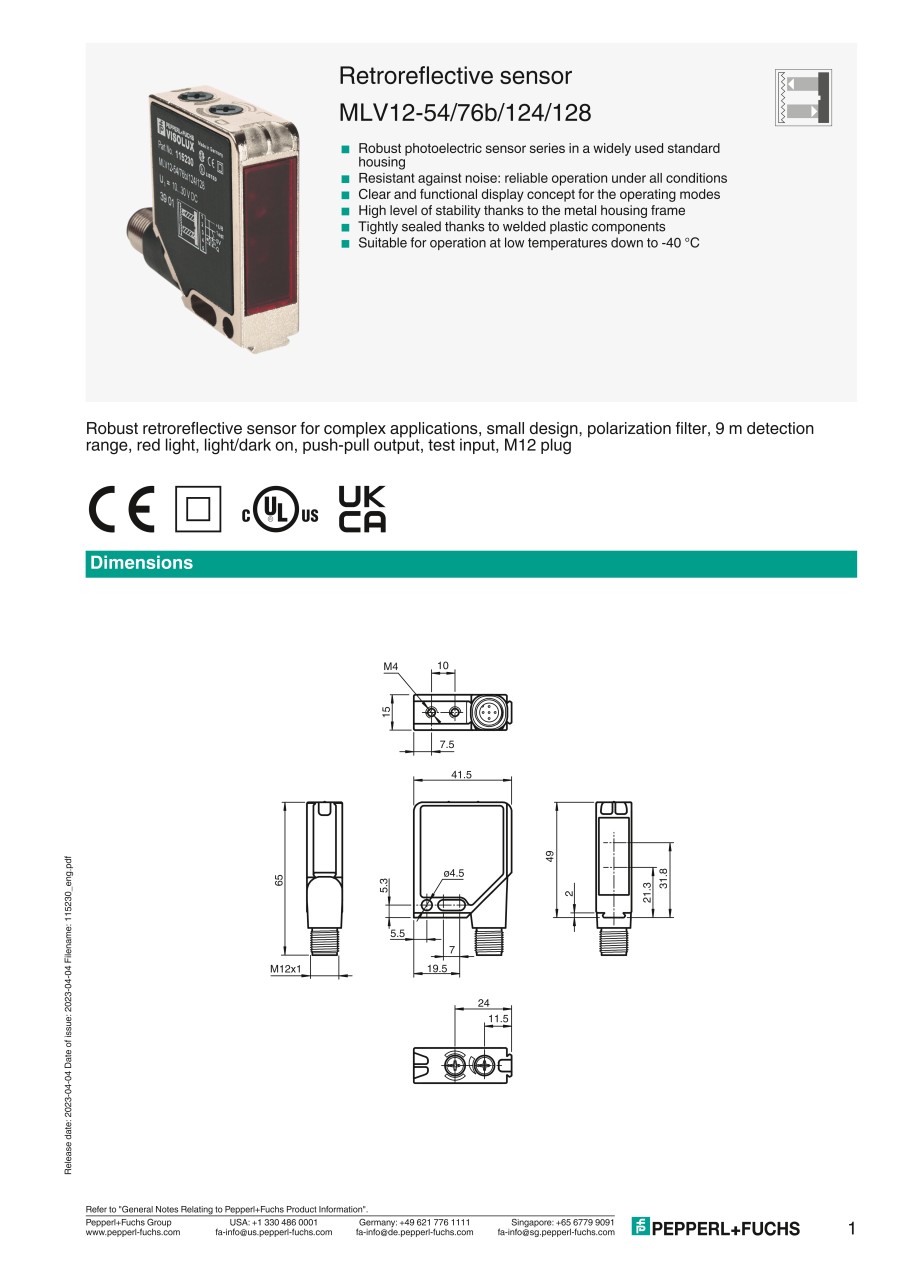

MLV12-54/76B/124/128
- Product data
- CAD data not available
Basic information
| Color of detection light | Red | Head maximum size width W(mm) | 41.5 | Head maximum size height H(mm) | 49 |
|---|---|---|---|---|---|
| Head maximum size length L(mm) | 15 | Voltage type | DC | Material housing | Metal |
| Type of electric connection | Connector M12 | Type of switching output | PNP/NPN | Construction type housing | Cuboid |
| Type of light | Polarized red light | Wavelength of the sensor(nm) | 660 | Material of optical surface | Plastic |
| Max. switching distance(mm) | 9000 |
This page is Power Supply , part number MLV12-54/76B/124/128.
You can find the detail information about specifications and dimensions on part number MLV12-54/76B/124/128.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
