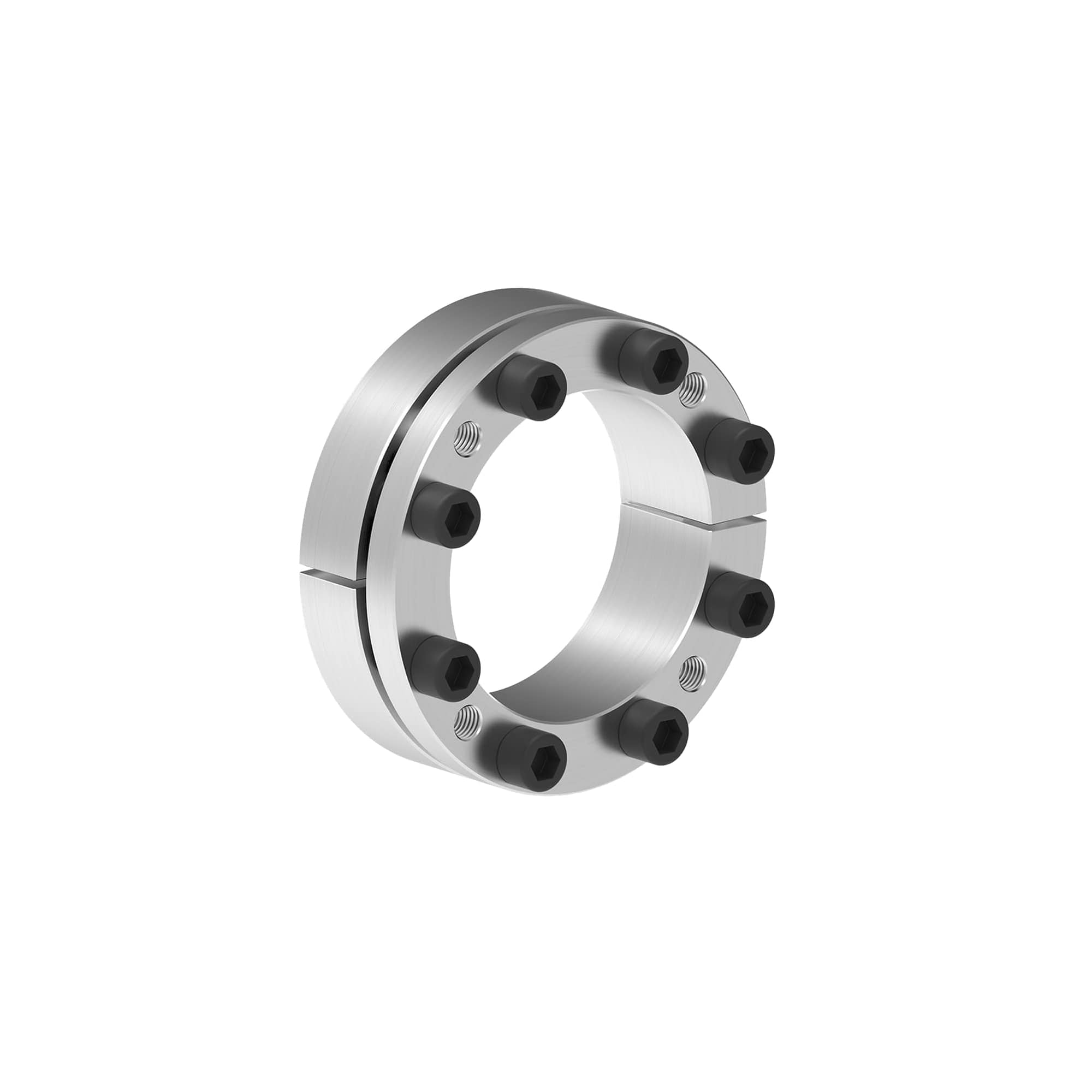

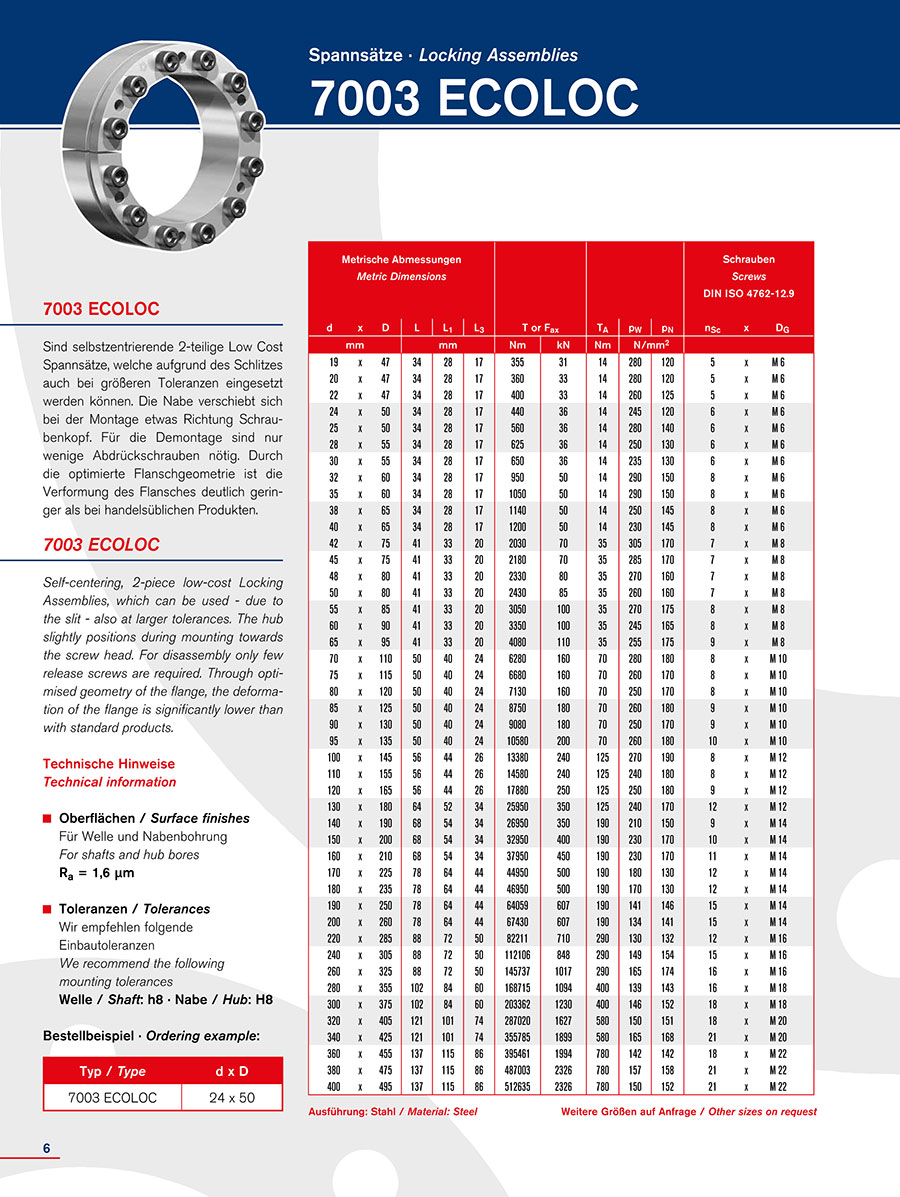

Locking Assemblies 7003
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number | Minimum order quantity | Volume Discount | Overall Length W (mm) | Outer Dia. A (Ø) | Inner Diameter (mm) | Overall Length (Without Screws) (mm) | Width of Ring (mm) | Transmissible Torque at Given Max. Tightened Torque (Nm) | Transmissible Axial Force (kN) | Maximum Tightened Torque of the Clamping Screws (Nm) | Surface Pressure on Shaft at Given Max. Tightened Torque (N/mm²) | Surface Pressure on Hub at Given Max. Tightened Torque (N/mm²) | Thread | Quantity Of Screws (Pieces) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 5 Days | 56 | 145 | 100 | 44 | 26 | 13380 | 240 | 125 | 270 | 190 | 12 mm | 8 | ||
| 1 | 5 Days | 56 | 155 | 110 | 44 | 26 | 14580 | 240 | 125 | 240 | 180 | 12 mm | 8 | ||
| 1 | 5 Days | 56 | 165 | 120 | 44 | 26 | 17880 | 250 | 125 | 250 | 180 | 12 mm | 9 | ||
| 1 | 5 Days | 64 | 180 | 130 | 52 | 34 | 25950 | 350 | 125 | 240 | 170 | 12 mm | 12 | ||
| 1 | 5 Days | 68 | 190 | 140 | 54 | 34 | 26950 | 350 | 190 | 210 | 150 | 14 mm | 9 | ||
| 1 | 5 Days | 68 | 200 | 150 | 54 | 34 | 32950 | 400 | 190 | 230 | 170 | 14 mm | 10 | ||
| 1 | 5 Days | 68 | 210 | 160 | 54 | 34 | 37950 | 450 | 190 | 230 | 170 | 14 mm | 11 | ||
| 1 | 5 Days | 78 | 225 | 170 | 64 | 44 | 44950 | 500 | 190 | 180 | 130 | 14 mm | 12 | ||
| 1 | 5 Days | 78 | 235 | 180 | 64 | 44 | 46950 | 500 | 190 | 170 | 130 | 14 mm | 12 | ||
| 1 | 5 Days | 34 | 47 | 19 | 28 | 17 | 355 | 31 | 14 | 280 | 120 | 6 mm | 5 | ||
| 1 | 5 Days | 34 | 47 | 20 | 28 | 17 | 360 | 33 | 14 | 280 | 120 | 6 mm | 5 | ||
| 1 | 5 Days | 34 | 47 | 22 | 28 | 17 | 400 | 33 | 14 | 260 | 125 | 6 mm | 5 | ||
| 1 | 5 Days | 34 | 50 | 24 | 28 | 17 | 440 | 36 | 14 | 245 | 120 | 6 mm | 6 | ||
| 1 | 5 Days | 34 | 50 | 25 | 28 | 17 | 560 | 36 | 14 | 280 | 140 | 6 mm | 6 | ||
| 1 | 5 Days | 34 | 55 | 28 | 28 | 17 | 625 | 36 | 14 | 250 | 130 | 6 mm | 6 | ||
| 1 | 5 Days | 34 | 55 | 30 | 28 | 17 | 650 | 36 | 14 | 235 | 130 | 6 mm | 6 | ||
| 1 | 5 Days | 34 | 60 | 32 | 28 | 17 | 950 | 50 | 14 | 290 | 150 | 6 mm | 8 | ||
| 1 | 5 Days | 34 | 60 | 35 | 28 | 17 | 1050 | 50 | 14 | 290 | 150 | 6 mm | 8 | ||
| 1 | 5 Days | 34 | 65 | 38 | 28 | 17 | 1140 | 50 | 14 | 250 | 145 | 6 mm | 8 | ||
| 1 | 5 Days | 34 | 65 | 40 | 28 | 17 | 1200 | 50 | 14 | 230 | 145 | 6 mm | 8 | ||
| 1 | 5 Days | 41 | 75 | 42 | 33 | 20 | 2030 | 70 | 35 | 305 | 170 | 8 mm | 7 | ||
| 1 | 5 Days | 41 | 75 | 45 | 33 | 20 | 2180 | 70 | 35 | 285 | 170 | 8 mm | 7 | ||
| 1 | 5 Days | 41 | 80 | 48 | 33 | 20 | 2330 | 80 | 35 | 270 | 160 | 8 mm | 7 | ||
| 1 | 5 Days | 41 | 80 | 50 | 33 | 20 | 2430 | 85 | 35 | 260 | 160 | 8 mm | 7 | ||
| 1 | 5 Days | 41 | 85 | 55 | 33 | 20 | 3050 | 100 | 35 | 270 | 175 | 8 mm | 8 | ||
| 1 | 5 Days | 41 | 90 | 60 | 33 | 20 | 3350 | 100 | 35 | 245 | 165 | 8 mm | 8 | ||
| 1 | 5 Days | 41 | 95 | 65 | 33 | 20 | 4080 | 110 | 35 | 255 | 175 | 8 mm | 9 | ||
| 1 | 5 Days | 50 | 110 | 70 | 40 | 24 | 6280 | 160 | 70 | 280 | 180 | 10 mm | 8 | ||
| 1 | 5 Days | 50 | 115 | 75 | 40 | 24 | 6680 | 160 | 70 | 260 | 170 | 10 mm | 8 | ||
| 1 | 5 Days | 50 | 120 | 80 | 40 | 24 | 7130 | 160 | 70 | 250 | 170 | 10 mm | 8 | ||
| 1 | 5 Days | 50 | 125 | 85 | 40 | 24 | 8750 | 180 | 70 | 260 | 180 | 10 mm | 9 | ||
| 1 | 5 Days | 50 | 130 | 90 | 40 | 24 | 9080 | 180 | 70 | 250 | 170 | 10 mm | 9 | ||
| 1 | 5 Days | 50 | 135 | 95 | 40 | 24 | 10580 | 200 | 70 | 260 | 180 | 10 mm | 10 |
