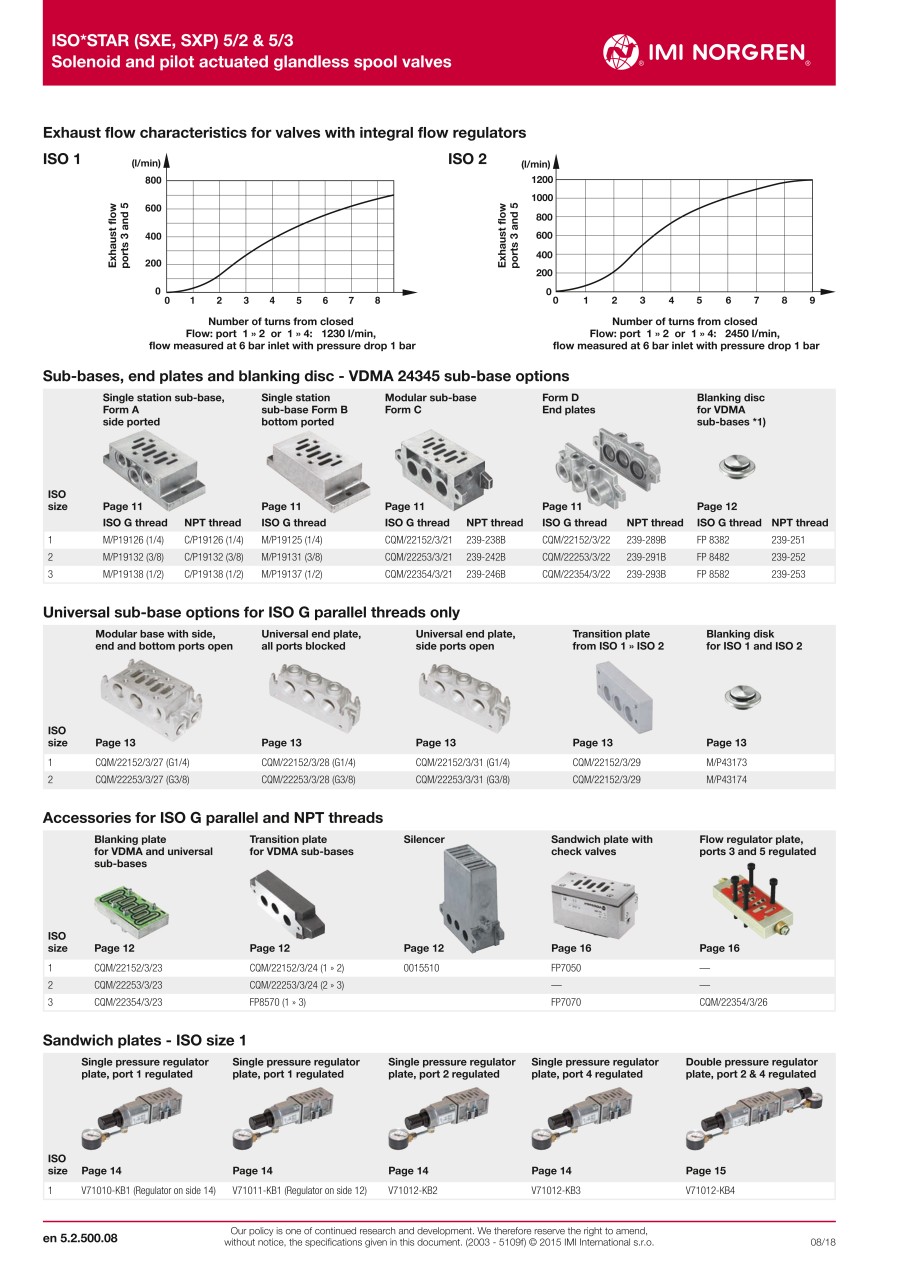

Sub-Bases And End Plates
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| CQM/22152/3/23 |
| CQM/22152/3/28 |
| CQM/22152/3/29 |
| CQM/22253/3/23 |
| CQM/22253/3/28 |
| V70402-A50 |
| V70404-A50 |
| V70406-A50 |
| V70408-A50 |
| V70410-A50 |
| V70425-A5E |
| V70425-A5F |
| V70426-A5E |
| V70426-A5F |
| V70431-A5F |
| V70432-A5F |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Operating Temperature Range (when using air) (°C) | Range | Standard | Port Size | |
|---|---|---|---|---|---|---|---|---|
18.53 € | 1 | 5 Days | - | CQM/22000 | ISO 5599-1 | - | ||
32.38 € | 1 | 5 Days | - | CQM/22000 | ISO 5599-1 | - | ||
233.24 € | 1 | 5 Days | - | CQM/22000 | ISO 5599-1 | - | ||
22.93 € | 1 | 5 Days | - | CQM/22000 | ISO 5599-1 | - | ||
42.71 € | 1 | 5 Days | - | CQM/22000 | ISO 5599-1 | - | ||
117.87 € | 1 | 5 Days | -15 - 50 | V44/V45 | VDMA 24 563 | G1/8 | ||
151.75 € | 1 | 5 Days | -15 - 50 | V44/V45 | VDMA 24 563 | G1/8 | ||
187.85 € | 1 | 5 Days | -15 - 50 | V44/V45 | VDMA 24 563 | G1/8 | ||
216.64 € | 1 | 5 Days | -15 - 50 | V44/V45 | VDMA 24 563 | G1/8 | ||
248.44 € | 1 | 5 Days | -15 - 50 | V44/V45 | VDMA 24 563 | G1/8 | ||
1,108.55 € | 1 | 5 Days | -15 - 50 | V44/V45 | VDMA 24 563 | G1/8 | ||
35.25 € | 1 | 5 Days | -15 - 50 | V44/V45 | VDMA 24 563 | G1/8 | ||
40.24 € | 1 | 5 Days | -15 - 50 | V44/V45 | VDMA 24 563 | G1/8 | ||
40.24 € | 1 | 5 Days | -15 - 50 | V44/V45 | VDMA 24 563 | G1/8 | ||
94.09 € | 1 | 5 Days | -15 - 50 | V44/V45 | VDMA 24 563 | G1/8 | ||
65.22 € | 1 | 5 Days | -15 - 50 | V44/V45 | VDMA 24 563 | G1/8 |
Loading...
Basic information
| Materials | Diecast aluminium |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
