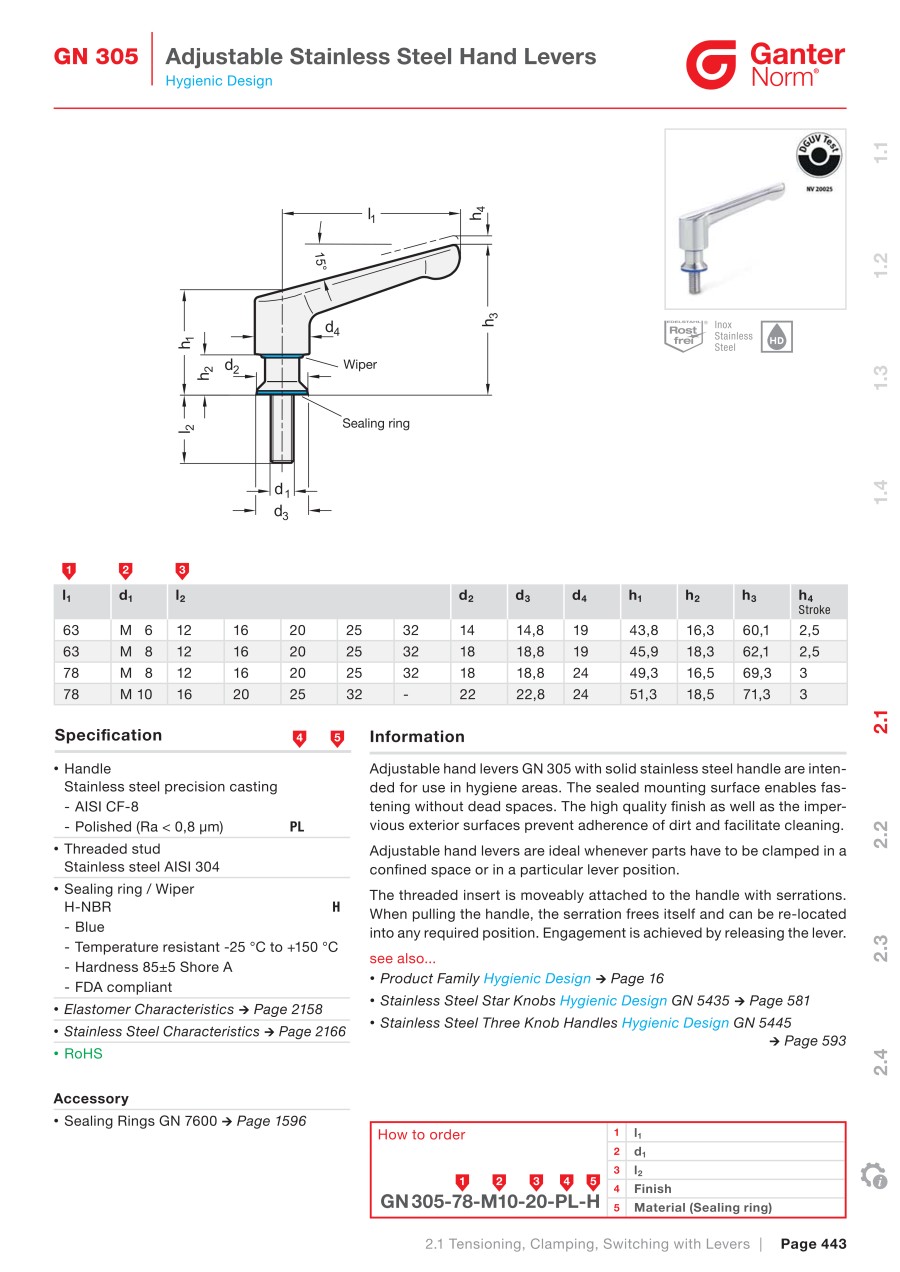

Adjustable Stainless Steel-Hand levers, threaded stud
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Connection thread d1 | Thread length l2 | d2 | d3 | d4 | h1 | h2 | h3 | h4 | Handle length l1 | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
63.06 € | 1 | Available | 7 Days | M 6 | 12 | 14 | 14.8 | 19 | 43.8 | 16.3 | 60.1 | 2.5 | 63 | 106.0 | |
63.96 € | 1 | Available | 7 Days | M 6 | 16 | 14 | 14.8 | 19 | 43.8 | 16.3 | 60.1 | 2.5 | 63 | 107.0 | |
64.42 € | 1 | Available | 7 Days | M 6 | 20 | 14 | 14.8 | 19 | 43.8 | 16.3 | 60.1 | 2.5 | 63 | 108.0 | |
64.82 € | 1 | Available | 7 Days | M 6 | 25 | 14 | 14.8 | 19 | 43.8 | 16.3 | 60.1 | 2.5 | 63 | 5.0 | |
65.22 € | 1 | Available | 7 Days | M 6 | 32 | 14 | 14.8 | 19 | 43.8 | 16.3 | 60.1 | 2.5 | 63 | 113.0 | |
63.06 € | 1 | Available | 7 Days | M 8 | 12 | 18 | 18.8 | 19 | 45.8 | 18.3 | 62.1 | 2.5 | 63 | 113.0 | |
63.96 € | 1 | Available | 7 Days | M 8 | 16 | 18 | 18.8 | 19 | 45.8 | 18.3 | 62.1 | 2.5 | 63 | 113.0 | |
64.42 € | 1 | Available | 7 Days | M 8 | 20 | 18 | 18.8 | 19 | 45.8 | 18.3 | 62.1 | 2.5 | 63 | 115.0 | |
64.82 € | 1 | Available | 7 Days | M 8 | 25 | 18 | 18.8 | 19 | 45.8 | 18.3 | 62.1 | 2.5 | 63 | 118.0 | |
65.22 € | 1 | Available | 7 Days | M 8 | 32 | 18 | 18.8 | 19 | 45.8 | 18.3 | 62.1 | 2.5 | 63 | 150.0 | |
70.86 € | 1 | Available | 7 Days | M 8 | 12 | 18 | 18.8 | 24 | 49.3 | 16.5 | 69.3 | 3 | 78 | 193.0 | |
71.10 € | 1 | Available | 7 Days | M 8 | 16 | 18 | 18.8 | 24 | 49.3 | 16.5 | 69.3 | 3 | 78 | 199.0 | |
71.52 € | 1 | Available | 7 Days | M 8 | 20 | 18 | 18.8 | 24 | 49.3 | 16.5 | 69.3 | 3 | 78 | 198.0 | |
72.58 € | 1 | Available | 7 Days | M 8 | 25 | 18 | 18.8 | 24 | 49.3 | 16.5 | 69.3 | 3 | 78 | 205.0 | |
73.76 € | 1 | Available | 7 Days | M 8 | 32 | 18 | 18.8 | 24 | 49.3 | 16.5 | 69.3 | 3 | 78 | 202.0 | |
71.10 € | 1 | Available | 7 Days | M 10 | 16 | 22 | 22.8 | 24 | 51.3 | 18.5 | 71.3 | 3 | 78 | 206.0 | |
71.52 € | 1 | Available | 7 Days | M 10 | 20 | 22 | 22.8 | 24 | 51.3 | 18.5 | 71.3 | 3 | 78 | 290.0 | |
72.58 € | 1 | Available | 7 Days | M 10 | 25 | 22 | 22.8 | 24 | 51.3 | 18.5 | 71.3 | 3 | 78 | 212.0 | |
73.76 € | 1 | Available | 7 Days | M 10 | 32 | 22 | 22.8 | 24 | 51.3 | 18.5 | 71.3 | 3 | 78 | 207.0 |
Loading...
Basic information
| Finish | PL. polished (Ra < 0.8 µm) | RoHS | Ja | Material (Sealing ring) | H. H-NBR |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
