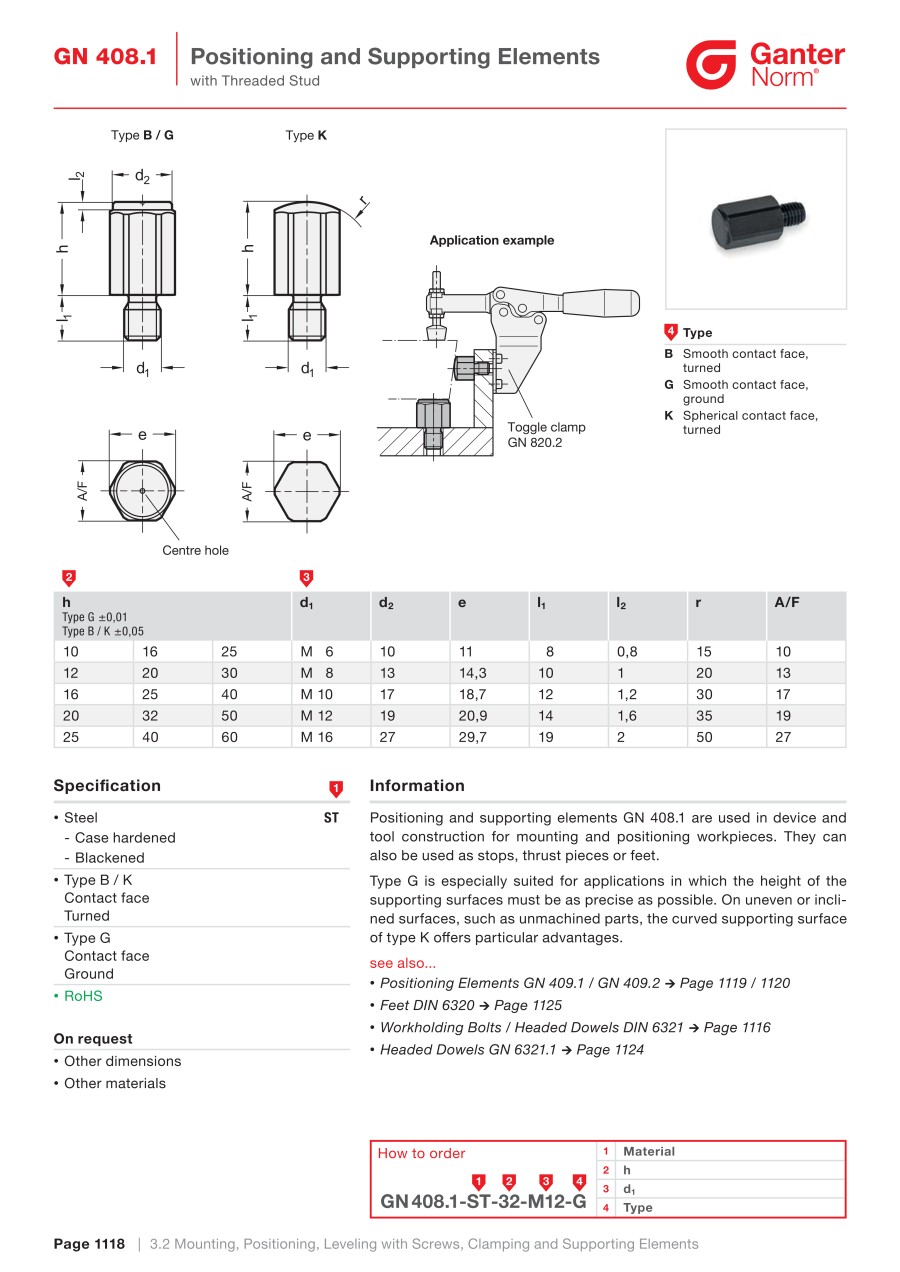

Positioning supporting elements threaded stud
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | l1 | l2 | h | sw | r | Type | d1 | d2 | Weight (g) | e | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3.14 € | 1 | Available | 7 Days | 8 | 0.8 | 10 | 10 | - | B. Smooth contact face. turned | M 6 | 10 | 8.0 | 11 | |
10.00 € | 1 | Available | 7 Days | 8 | 0.8 | 10 | 10 | - | G. Smooth contact face. ground | M 6 | 10 | 8.0 | 11 | |
3.50 € | 1 | Available | 7 Days | 8 | - | 10 | 10 | 15 | K. Spherical contact face. turned | M 6 | - | 8.0 | 11 | |
3.30 € | 1 | Available | 7 Days | 10 | 1 | 12 | 13 | - | B. Smooth contact face. turned | M 8 | 13 | 17.0 | 14.3 | |
11.16 € | 1 | Available | 7 Days | 10 | 1 | 12 | 13 | - | G. Smooth contact face. ground | M 8 | 13 | 17.0 | 14.3 | |
3.84 € | 1 | Available | 7 Days | 10 | - | 12 | 13 | 20 | K. Spherical contact face. turned | M 8 | - | 16.0 | 14.3 | |
3.30 € | 1 | Available | 7 Days | 8 | 0.8 | 16 | 10 | - | B. Smooth contact face. turned | M 6 | 10 | 12.0 | 11 | |
10.38 € | 1 | Available | 7 Days | 8 | 0.8 | 16 | 10 | - | G. Smooth contact face. ground | M 6 | 10 | 12.0 | 11 | |
3.60 € | 1 | Available | 7 Days | 8 | - | 16 | 10 | 15 | K. Spherical contact face. turned | M 6 | - | 12.0 | 11 | |
4.74 € | 1 | Available | 7 Days | 12 | 1.2 | 16 | 17 | - | B. Smooth contact face. turned | M 10 | 17 | 37.0 | 18.7 | |
14.60 € | 1 | Available | 7 Days | 12 | 1.2 | 16 | 17 | - | G. Smooth contact face. ground | M 10 | 17 | 37.0 | 18.7 | |
5.00 € | 1 | Available | 7 Days | 12 | - | 16 | 17 | 30 | K. Spherical contact face. turned | M 10 | - | 36.0 | 18.7 | |
3.68 € | 1 | Available | 7 Days | 10 | 1 | 20 | 13 | - | B. Smooth contact face. turned | M 8 | 13 | 26.0 | 14.3 | |
11.96 € | 1 | Available | 7 Days | 10 | 1 | 20 | 13 | - | G. Smooth contact face. ground | M 8 | 13 | 26.0 | 14.3 | |
4.04 € | 1 | Available | 7 Days | 10 | - | 20 | 13 | 20 | K. Spherical contact face. turned | M 8 | - | 25.0 | 14.3 | |
6.64 € | 1 | Available | 7 Days | 14 | 1.6 | 20 | 19 | - | B. Smooth contact face. turned | M 12 | 19 | 58.0 | 20.9 | |
20.24 € | 1 | Available | 7 Days | 14 | 1.6 | 20 | 19 | - | G. Smooth contact face. ground | M 12 | 19 | 58.0 | 20.9 | |
7.78 € | 1 | Available | 7 Days | 14 | - | 20 | 19 | 35 | K. Spherical contact face. turned | M 12 | - | 57.0 | 20.9 | |
3.50 € | 1 | Available | 7 Days | 8 | 0.8 | 25 | 10 | - | B. Smooth contact face. turned | M 6 | 10 | 18.0 | 11 | |
10.84 € | 1 | Available | 7 Days | 8 | 0.8 | 25 | 10 | - | G. Smooth contact face. ground | M 6 | 10 | 18.0 | 11 | |
3.70 € | 1 | Available | 7 Days | 8 | - | 25 | 10 | 15 | K. Spherical contact face. turned | M 6 | - | 18.0 | 11 | |
5.14 € | 1 | Available | 7 Days | 12 | 1.2 | 25 | 17 | - | B. Smooth contact face. turned | M 10 | 17 | 54.0 | 18.7 | |
15.70 € | 1 | Available | 7 Days | 12 | 1.2 | 25 | 17 | - | G. Smooth contact face. ground | M 10 | 17 | 54.0 | 18.7 | |
5.18 € | 1 | Available | 7 Days | 12 | - | 25 | 17 | 30 | K. Spherical contact face. turned | M 10 | - | 53.0 | 18.7 | |
11.38 € | 1 | Available | 7 Days | 19 | 2 | 25 | 27 | - | B. Smooth contact face. turned | M 16 | 27 | 146.0 | 29.7 | |
30.50 € | 1 | Available | 7 Days | 19 | 2 | 25 | 27 | - | G. Smooth contact face. ground | M 16 | 27 | 146.0 | 29.7 | |
12.80 € | 1 | Available | 7 Days | 19 | - | 25 | 27 | 50 | K. Spherical contact face. turned | M 16 | - | 143.0 | 29.7 | |
4.06 € | 1 | Available | 7 Days | 10 | 1 | 30 | 13 | - | B. Smooth contact face. turned | M 8 | 13 | 37.0 | 14.3 | |
12.88 € | 1 | Available | 7 Days | 10 | 1 | 30 | 13 | - | G. Smooth contact face. ground | M 8 | 13 | 37.0 | 14.3 | |
4.58 € | 1 | Available | 7 Days | 10 | - | 30 | 13 | 20 | K. Spherical contact face. turned | M 8 | - | 36.0 | 14.3 | |
8.36 € | 1 | Available | 7 Days | 14 | 1.6 | 32 | 19 | - | B. Smooth contact face. turned | M 12 | 19 | 87.0 | 20.9 | |
22.14 € | 1 | Available | 7 Days | 14 | 1.6 | 32 | 19 | - | G. Smooth contact face. ground | M 12 | 19 | 87.0 | 20.9 | |
8.64 € | 1 | Available | 7 Days | 14 | - | 32 | 19 | 35 | K. Spherical contact face. turned | M 12 | - | 86.0 | 20.9 | |
5.96 € | 1 | Available | 7 Days | 12 | 1.2 | 40 | 17 | - | B. Smooth contact face. turned | M 10 | 17 | 83.0 | 18.7 | |
14.80 € | 1 | Available | 7 Days | 12 | 1.2 | 40 | 17 | - | G. Smooth contact face. ground | M 10 | 17 | 83.0 | 18.7 | |
6.14 € | 1 | Available | 7 Days | 12 | - | 40 | 17 | 30 | K. Spherical contact face. turned | M 10 | - | 82.0 | 18.7 | |
12.86 € | 1 | Available | 7 Days | 19 | 2 | 40 | 27 | - | B. Smooth contact face. turned | M 16 | 27 | 219.0 | 29.7 | |
33.04 € | 1 | Available | 7 Days | 19 | 2 | 40 | 27 | - | G. Smooth contact face. ground | M 16 | 27 | 219.0 | 29.7 | |
15.26 € | 1 | Available | 7 Days | 19 | - | 40 | 27 | 50 | K. Spherical contact face. turned | M 16 | - | 215.0 | 29.7 | |
8.76 € | 1 | Available | 7 Days | 14 | 1.6 | 50 | 19 | - | B. Smooth contact face. turned | M 12 | 19 | 130.0 | 20.9 | |
25.96 € | 1 | Available | 7 Days | 14 | 1.6 | 50 | 19 | - | G. Smooth contact face. ground | M 12 | 19 | 130.0 | 20.9 | |
9.96 € | 1 | Available | 7 Days | 14 | - | 50 | 19 | 35 | K. Spherical contact face. turned | M 12 | - | 129.0 | 20.9 | |
14.94 € | 1 | Available | 7 Days | 19 | 2 | 60 | 27 | - | B. Smooth contact face. turned | M 16 | 27 | 315.0 | 29.7 | |
35.46 € | 1 | Available | 7 Days | 19 | 2 | 60 | 27 | - | G. Smooth contact face. ground | M 16 | 27 | 315.0 | 29.7 | |
17.40 € | 1 | Available | 7 Days | 19 | - | 60 | 27 | 50 | K. Spherical contact face. turned | M 16 | - | 311.0 | 29.7 |
Loading...
Basic information
| RoHS | Ja | Material | ST. Steel |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
