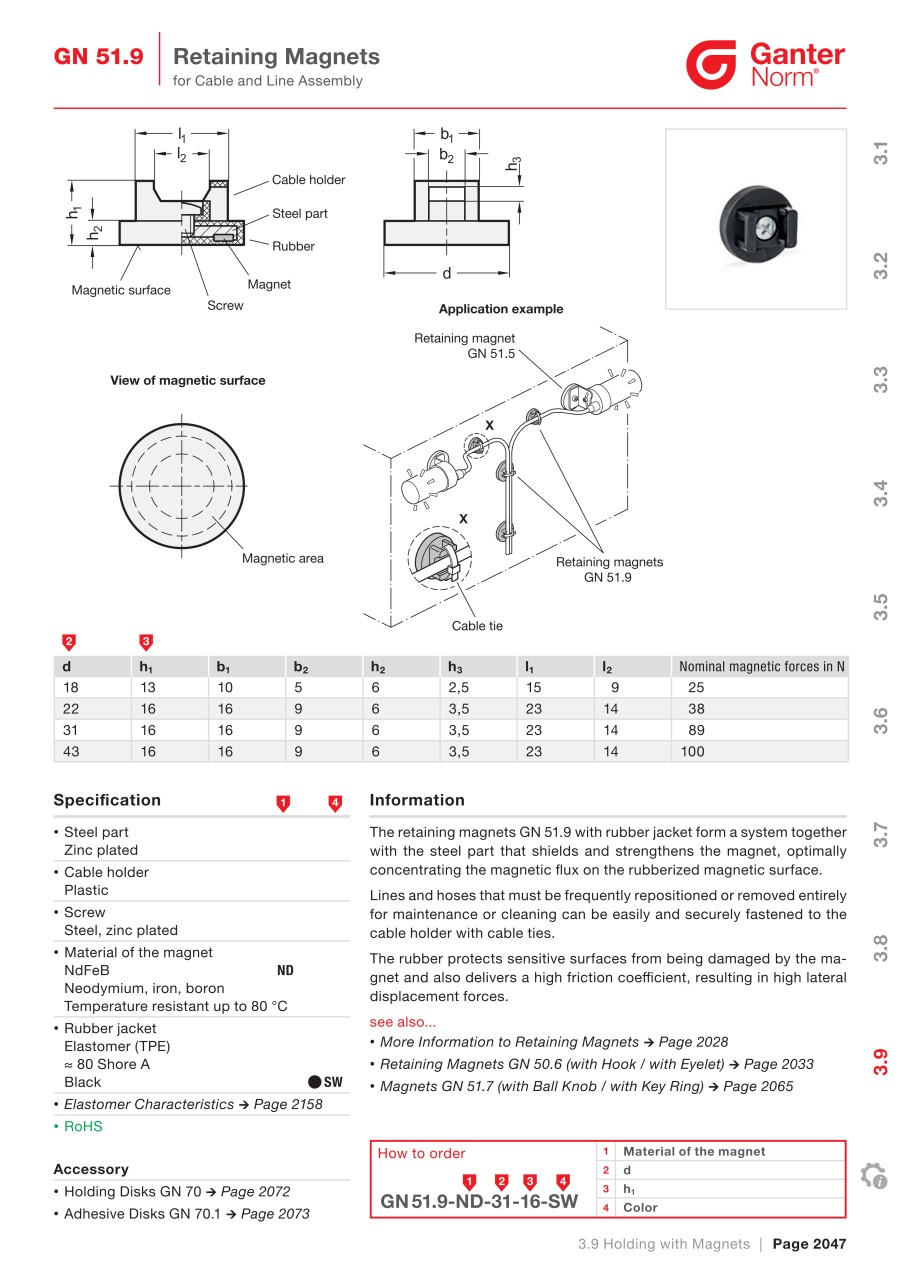

Retaining magnets, cable line assembly
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 51.9-ND-18-13-SW |
| 51.9-ND-22-16-SW |
| 51.9-ND-31-16-SW |
| 51.9-ND-43-16-SW |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | b1 | h1 | l1 | h3 | Nennhaftkräfte | Diameter d | l2 | Weight (g) | b2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
7.98 € | 1 | Available | 7 Days | 10 | 13 | 15 | 2.5 | 25. 25 | 18 | 9 | 7.0 | 5 | |
8.88 € | 1 | Available | 7 Days | 16 | 16 | 23 | 3.5 | 38. 38 | 22 | 14 | 12.0 | 9 | |
10.40 € | 1 | Available | 7 Days | 16 | 16 | 23 | 3.5 | 89. 89 | 31 | 14 | 26.0 | 9 | |
10.86 € | 1 | Available | 7 Days | 16 | 16 | 23 | 3.5 | 100. 100 | 43 | 14 | 30.0 | 9 |
Loading...
Basic information
| h2 | 6 | Color | SW | Material of the magnet | ND. NdFeB |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
