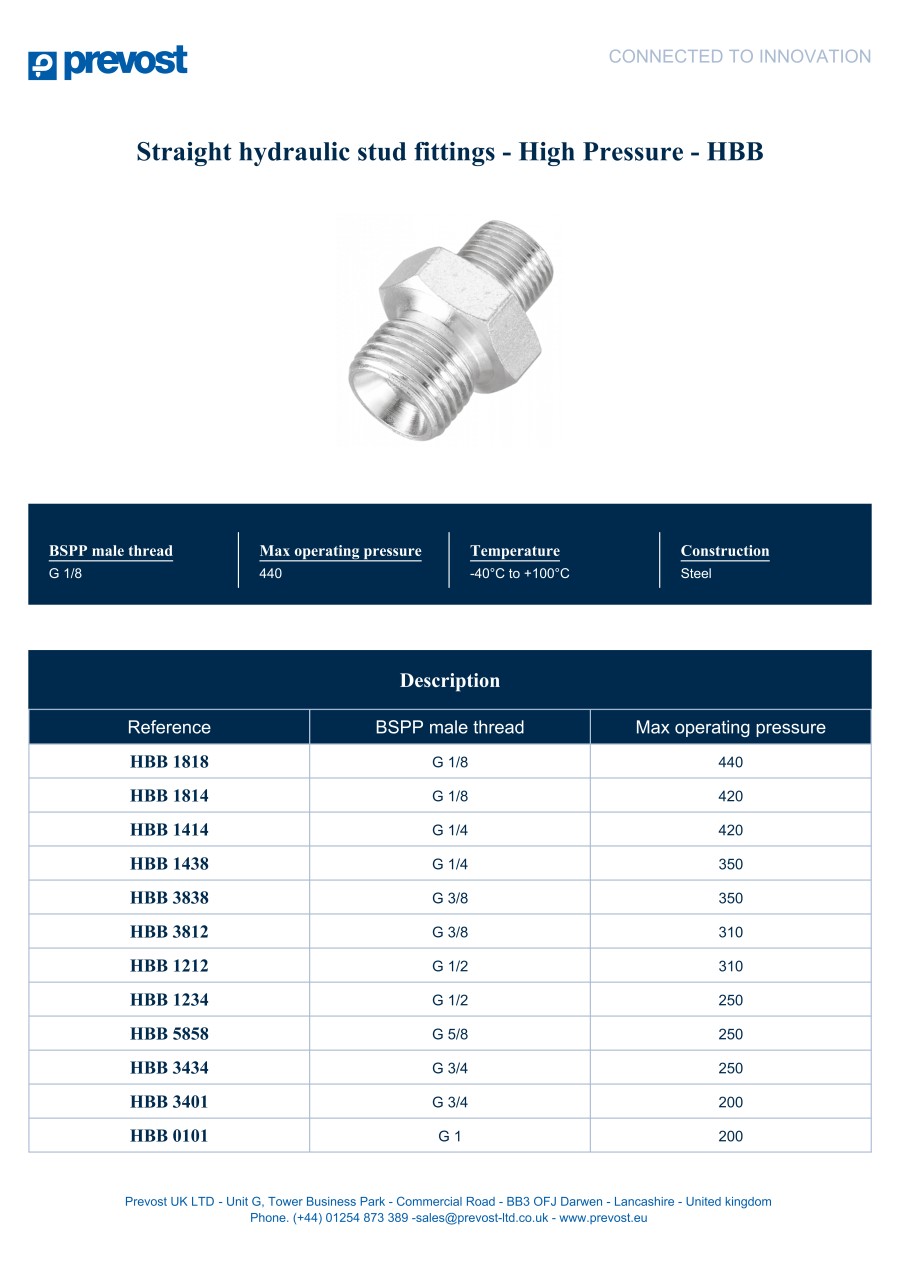

Straight Hydraulic Connector
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Width (mm) | Length (mm) | Metric Male Thread (DIN 3852-1) | BSPT Male Thread | NPT Male Thread | Metric Male Thread (DIN 3852-1) 1 | BSPP Male Thread 1 | BSPP Male Thread 2 | Max. Operating Pressure (bar) | Height (mm) | Metric Male Thread (DIN 3852-1) 2 | BSPP Male Thread | Thread (JIC 37�) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
14.08 € | 1 | 7 Days | 36 | 42 | - | - | - | - | G 1 | G 1 | 200 | 50 | - | - | - | ||
6.62 € | 1 | 7 Days | 27 | 31 | - | - | - | - | G 1/2 | G 1/2 | 310 | 44 | - | - | - | ||
11.05 € | 1 | 7 Days | 33 | 37 | - | - | - | - | G 1/2 | G 3/4 | 250 | 51 | - | - | - | ||
3.28 € | 1 | 7 Days | 14 | 16 | - | - | - | - | G 1/4 | G 1/4 | 420 | 30 | - | - | - | ||
3.67 € | 1 | 7 Days | 22 | 25 | - | - | - | - | G 1/4 | G 3/8 | 350 | 36 | - | - | - | ||
4.23 € | 1 | 7 Days | 14 | 16 | - | - | - | - | G 1/8 | G 1/4 | 420 | 28 | - | - | - | ||
3.32 € | 1 | 7 Days | 13 | 15 | - | - | - | - | G 1/8 | G 1/8 | 440 | 26 | - | - | - | ||
16.67 € | 1 | 7 Days | 41 | 47 | - | - | - | - | G 3/4 | G 1 | 250 | 50 | - | - | - | ||
14.17 € | 1 | 7 Days | 34 | 37 | - | - | - | - | G 3/4 | G 3/4 | 250 | 52 | - | - | - | ||
6.22 € | 1 | 7 Days | 27 | 31 | - | - | - | - | G 3/8 | G 1/2 | 310 | 45 | - | - | - | ||
3.57 € | 1 | 7 Days | 22 | 25 | - | - | - | - | G 3/8 | G 3/8 | 350 | 39 | - | - | - | ||
10.78 € | 1 | 7 Days | 24 | 28 | - | - | - | - | G 5/8 | G 5/8 | 250 | 42 | - | - | - | ||
5.97 € | 1 | 7 Days | 19 | 22 | - | - | - | M14 X 150 | - | - | 330 | 31 | M14 X 150 | - | - | ||
7.08 € | 1 | 7 Days | 22 | 25 | - | - | - | M16 X 150 | - | - | 310 | 39 | M16 X 150 | - | - | ||
8.87 € | 1 | 7 Days | 24 | 28 | - | - | - | M18 X 150 | - | - | 250 | 41 | M18 X 150 | - | - | ||
12.30 € | 1 | 7 Days | 22 | 26 | - | - | - | M22 X 150 | - | - | 250 | 32 | M22 X 150 | - | - | ||
19.62 € | 1 | 7 Days | 27 | 31 | - | - | - | M26 X 150 | - | - | 200 | 33 | M26 X 150 | - | - | ||
24.58 € | 1 | 7 Days | 30 | 35 | - | - | - | M30 X 150 | - | - | 200 | 34 | M30 X 150 | - | - | ||
15.18 € | 1 | 7 Days | 36 | 42 | - | - | - | - | R 1 | G 1 | 200 | 54 | - | - | - | ||
5.58 € | 1 | 7 Days | 22 | 26 | - | - | - | - | R 1/2 | G 1/2 | 290 | 43 | - | - | - | ||
16.60 € | 1 | 7 Days | 27 | 31 | - | - | - | - | R 1/2 | G 3/4 | 250 | 47 | - | - | - | ||
7.43 € | 1 | 7 Days | 22 | 26 | - | - | - | - | R 1/2 | G 3/8 | 290 | 41 | - | - | - | ||
3.32 € | 1 | 7 Days | 14 | 16 | - | - | - | - | R 1/4 | G 1/4 | 420 | 33 | - | - | - | ||
8.70 € | 1 | 7 Days | 14 | 16 | - | - | - | - | R 1/4 | G 1/8 | 420 | 30 | - | - | - | ||
4.90 € | 1 | 7 Days | 18 | 20 | - | - | - | - | R 1/4 | G 3/8 | 350 | 37 | - | - | - | ||
4.42 € | 1 | 7 Days | 14 | 16 | - | - | - | - | R 1/8 | G 1/4 | 440 | 29 | - | - | - | ||
3.07 € | 1 | 7 Days | 13 | 15 | - | - | - | - | R 1/8 | G 1/8 | 440 | 26 | - | - | - | ||
22.47 € | 1 | 7 Days | 41 | 47 | - | - | - | - | R 3/4 | G 1 | 200 | 50 | - | - | - | ||
10.98 € | 1 | 7 Days | 27 | 31 | - | - | - | - | R 3/4 | G 3/4 | 250 | 47 | - | - | - | ||
7.17 € | 1 | 7 Days | 22 | 26 | - | - | - | - | R 3/8 | G 1/2 | 310 | 39 | - | - | - | ||
6.10 € | 1 | 7 Days | 19 | 22 | - | - | - | - | R 3/8 | G 1/4 | 310 | 38 | - | - | - | ||
4.07 € | 1 | 7 Days | 19 | 20 | - | - | - | - | R 3/8 | G 3/8 | 310 | 38 | - | - | - | ||
46.77 € | 1 | 7 Days | 36 | 42 | M30 X 150 | R 1 | - | - | - | - | 200 | 46 | - | - | - | ||
18.68 € | 1 | 7 Days | 24 | 27 | M18 X 150 | R 1/2 | - | - | - | - | 250 | 42 | - | - | - | ||
13.13 € | 1 | 7 Days | 27 | 27 | M22 X 150 | R 1/2 | - | - | - | - | 250 | 48 | - | - | - | ||
24.12 € | 1 | 7 Days | 27 | 31 | M26 X 150 | R 1/2 | - | - | - | - | 200 | 40 | - | - | - | ||
5.10 € | 1 | 7 Days | 14 | 16 | M14 X 150 | R 1/4 | - | - | - | - | 330 | 31 | - | - | - | ||
7.08 € | 1 | 7 Days | 22 | 22 | M16 X 150 | R 1/4 | - | - | - | - | 310 | 37 | - | - | - | ||
23.08 € | 1 | 7 Days | 27 | 31 | M26 X 150 | R 3/4 | - | - | - | - | 200 | 40 | - | - | - | ||
25.57 € | 1 | 7 Days | 30 | 35 | M30 X 150 | R 3/4 | - | - | - | - | 200 | 42 | - | - | - | ||
7.32 € | 1 | 7 Days | 17 | 20 | M16 X 150 | R 3/8 | - | - | - | - | 310 | 32 | - | - | - | ||
9.80 € | 1 | 7 Days | 19 | 22 | M18 X 150 | R 3/8 | - | - | - | - | 250 | 32 | - | - | - | ||
5.57 € | 1 | 7 Days | 14 | 16 | - | - | 1/8" MNPT | - | - | - | 440 | 28 | - | G 1/4 | - | ||
4.42 € | 1 | 7 Days | 13 | 15 | - | - | 1/8" MNPT | - | - | - | 440 | 26 | - | G 1/8 | - | ||
5.37 € | 1 | 7 Days | 14 | 16 | - | - | 1/4" MNPT | - | - | - | 420 | 32 | - | G 1/4 | - | ||
5.07 € | 1 | 7 Days | 14 | 16 | - | - | 1/4" MNPT | - | - | - | 420 | 31 | - | G 1/8 | - | ||
6.95 € | 1 | 7 Days | 17 | 20 | - | - | 1/4" MNPT | - | - | - | 350 | 34 | - | G 3/8 | - | ||
10.37 € | 1 | 7 Days | 22 | 26 | - | - | 1/4" MNPT | - | - | - | 310 | 39 | - | G 1/2 | - | ||
5.88 € | 1 | 7 Days | 19 | 22 | - | - | 3/8" MNPT | - | - | - | 310 | 33 | - | G 1/4 | - | ||
6.42 € | 1 | 7 Days | 19 | 22 | - | - | 3/8" MNPT | - | - | - | 310 | 35 | - | G 3/8 | - | ||
9.17 € | 1 | 7 Days | 27 | 31 | - | - | 1/2" MNPT | - | - | - | 290 | 54 | - | G 1/2 | - | ||
17.00 € | 1 | 7 Days | 34 | 37 | - | - | 1/2" MNPT | - | - | - | 250 | 53 | - | G 3/4 | - | ||
9.57 € | 1 | 7 Days | 22 | 26 | - | - | 1/2" MNPT | - | - | - | 290 | 41 | - | G 3/8 | - | ||
21.55 € | 1 | 7 Days | 36 | 42 | - | - | 3/4" MNPT | - | - | - | 200 | 50 | - | G 1 | - | ||
16.20 € | 1 | 7 Days | 28 | 31 | - | - | 3/4" MNPT | - | - | - | 250 | 44 | - | G 1/2 | - | ||
14.48 € | 1 | 7 Days | 32 | 37 | - | - | 3/4" MNPT | - | - | - | 200 | 53 | - | G 3/4 | - | ||
25.65 € | 1 | 7 Days | 36 | 42 | - | - | 1" MNPT | - | - | - | 200 | 53 | - | G 1 | - | ||
24.52 € | 1 | 7 Days | 36 | 42 | - | - | 1" MNPT | - | - | - | 200 | 52 | - | G 3/4 | - | ||
54.62 € | 1 | 7 Days | 50 | 58 | - | - | 1 1/4" MNPT | - | - | - | 200 | 64 | - | G 1 1/4 | - | ||
67.15 € | 1 | 7 Days | 55 | 63 | - | - | 1 1/2" MNPT | - | - | - | 180 | 71 | - | G 1 1/2 | - |
Loading...
Basic information
| Temperature(�C) | -40 - +100 |
|---|
Configure
Basic Attributes
-
Width(mm)
-
Length(mm)
-
Metric Male Thread (DIN 3852-1)
-
BSPT Male Thread
-
NPT Male Thread
-
Metric Male Thread (DIN 3852-1) 1
-
BSPP Male Thread 1
-
BSPP Male Thread 2
-
Max. Operating Pressure(bar)
-
Height(mm)
-
Metric Male Thread (DIN 3852-1) 2
-
BSPP Male Thread
-
Thread (JIC 37�)
Filter by standard shipping days
-
- All
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
