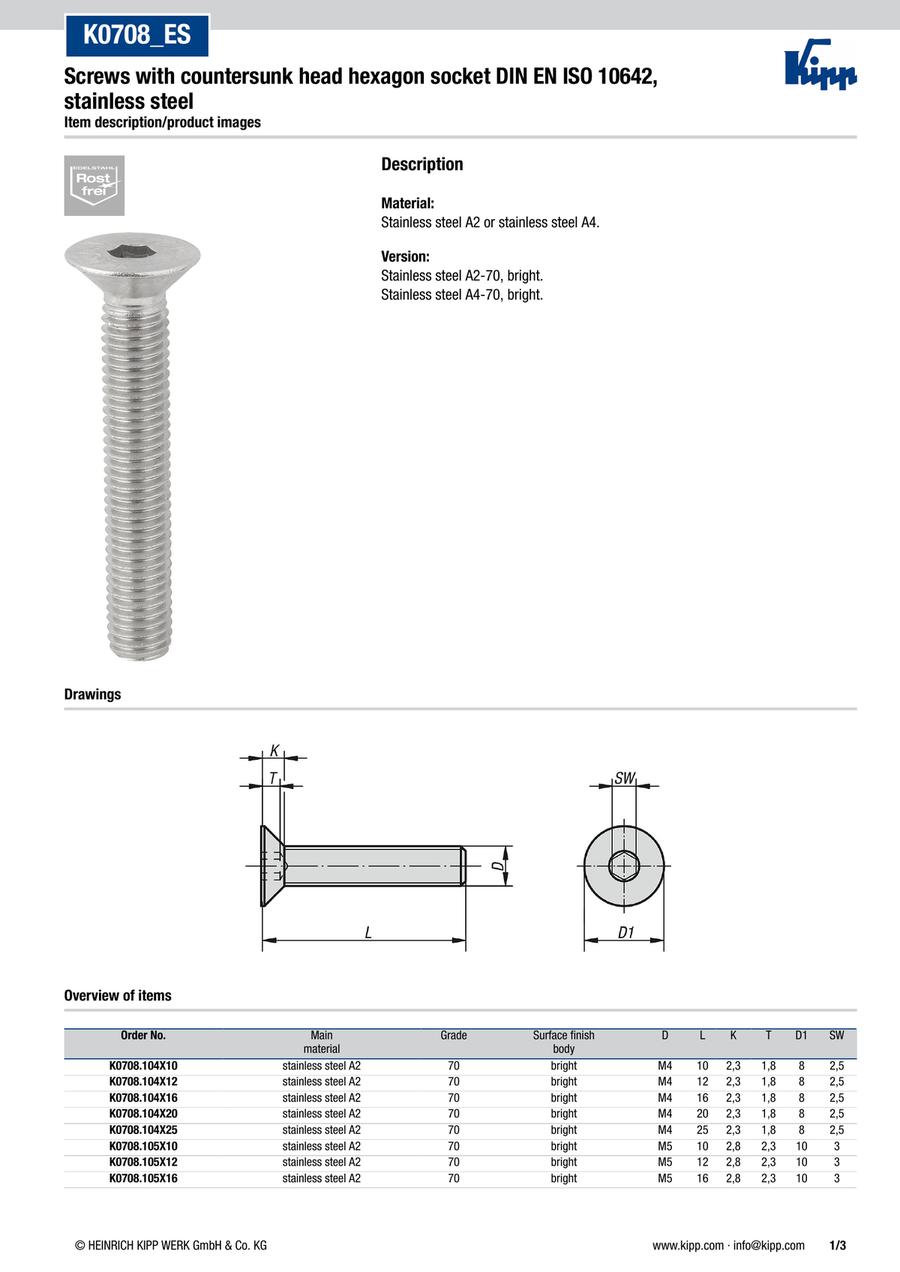

Screws with countersunk head hexagon socket DIN EN ISO 10642, stainless steel (K0708)
· Bright
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D=thread (M) | Length L (mm) | D1 (mm) | T (mm) | SW=key width (mm) | Steel code | K (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
0.56 € | 1 | 4 Days | 4 | 10 | 8 | 1.8 | 2.5 | A2 | 2.3 | ||
0.56 € | 1 | 4 Days | 4 | 12 | 8 | 1.8 | 2.5 | A2 | 2.3 | ||
0.43 € | 1 | 4 Days | 4 | 16 | 8 | 1.8 | 2.5 | A2 | 2.3 | ||
0.51 € | 1 | 4 Days | 4 | 20 | 8 | 1.8 | 2.5 | A2 | 2.3 | ||
0.54 € | 1 | 4 Days | 4 | 25 | 8 | 1.8 | 2.5 | A2 | 2.3 | ||
0.56 € | 1 | 4 Days | 5 | 10 | 10 | 2.3 | 3 | A2 | 2.8 | ||
0.56 € | 1 | 4 Days | 5 | 12 | 10 | 2.3 | 3 | A2 | 2.8 | ||
0.43 € | 1 | 4 Days | 5 | 16 | 10 | 2.3 | 3 | A2 | 2.8 | ||
0.51 € | 1 | 4 Days | 5 | 20 | 10 | 2.3 | 3 | A2 | 2.8 | ||
0.54 € | 1 | 4 Days | 5 | 25 | 10 | 2.3 | 3 | A2 | 2.8 | ||
0.56 € | 1 | 4 Days | 5 | 30 | 10 | 2.3 | 3 | A2 | 2.8 | ||
0.66 € | 1 | 4 Days | 6 | 10 | 12 | 2.5 | 4 | A2 | 3.3 | ||
0.66 € | 1 | 4 Days | 6 | 12 | 12 | 2.5 | 4 | A2 | 3.3 | ||
0.56 € | 1 | 4 Days | 6 | 16 | 12 | 2.5 | 4 | A2 | 3.3 | ||
0.56 € | 1 | 4 Days | 6 | 20 | 12 | 2.5 | 4 | A2 | 3.3 | ||
0.59 € | 1 | 4 Days | 6 | 25 | 12 | 2.5 | 4 | A2 | 3.3 | ||
0.67 € | 1 | 4 Days | 6 | 30 | 12 | 2.5 | 4 | A2 | 3.3 | ||
0.72 € | 1 | 4 Days | 6 | 35 | 12 | 2.5 | 4 | A2 | 3.3 | ||
0.78 € | 1 | 4 Days | 6 | 40 | 12 | 2.5 | 4 | A2 | 3.3 | ||
0.94 € | 1 | 4 Days | 6 | 45 | 12 | 2.5 | 4 | A2 | 3.3 | ||
0.98 € | 1 | 4 Days | 6 | 50 | 12 | 2.5 | 4 | A2 | 3.3 | ||
1.64 € | 1 | 4 Days | 6 | 60 | 12 | 2.5 | 4 | A2 | 3.3 | ||
0.92 € | 1 | 4 Days | 8 | 16 | 16 | 3.5 | 5 | A2 | 4.4 | ||
0.94 € | 1 | 4 Days | 8 | 20 | 16 | 3.5 | 5 | A2 | 4.4 | ||
0.78 € | 1 | 4 Days | 8 | 25 | 16 | 3.5 | 5 | A2 | 4.4 | ||
0.84 € | 1 | 4 Days | 8 | 30 | 16 | 3.5 | 5 | A2 | 4.4 | ||
0.93 € | 1 | 4 Days | 8 | 35 | 16 | 3.5 | 5 | A2 | 4.4 | ||
1.00 € | 1 | 4 Days | 8 | 40 | 16 | 3.5 | 5 | A2 | 4.4 | ||
1.00 € | 1 | 4 Days | 8 | 45 | 16 | 3.5 | 5 | A2 | 4.4 | ||
1.08 € | 1 | 4 Days | 8 | 50 | 16 | 3.5 | 5 | A2 | 4.4 | ||
1.68 € | 1 | 4 Days | 8 | 60 | 16 | 3.5 | 5 | A2 | 4.4 | ||
1.32 € | 1 | 4 Days | 10 | 16 | 20 | 4.4 | 6 | A2 | 5.5 | ||
1.02 € | 1 | 4 Days | 10 | 20 | 20 | 4.4 | 6 | A2 | 5.5 | ||
1.00 € | 1 | 4 Days | 10 | 25 | 20 | 4.4 | 6 | A2 | 5.5 | ||
1.00 € | 1 | 4 Days | 10 | 30 | 20 | 4.4 | 6 | A2 | 5.5 | ||
1.05 € | 1 | 4 Days | 10 | 35 | 20 | 4.4 | 6 | A2 | 5.5 | ||
1.18 € | 1 | 4 Days | 10 | 40 | 20 | 4.4 | 6 | A2 | 5.5 | ||
1.27 € | 1 | 4 Days | 10 | 45 | 20 | 4.4 | 6 | A2 | 5.5 | ||
1.33 € | 1 | 4 Days | 10 | 50 | 20 | 4.4 | 6 | A2 | 5.5 | ||
1.79 € | 1 | 4 Days | 10 | 60 | 20 | 4.4 | 6 | A2 | 5.5 | ||
2.30 € | 1 | 4 Days | 10 | 70 | 20 | 4.4 | 6 | A2 | 5.5 | ||
1.52 € | 1 | 4 Days | 12 | 20 | 24 | 4.6 | 8 | A2 | 6.5 | ||
1.45 € | 1 | 4 Days | 12 | 25 | 24 | 4.6 | 8 | A2 | 6.5 | ||
1.46 € | 1 | 4 Days | 12 | 30 | 24 | 4.6 | 8 | A2 | 6.5 | ||
1.53 € | 1 | 4 Days | 12 | 35 | 24 | 4.6 | 8 | A2 | 6.5 | ||
1.64 € | 1 | 4 Days | 12 | 40 | 24 | 4.6 | 8 | A2 | 6.5 | ||
1.86 € | 1 | 4 Days | 12 | 45 | 24 | 4.6 | 8 | A2 | 6.5 | ||
2.01 € | 1 | 4 Days | 12 | 50 | 24 | 4.6 | 8 | A2 | 6.5 | ||
2.20 € | 1 | 4 Days | 12 | 60 | 24 | 4.6 | 8 | A2 | 6.5 | ||
3.19 € | 1 | 4 Days | 12 | 70 | 24 | 4.6 | 8 | A2 | 6.5 | ||
3.19 € | 1 | 4 Days | 12 | 80 | 24 | 4.6 | 8 | A2 | 6.5 | ||
5.21 € | 1 | 4 Days | 16 | 30 | 30 | 5.3 | 10 | A2 | 7.5 | ||
5.59 € | 1 | 4 Days | 16 | 35 | 30 | 5.3 | 10 | A2 | 7.5 | ||
6.24 € | 1 | 4 Days | 16 | 40 | 30 | 5.3 | 10 | A2 | 7.5 | ||
6.52 € | 1 | 4 Days | 16 | 45 | 30 | 5.3 | 10 | A2 | 7.5 | ||
6.69 € | 1 | 4 Days | 16 | 50 | 30 | 5.3 | 10 | A2 | 7.5 | ||
7.39 € | 1 | 4 Days | 16 | 60 | 30 | 5.3 | 10 | A2 | 7.5 | ||
8.63 € | 1 | 4 Days | 16 | 70 | 30 | 5.3 | 10 | A2 | 7.5 | ||
9.89 € | 1 | 4 Days | 16 | 80 | 30 | 5.3 | 10 | A2 | 7.5 | ||
0.72 € | 1 | 4 Days | 4 | 10 | 8 | 1.8 | 2.5 | A4 | 2.3 |
Loading...
Basic information
| Material | Stainless Steel | Surface finish body | bright | Grade | 70 |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
