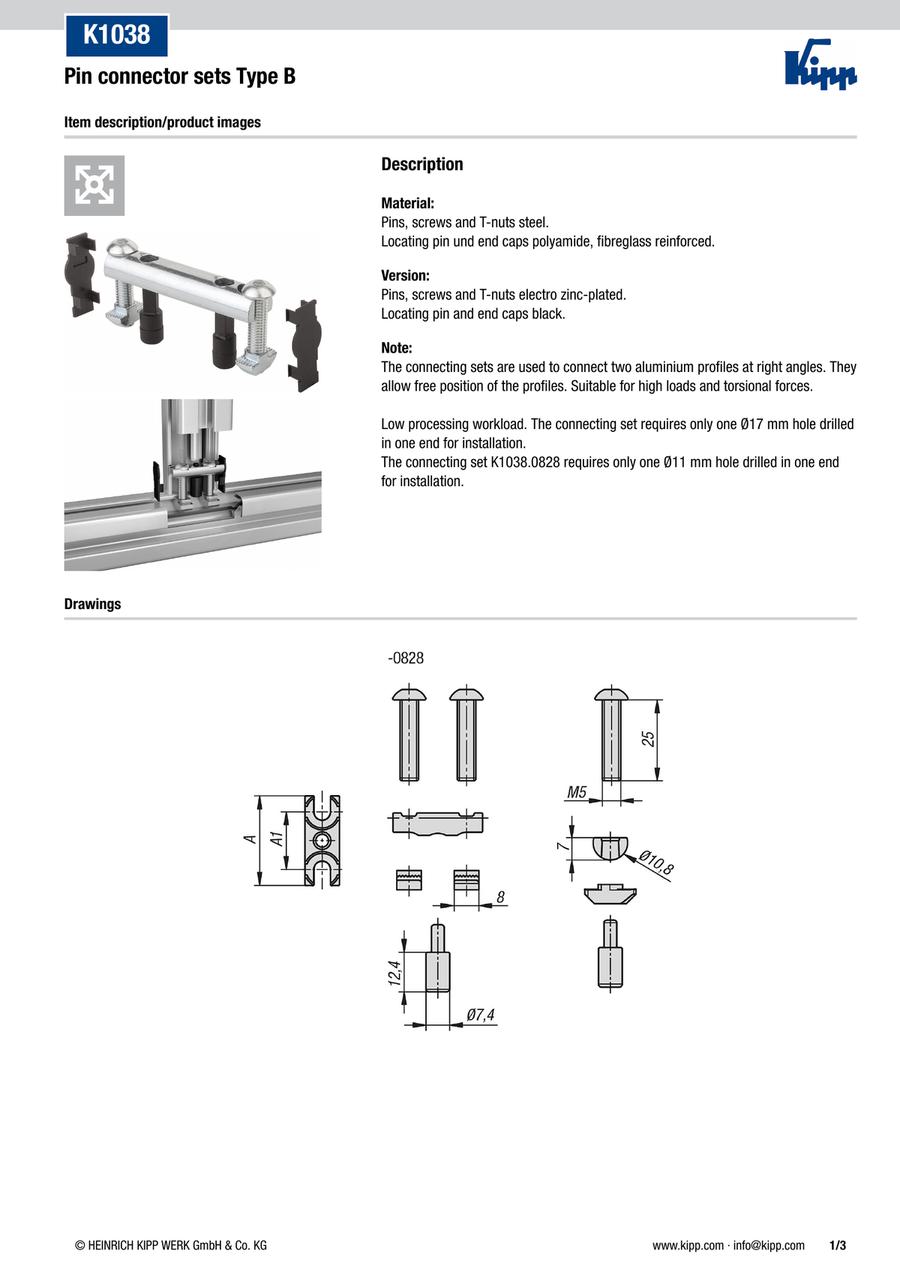

Pin connector sets Type B (K1038)
· Allow free positioning of the profiles
· Low processing workload
· For right angle connections
· Low processing workload
· For right angle connections
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K1038.0828 |
| K1038.1040 |
| K1038.1045 |
| K1038.1060 |
| K1038.1080 |
| K1038.1090 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Slot width (mm) | A (mm) | A1 (mm) | A2 (mm) | D (mm) | L (mm) | L1 (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
5.58 € | 1 | 4 Days | 8 | 28 | 18 | - | 11 | - | 18 | ||
4.36 € | 1 | 4 Days | 10 | 37 | 23 | - | 17 | 40 | 22.5 | ||
4.36 € | 1 | 4 Days | 10 | 42 | 28 | - | 17 | 45 | 22.5 | ||
5.47 € | 1 | 4 Days | 10 | 57 | 43 | - | 17 | 60 | 22.5 | ||
5.64 € | 1 | 4 Days | 10 | 77 | 63 | 40 | 17 | 80 | 22.5 | ||
5.64 € | 1 | 4 Days | 10 | 87 | 73 | 45 | 17 | 90 | 22.5 |
Loading...
Basic information
| Main material | Steel | Surface finish body | galvanised | Component material | Polyamide |
|---|---|---|---|---|---|
| Component colour | black | Type | B |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
