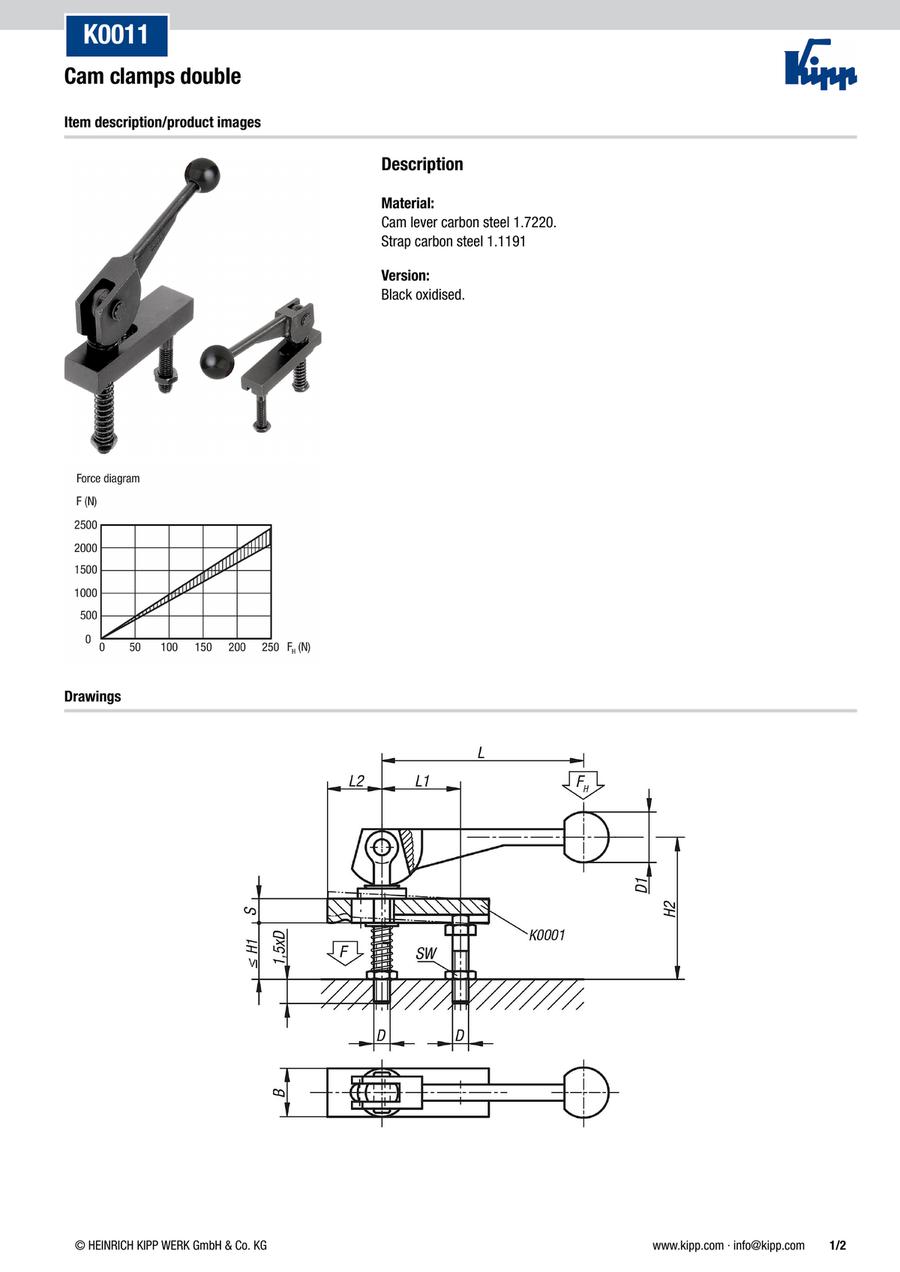

Cam clamps double (K0011)
· Cam levers are used for quick and torque-free clamping
· Workpiece needs no further securing
· Easy to operate
· High clamping forces
· Application sectors: machine construction, toolmaking, fixture construction
· Workpiece needs no further securing
· Easy to operate
· High clamping forces
· Application sectors: machine construction, toolmaking, fixture construction
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0011.08 |
| K0011.10 |
| K0011.12 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | B (mm) | D=Thread (mm) | D1 (mm) | H1 max. (mm) | H2 (mm) | L=Handle length (mm) | L1 (mm) | L2 (mm) | S (mm) | SW (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
77.30 € | 1 | 4 Days | 20 | M8 | 25 | 28 | 74 | 104±2 | 39 | 37 | 12 | 13 | ||
104.82 € | 1 | 4 Days | 25 | M10 | 30 | 39 | 92 | 123±2 | 49 | 46 | 16 | 17 | ||
152.95 € | 1 | 4 Days | 32 | M12 | 30 | 49 | 120 | 146±3 | 61 | 58 | 20 | 19 |
Loading...
Basic information
| Main material | High carbon steel | Surface finish body | black oxidised | Component material | High carbon steel |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
