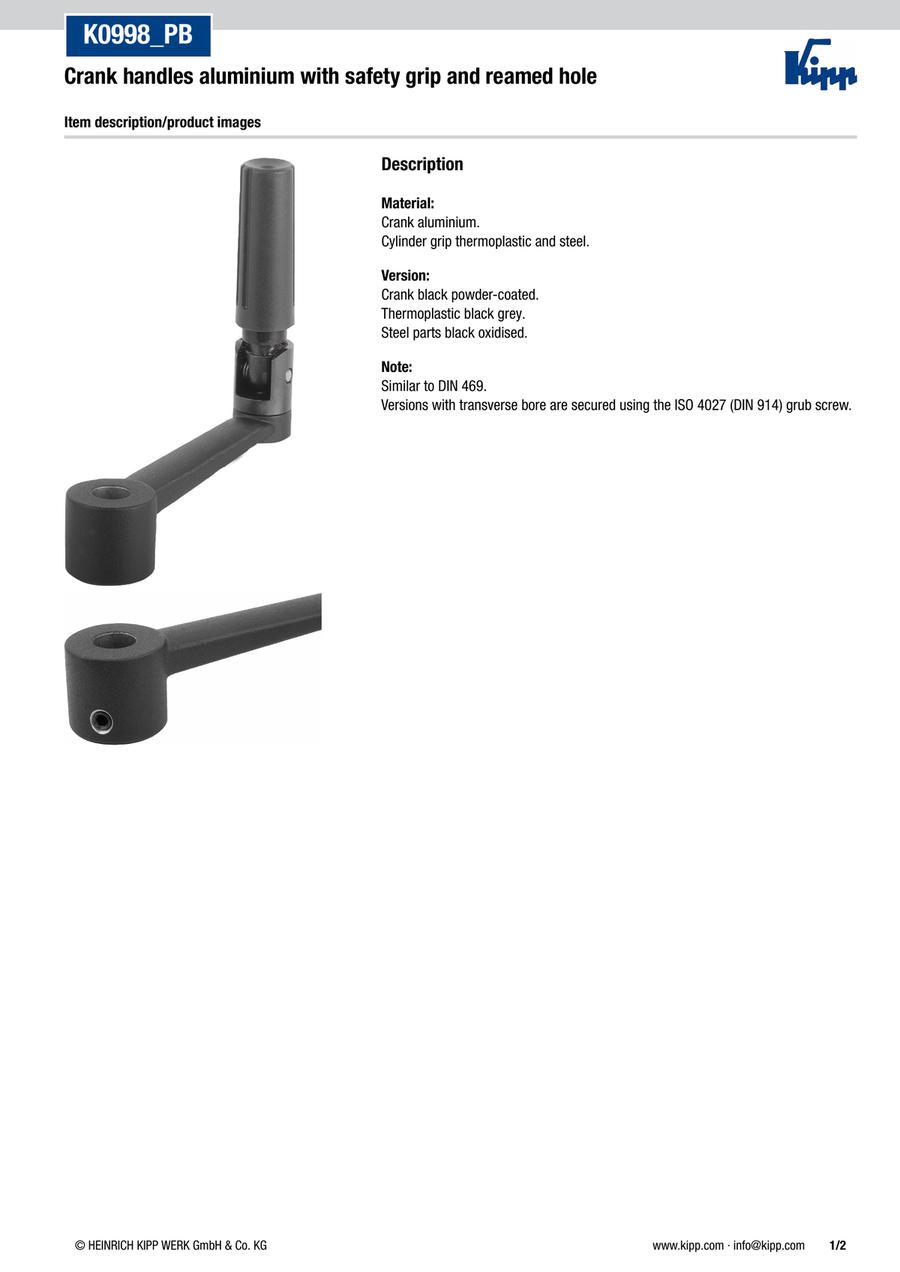

Crank handles aluminium with safety grip and reamed hole (K0998)
· For long adjustment travel
· Application sectors: machine, plant, armament and instrument construction, measuring equipment
· Version: reamed hole
· Swivels back automatically after releasing
· Application sectors: machine, plant, armament and instrument construction, measuring equipment
· Version: reamed hole
· Swivels back automatically after releasing
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0998.1110 |
| K0998.1212 |
| K0998.1314 |
| K0998.1417 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Size | A=Centre distance (mm) | D (mm) | D2=Fastening hole (mm) | D3 (mm) | H=Height (mm) | H1=Handle height (mm) | H2 (mm) | H3 (mm) | L=Length (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
48.47 € | 1 | 4 Days | 1 | 80 | 24 | 10 | 16 | 87.5 | 47.5 | 22 | 13.4 | 100 | ||
56.58 € | 1 | 4 Days | 2 | 100 | 28 | 12 | 20 | 106.9 | 58.4 | 26 | 16 | 124 | ||
75.08 € | 1 | 4 Days | 3 | 125 | 30 | 14 | 26 | 139.1 | 82.1 | 28 | 15.8 | 153 | ||
78.11 € | 1 | 4 Days | 4 | 160 | 34 | 17 | 26 | 143.1 | 82.1 | 32 | 19.6 | 190 |
Loading...
Basic information
| Handle, Material | Aluminum |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
