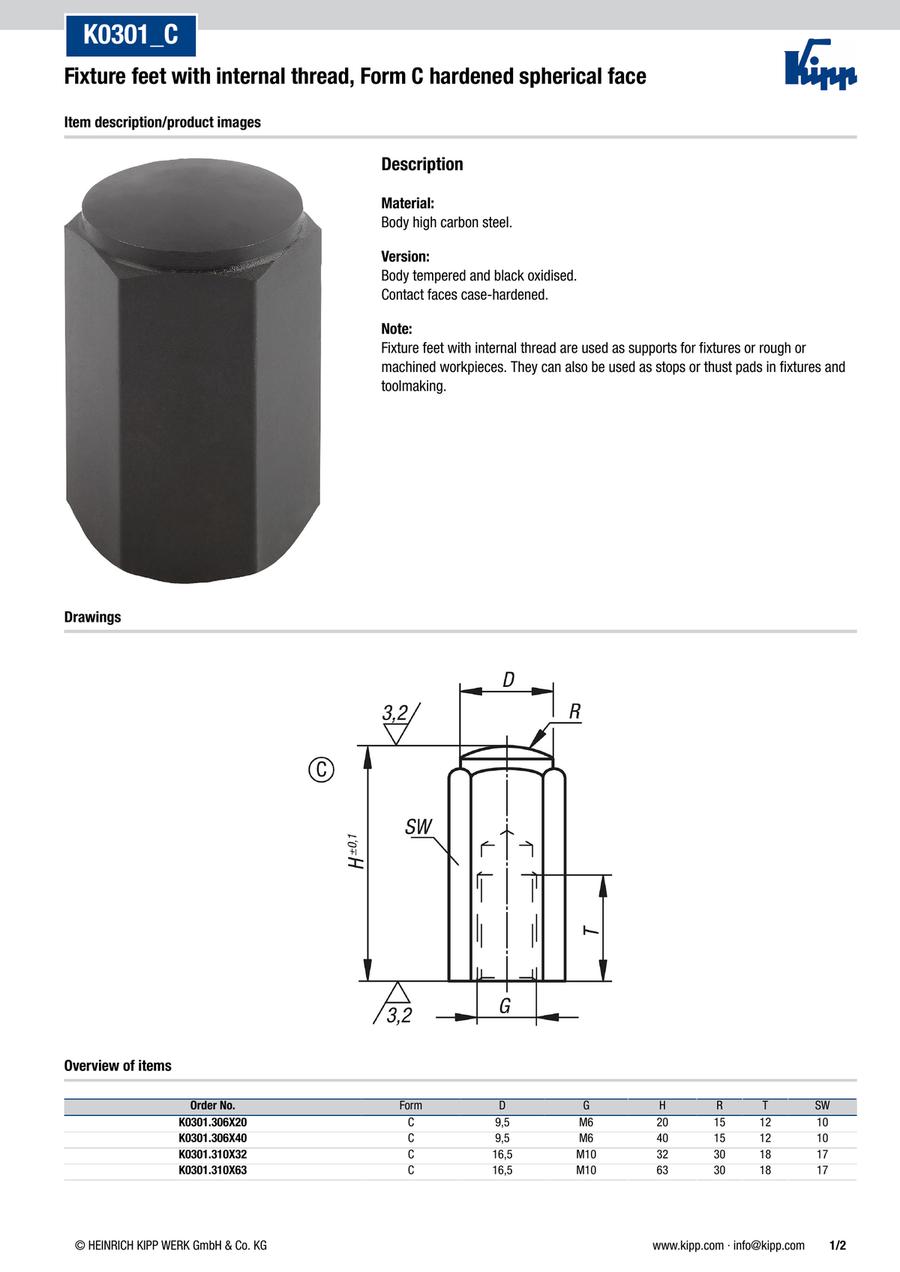

Fixture feet with internal thread, Form C hardened spherical face (K0301)
· Application sectors: machine and fixture construction, toolmaking
· For supporting workpieces and fixtures
· Case-hardened support surfaces
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0301.306X20 |
| K0301.306X40 |
| K0301.310X32 |
| K0301.310X63 |
| K0301.312X32 |
| K0301.312X63 |
| K0301.316X50 |
| K0301.316X100 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D (mm) | G=Thread | H=Height (mm) | R (mm) | SW=key width (mm) | T=thread depth (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|
13.36 € | 1 | 4 Days | 9.5 | M6 | 20 | 15 | 10 | 12 | ||
13.17 € | 1 | 4 Days | 9.5 | M6 | 40 | 15 | 10 | 12 | ||
11.09 € | 1 | 4 Days | 16.5 | M10 | 32 | 30 | 17 | 18 | ||
11.80 € | 1 | 4 Days | 16.5 | M10 | 63 | 30 | 17 | 18 | ||
15.42 € | 1 | 4 Days | 18.5 | M12 | 32 | 35 | 19 | 18 | ||
15.78 € | 1 | 4 Days | 18.5 | M12 | 63 | 35 | 19 | 18 | ||
24.23 € | 1 | 4 Days | 23 | M16 | 50 | 40 | 24 | 24 | ||
30.30 € | 1 | 4 Days | 23 | M16 | 100 | 40 | 24 | 24 |
Loading...
Basic information
| Main material | High carbon steel | Surface finish body | tempered, black oxidised | Material (mount surface / support surface) | Steel |
|---|---|---|---|---|---|
| Surface finish component | case-hardened | Form | C |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
