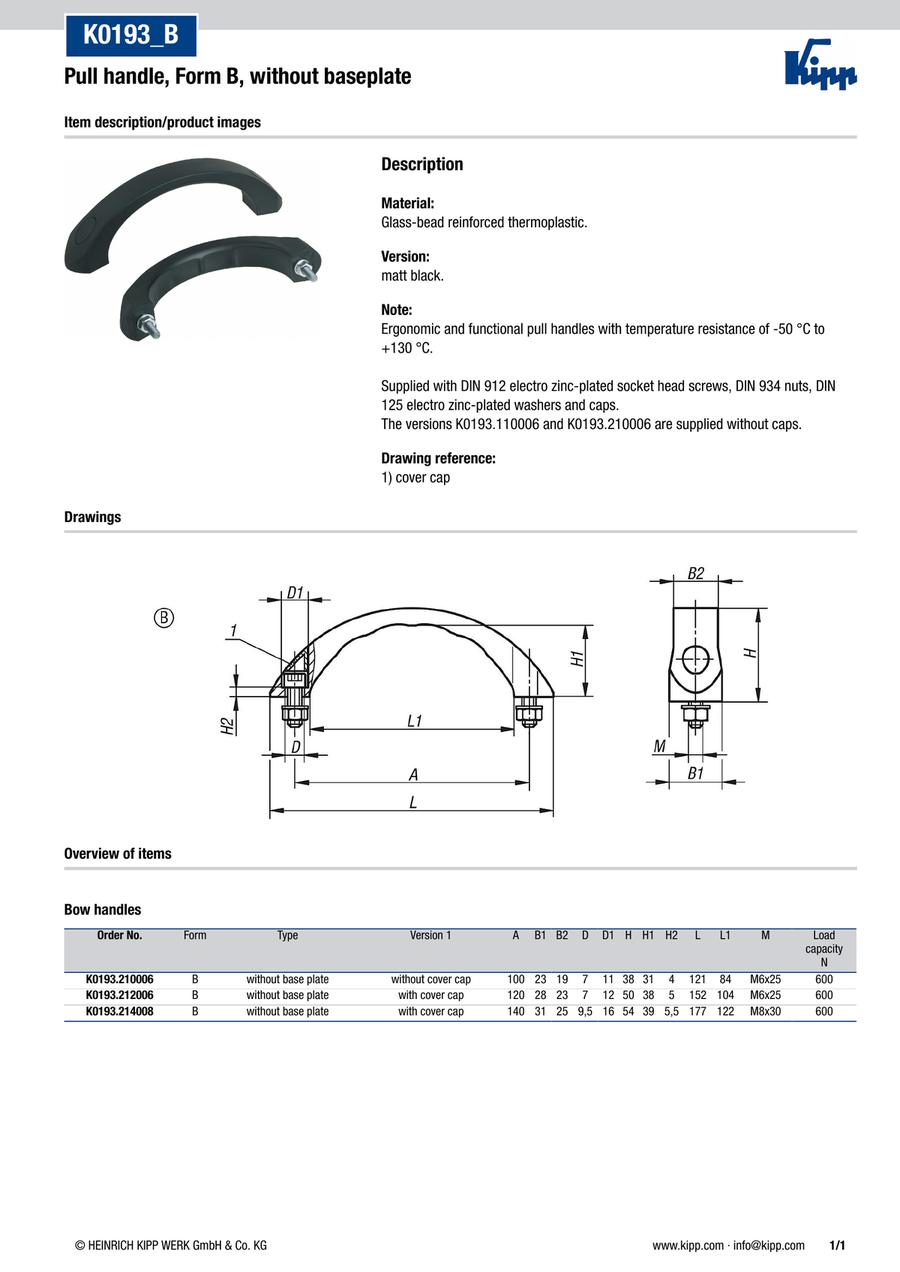

Pull handle, Form B, without baseplate (K0193)
· Retaining element to open and close lids, panels and hoods
· Application fields: machine and plant construction, toolmaking, furniture industry, rehabilitation and medical technology
· Temperature resistance from -50 °C to 130 °C
· Form B: without baseplate
· Mounting: from the front, fastening material included
· Application fields: machine and plant construction, toolmaking, furniture industry, rehabilitation and medical technology
· Temperature resistance from -50 °C to 130 °C
· Form B: without baseplate
· Mounting: from the front, fastening material included
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0193.210006 |
| K0193.212006 |
| K0193.214008 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Hole spacing (mm) | B1 (mm) | B2 (mm) | D (mm) | D1 (mm) | H (mm) | H1 (mm) | H2 (mm) | L (mm) | L1 (mm) | M (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3.29 € | 1 | 4 Days | 100 | 23 | 19 | 7 | 11 | 38 | 31 | 4 | 121 | 84 | M6x25 | ||
6.23 € | 1 | 4 Days | 120 | 28 | 23 | 7 | 12 | 50 | 38 | 5 | 152 | 104 | M6x25 | ||
6.70 € | 1 | 4 Days | 140 | 31 | 25 | 9.5 | 16 | 54 | 39 | 5.5 | 177 | 122 | M8x30 |
Loading...
Basic information
| Main Body Material | Others | Load capacity(N) | 600 | Main material | Thermoplastic |
|---|---|---|---|---|---|
| Form | B | Version | without base plate |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
