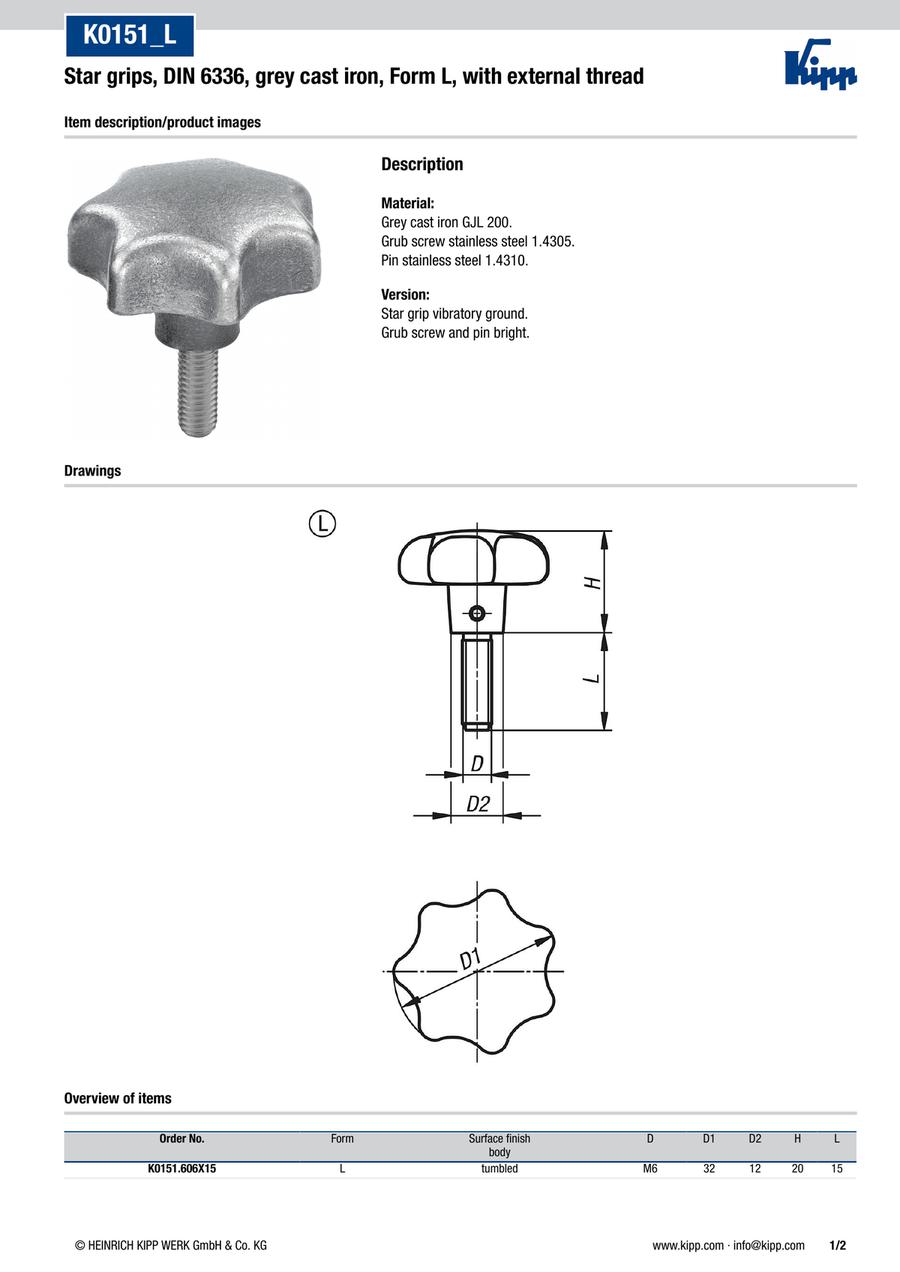

Star grips DIN 6336 grey cast iron, Form L, with external thread (K0151)
· Application fields: machine, plant and fixture construction, toolmaking
· For manually adjusting assemblies, machines and aggregates
· Form L: with external thread
· Version: vibratory ground
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Thread | Outside diameter (φ) | D2 (mm) | H=Height (mm) | L=thread length (mm) | |
|---|---|---|---|---|---|---|---|---|---|
5.95 € | 1 | 4 Days | M6 | 32 | 12 | 20 | 15 | ||
6.80 € | 1 | 4 Days | M6 | 32 | 12 | 20 | 20 | ||
6.90 € | 1 | 4 Days | M6 | 32 | 12 | 20 | 25 | ||
6.97 € | 1 | 4 Days | M6 | 32 | 12 | 20 | 30 | ||
7.75 € | 1 | 4 Days | M8 | 40 | 14 | 25 | 20 | ||
7.85 € | 1 | 4 Days | M8 | 40 | 14 | 25 | 25 | ||
7.94 € | 1 | 4 Days | M8 | 40 | 14 | 25 | 30 | ||
8.05 € | 1 | 4 Days | M8 | 40 | 14 | 25 | 40 | ||
10.41 € | 1 | 4 Days | M10 | 50 | 18 | 32 | 25 | ||
10.49 € | 1 | 4 Days | M10 | 50 | 18 | 32 | 30 | ||
10.66 € | 1 | 4 Days | M10 | 50 | 18 | 32 | 40 | ||
10.84 € | 1 | 4 Days | M10 | 50 | 18 | 32 | 50 | ||
11.85 € | 1 | 4 Days | M12 | 63 | 20 | 40 | 30 | ||
11.93 € | 1 | 4 Days | M12 | 63 | 20 | 40 | 40 | ||
12.02 € | 1 | 4 Days | M12 | 63 | 20 | 40 | 50 | ||
12.21 € | 1 | 4 Days | M12 | 63 | 20 | 40 | 60 |
Loading...
Basic information
| Main Body Material | Other | Main material(mm) | Grey cast iron | Surface finish body(mm) | tumbled |
|---|---|---|---|---|---|
| Component material(mm) | Stainless steel | Form(mm) | L |
Configure
Basic Attributes
-
Thread
-
Outside diameter(φ)
-
D2(mm)
-
H=Height(mm)
-
L=thread length(mm)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
