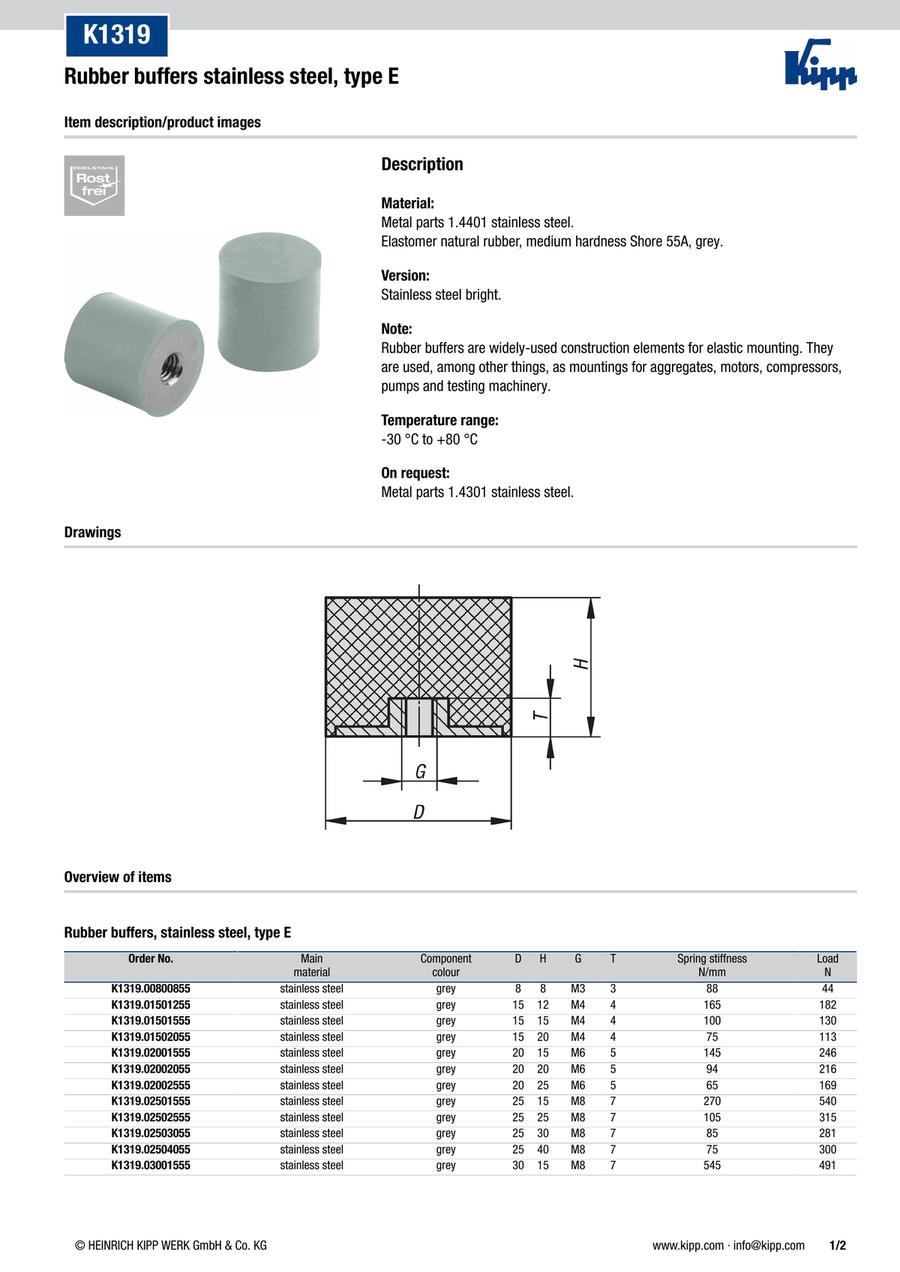

Rubber buffers stainless steel, type E (K1319)
· Application sectors: machine and assembly construction, material handling, foodstuff industry
· Temperature range: -30 °C to +80 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Max. Allowable Load (N) | Connecting Screw M | Height H (mm) | Spring Constant (N/mm) | D=outside diameter (mm) | T=thread depth (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|
3.04 € | 1 | 4 Days | 44 | M3 | 8 | 88 | 8 | 3 | ||
3.39 € | 1 | 4 Days | 182 | M4 | 12 | 165 | 15 | 4 | ||
3.55 € | 1 | 4 Days | 130 | M4 | 15 | 100 | 15 | 4 | ||
3.74 € | 1 | 4 Days | 113 | M4 | 20 | 75 | 15 | 4 | ||
4.22 € | 1 | 4 Days | 246 | M6 | 15 | 145 | 20 | 5 | ||
4.40 € | 1 | 4 Days | 216 | M6 | 20 | 94 | 20 | 5 | ||
4.91 € | 1 | 4 Days | 169 | M6 | 25 | 65 | 20 | 5 | ||
4.40 € | 1 | 4 Days | 540 | M8 | 15 | 270 | 25 | 7 | ||
5.23 € | 1 | 4 Days | 315 | M8 | 25 | 105 | 25 | 7 | ||
5.73 € | 1 | 4 Days | 281 | M8 | 30 | 85 | 25 | 7 | ||
6.95 € | 1 | 4 Days | 300 | M8 | 40 | 75 | 25 | 7 | ||
5.93 € | 1 | 4 Days | 491 | M8 | 15 | 545 | 30 | 7 | ||
7.10 € | 1 | 4 Days | 416 | M8 | 25 | 160 | 30 | 7 | ||
7.98 € | 1 | 4 Days | 425 | M8 | 30 | 125 | 30 | 7 | ||
9.13 € | 1 | 4 Days | 315 | M8 | 40 | 85 | 30 | 7 | ||
8.61 € | 1 | 4 Days | 660 | M8 | 20 | 550 | 40 | 7 | ||
8.97 € | 1 | 4 Days | 1000 | M8 | 25 | 500 | 40 | 7 | ||
9.63 € | 1 | 4 Days | 870 | M8 | 30 | 300 | 40 | 7 | ||
11.18 € | 1 | 4 Days | 1040 | M8 | 40 | 260 | 40 | 7 | ||
11.50 € | 1 | 4 Days | 860 | M10 | 20 | 860 | 50 | 8 | ||
12.86 € | 1 | 4 Days | 1400 | M10 | 25 | 700 | 50 | 8 | ||
14.57 € | 1 | 4 Days | 1575 | M10 | 30 | 450 | 50 | 8 | ||
17.77 € | 1 | 4 Days | 1400 | M10 | 40 | 350 | 50 | 8 | ||
20.79 € | 1 | 4 Days | 850 | M10 | 50 | 170 | 50 | 8 | ||
26.86 € | 1 | 4 Days | 1400 | M10 | 30 | 700 | 60 | 8 | ||
27.89 € | 1 | 4 Days | 1600 | M10 | 40 | 400 | 60 | 8 | ||
29.10 € | 1 | 4 Days | 1200 | M10 | 50 | 240 | 60 | 8 | ||
44.31 € | 1 | 4 Days | 2600 | M10 | 42 | 520 | 70 | 8 | ||
34.66 € | 1 | 4 Days | 3060 | M10 | 45 | 680 | 70 | 8 | ||
26.86 € | 1 | 4 Days | 1816 | M12 | 25 | 1211 | 75 | 10 | ||
29.42 € | 1 | 4 Days | 2289 | M12 | 30 | 1090 | 75 | 10 | ||
34.32 € | 1 | 4 Days | 2000 | M12 | 40 | 500 | 75 | 10 | ||
39.23 € | 1 | 4 Days | 2750 | M12 | 50 | 550 | 75 | 10 |
Loading...
Basic information
| Hardness(Shore A) | 55 | Main material | Stainless steel | Steel code | 1.4401 |
|---|---|---|---|---|---|
| Component material | Elastomer natural rubber | Component colour | grey |
Configure
Basic Attributes
-
Max. Allowable Load(N)
-
Connecting Screw M
- M3
- M4
- M6
- M8
- M10
- M12
-
Height H(mm)
-
Spring Constant(N/mm)
-
D=outside diameter(mm)
-
T=thread depth(mm)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
